Markilux 990 Mounting Instructions

6

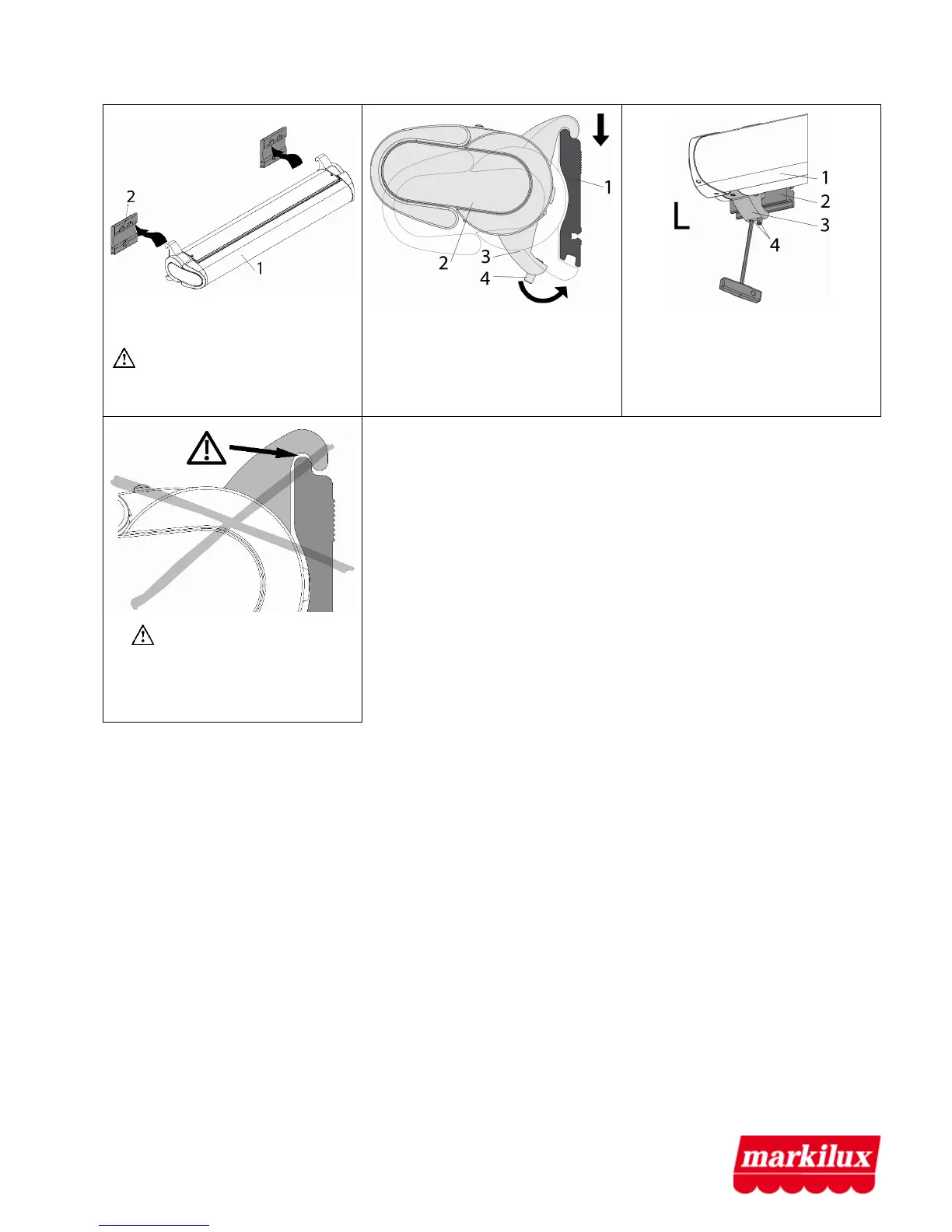

4. Hanging up the awning (e.g. wall fitting)
1. Lay the awning (1) on the wall
bracket (2).
Attention!: Awning has to be
retracted completely (delivery
state)!
2. Hang the awning (1) in such a
way into the wall brackets (2) that
the consoles (3) lie flush at the
top on the wall brackets and the
threaded pins SW 5 (4) can be
screwed in.
3. Always tighten first the two
threaded pins SW 5 (4) of the left
console and then the ones of the
right console!
L Left
4. Attention!: When tightening
the threaded pins, no gap must
form at the top in the connection
area between console and
bracket (see drawing)!
