7 Replacement of a faulty illuminant for lighting
These instructions for the replacement of defective illuminants at your markilux folding-arm awning is to be read and observed.
Exclusively LED lights, which have a very long service life are used for the lighting of your markilux MX-1 and MX-1 compact.
If the LED ambient lighting and LED line are defective, please contact your specialist dealer.
If an LED-Spot is defective you can change it yourself.
Regularly check the awning for signs of wear and damage to cables and lamps. If damages occur, an authorised markilux
specialist dealer is to be entrusted with the adjustment.
Awnings which need to be fixed must not be used. Only spare parts released by markilux may be used.
Electrical installation or repairs must be carried out according to the installation specifications
DIN VDE 0100 by a qualified electrician only.
The lighting system must be disconnected from the electricity supply during work on the system (unplug, switch o fuse).
Switch on the lighting only when all cable connections have been established completely.
7.1 Overview spare parts lighting LED-Spots
The following replacement parts are available via your markilux specialist dealer:
chapter Lighting type Article no.
7.2 1 piece LED-Spot with plug in the front canopy (top and bottom) 721581
7.3 1 piece LED spotlight with plug in the front profile 714701
7.2 LED-Spots in the cassette (bottom)
1
2
31
721581
1

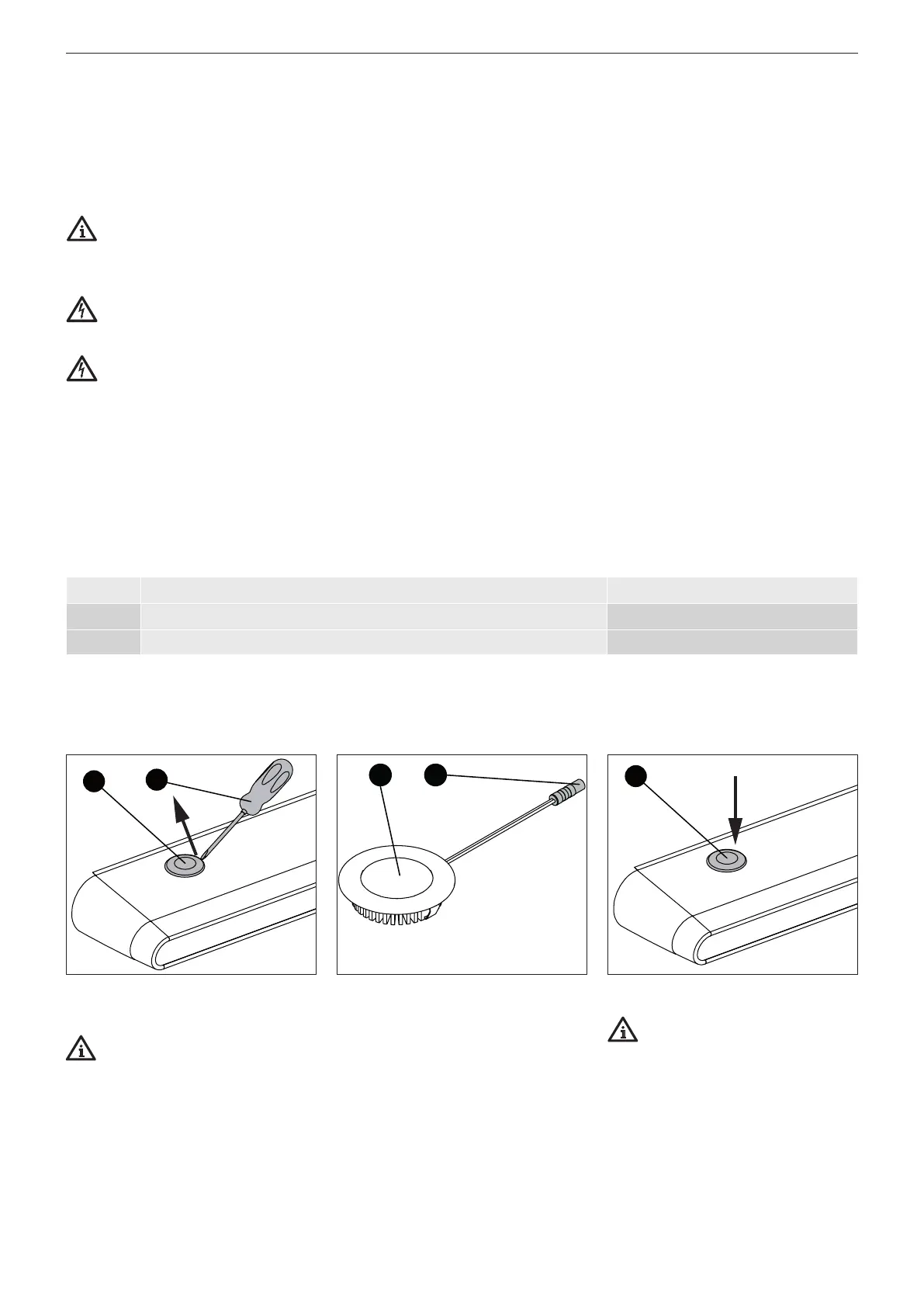

1. Carefully pry open the cover of the
spot lights (1) using an appropriate tool
(2).
The surface of the canopy can get
scratched if handled incorrectly.
2. Disconnect the plug (3) of the
defective spot light from the mains and
plug in the new spot light.
Article no. new LED spot light with plug:
721581
3. Replace the cover (1) of the spot light
and seal watertight using a sealant.
The cover must be sealed
watertight. Penetrating rain water may
damage the awning.
