Marklin Digital 66955 - Work with Two MS2

21

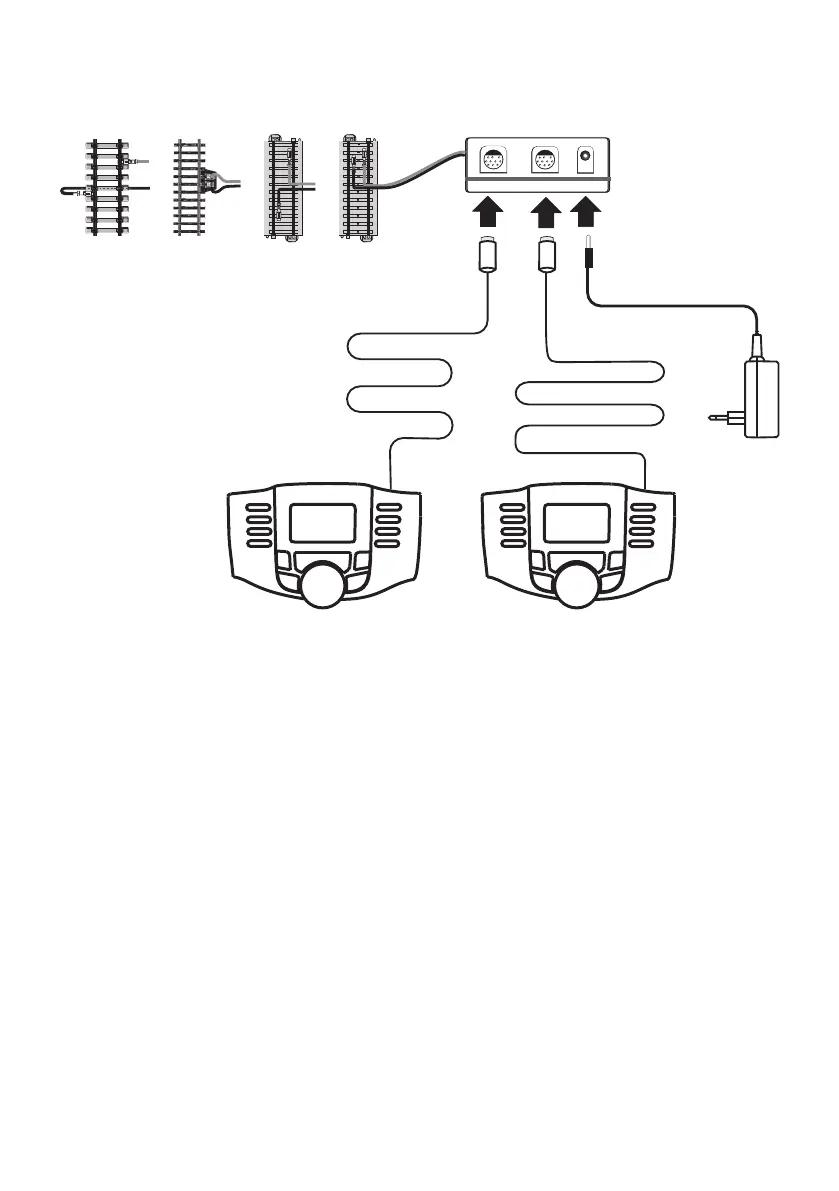

A maximum of 2 MS2 can be connected to the track box. The “Master”-MS2 is recognized
automatically. The other MS2 is then automatically set as the “Slave”.
Entering, recognizing, and programming a locomotive are only done with the “Master”-
MS2. The MS2 „Slave“ unit takes over all locomotives from the MS2 „Master“ unit.
Work with two MS2
B
!Only one Track
Box may be con-
nected to a layout.
HO
N
1
G
Gauge
Märklin
K Track
Trix
C Track
B
0
B
0
0
B
0
Märklin
C Track
60653/60657
66950/66955
(version 3.55
or higher)
DC 18V /
max. 36VA
