Description Wire Color
NEM Märklin
Motor Connection 2 gray blue
Conductor Current Pickup, Track, Left
(DC) Outer (AC)
black brown
Front Lights white gray
Aux 1 (physical output) green brown/red
Common Wire for Lights /Aux 1 - 4 blue orange
Rear Lights yellow yellow
Conductor Current Pickup,
Track, Right (DC) Center (AC)
red red
Motor Connection 1 orange green
Aux 2 (physical output) violet
brown/green
Aux 3 (physical output)
brown/yellow
Aux 4 (physical output)
brown/white

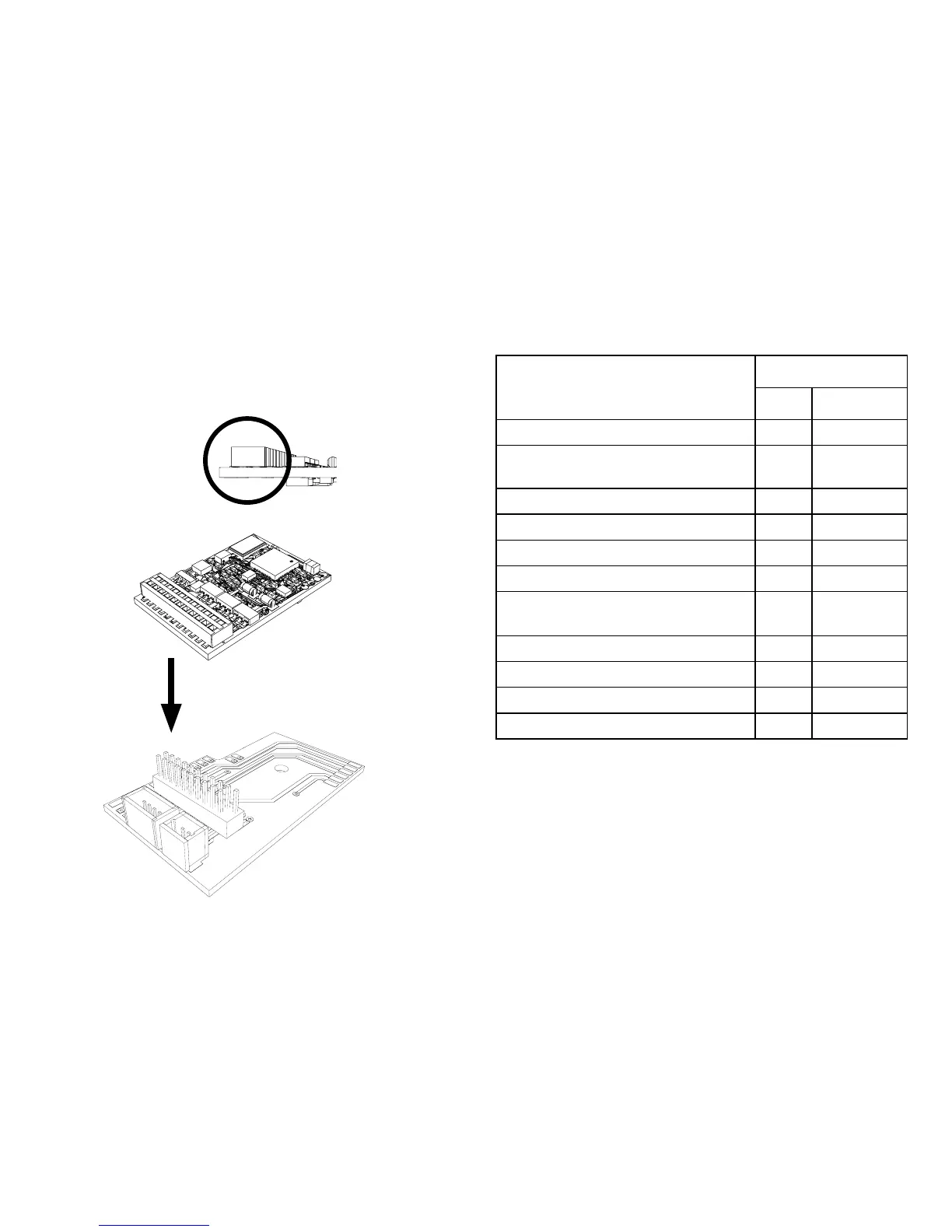

Cross Referencing the Colors for the Wires
Insert the plug into the connector while paying attention to the
positioning. Place the model, without body, on the programming
track and test it. If the decoder works with no problems, the body
can be put on the locomotive.
!
