30

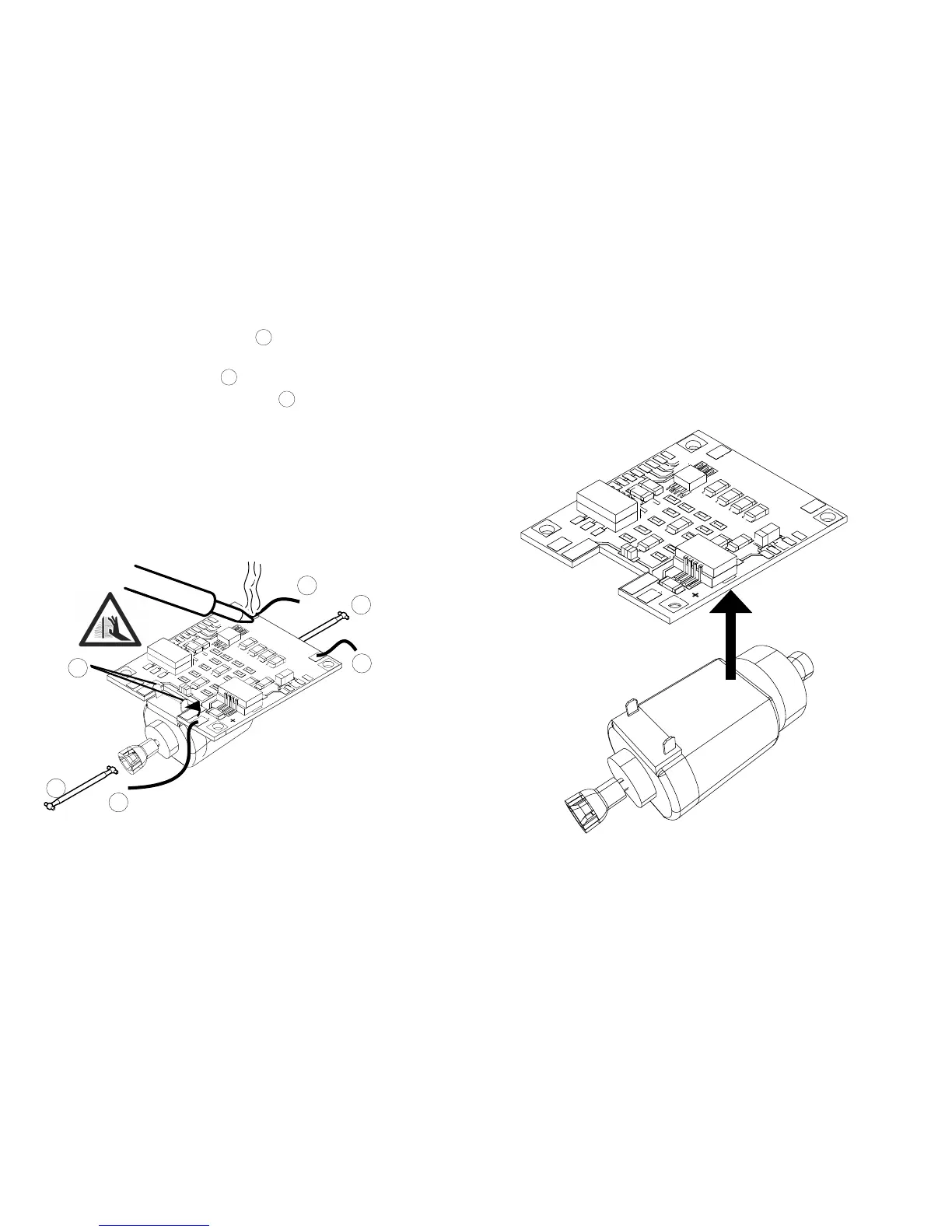

Loosen the motor from the circuit board.
Dispose of the circuit board; see note on page 50
.
R
BR
BR
Remove the two cardan shafts and place them off to the
side for reassembling the locomotive later.
Unsolder the three wires from the circuit board.
Carefully unsolder the two solder tabs for the motor
from the circuit board.
Warning! There is a danger of burning yourself!
Carefully bend the solder tabs up with a pair of tweezers.
1
1
2
2
3
1
3
R = red
BR = brown
2
2
