maintenance
slightly with the hoist to remove the weight from the motor fasteners, then
loosen and remove motor fasteners.
If the motor is removed from the mounting plate, it should be reinstalled at the
torques specified—do not lubricate the bolts.
Cold Water Basin Access / Air Inlet Louver Removal:
Some maintenance procedures require access to components located in the
cold water collection basin. All maintenance procedures can be performed
from the perimeter of the tower therefore there is no reason to enter basin.

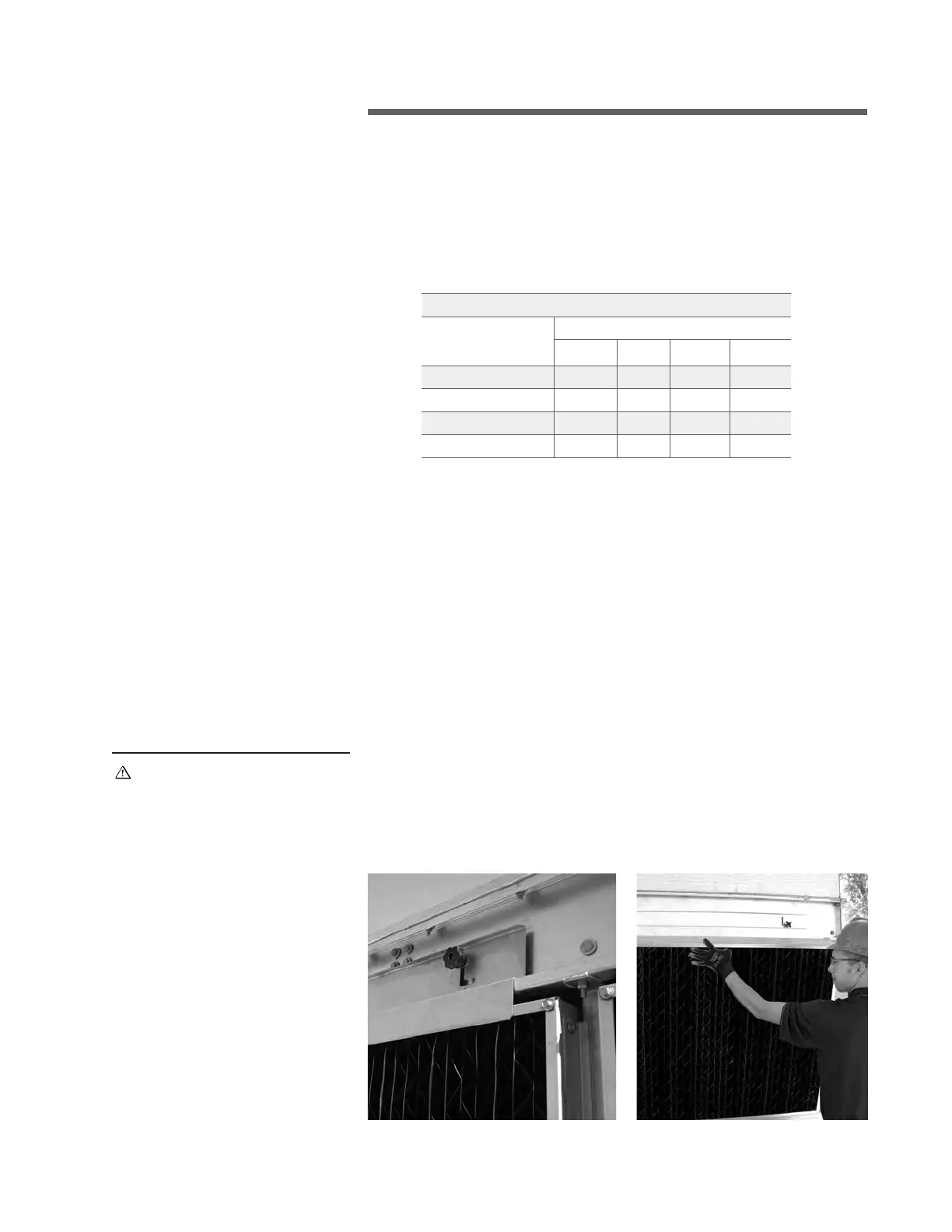

To access the basin, one of the air inlet louver frames must be removed. To
remove, loosen the thumbscrews indicated in the image below and push the
louver retaining bracket up and to the left to move out of the way of the louver
frame. Tip the top of the frame out from the tower, then remove. Louver frames
are not the same size, if more than one louver frame is removed, the original
location should be noted.
Collection basin floor has uneven surfaces and has the potential to
be slippery. Care should be taken if entering the basin.
Louver edges can be very sharp and could cut skin if proper protec-
tion is not used. Always wear gloves and sleeves when handling
louver packs.
Caution
Motor Mounting Bolt Torque
Machine Bolt
Size
Galvanized Stainless
ft·lb
ƒ
N·m ft·lb
ƒ
N·m
10mm 15 20 30 40
12mm 25 35 50 65
16mm 65 85 120 160
20mm 125 170 230 315
