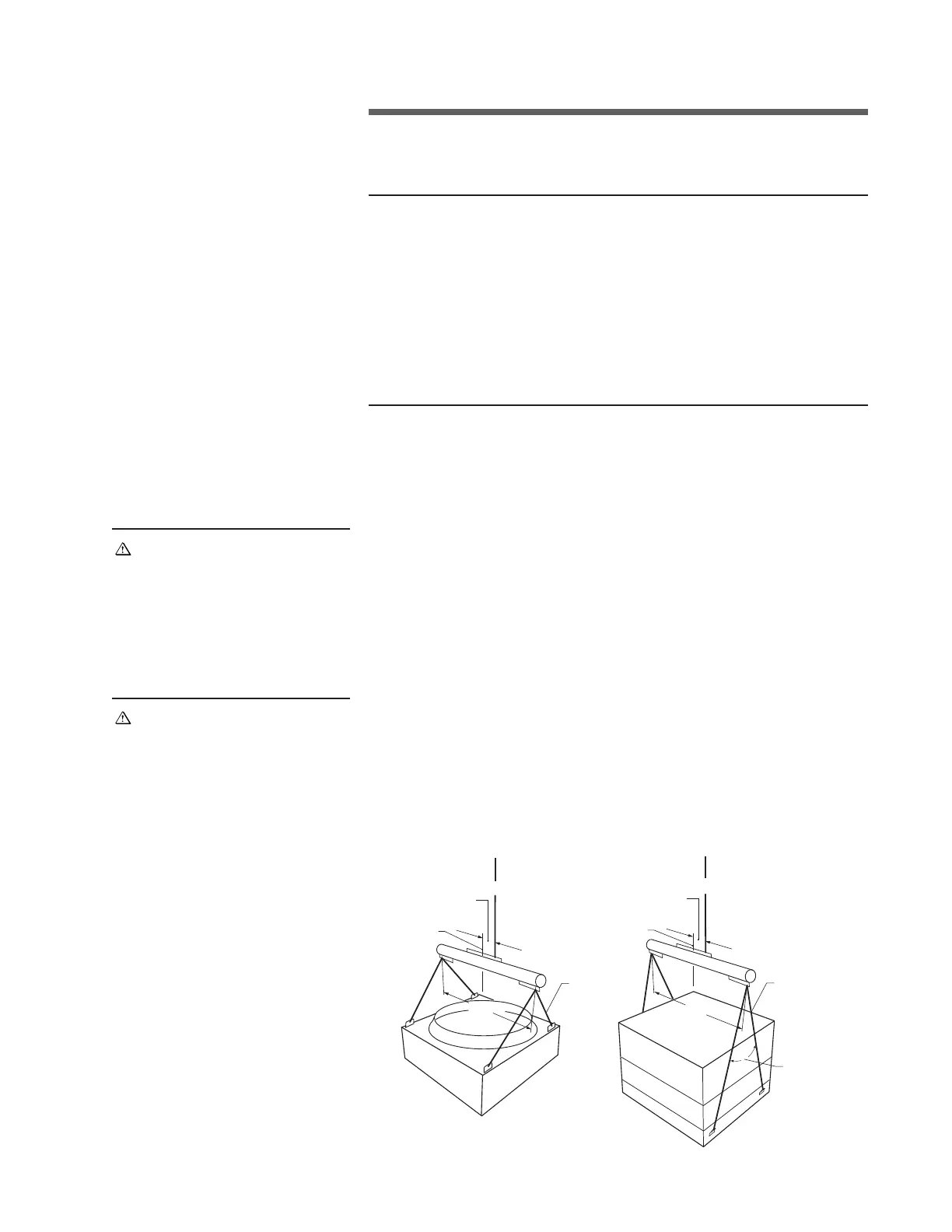

Marley MD5016 - Receiving and Hoisting Procedures; Receiving Tower Upon Arrival; Hoisting Tower Modules Safely

5
OFFSET MAY BE REQUIRED
FOR BALANCED LIFT
CENTER OF
TOWER
CENTER OF
TOWER
WIDTH
WIDTH
LIFTING
SLING
LIFTING
SLING
70° MAX
BOTH MODULES
OFFSET MAY BE REQUIRED
FOR BALANCED LIFT
Receiving Tower
Prior to unloading the tower from the delivering carrier, inspect the shipment
for evidence of damage in transit. If damage is apparent, note the freight bill
accordingly. This will support your future recovery claim.
Find and remove the installation instruction drawings and bills of material
located in a plastic container in the cold water basin. This information should
be kept for future reference and maintenance purposes.
Hoisting Tower
All models consist of two modules per cell. Both modules have hoisting clips.
Detailed hoisting drawing are included in the literature package.
MD upper and lower modules must be hoisted and set separately.
Do not preassemble modules prior to hoisting.
A Hoisting-Installation label which has hoisting dimensional information is
located on the side casing of the tower modules. Remove tower from the car-
rier and hoist into place according to the instructions on the label.
Hoisting clips are provided for ease of unloading and positioning
tower. For overhead lifts or where additional safety is required,
safety slings should also be placed under the tower. Under no
circumstances should you combine the top and bottom modules
of modular models and attempt to hoist them at the same time by
utilizing the hoisting clips alone!
Caution
Warning
receiving and hoisting
