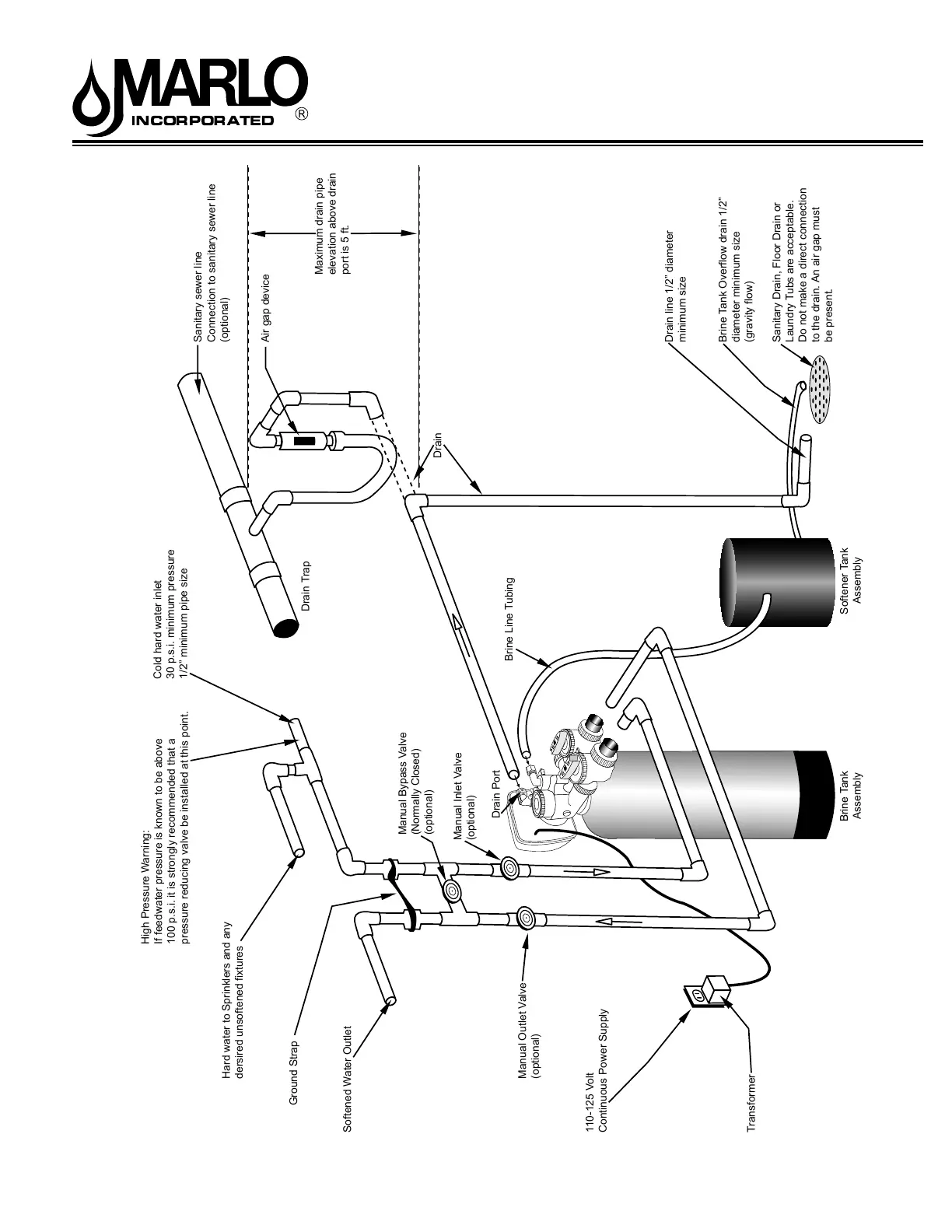

Brine Tank
Assembly
Softener Tank
Assembly
Sanitary Drain, Floor Drain or
Laundry Tubs are acceptable.
Do not make a direct connection
to the drain. An air gap must
be present.
Brine Tank Overflow drain 1/2”
diameter minimum size
(gravity flow)
Cold hard water inlet
30 p.s.i. minimum pressure
1/2” minimum pipe size
Maximum drain pipe
elevation above drain
port is 5 ft.
High Pressure Warning:
If feedwater pressure is known to be above
100 p.s.i. it is strongly recommended that a
pressure reducing valve be installed at this point.
Hard water to Sprinklers and any
dersired unsoftened fixtures
Ground Strap
Softened Water Outlet
Manual Outlet Valve
(optional)
Brine Line Tubing
110-125 Volt
Continuous Power Supply
Transformer
Manual Bypass Valve
(Normally Closed)
(optional)
Manual Inlet Valve
(optional)
Drain Port
Drain line 1/2” diameter
minimum size
Connection to sanitary sewer line
(optional)
Air gap device
Sanitary sewer line
Drain Trap
Drain
