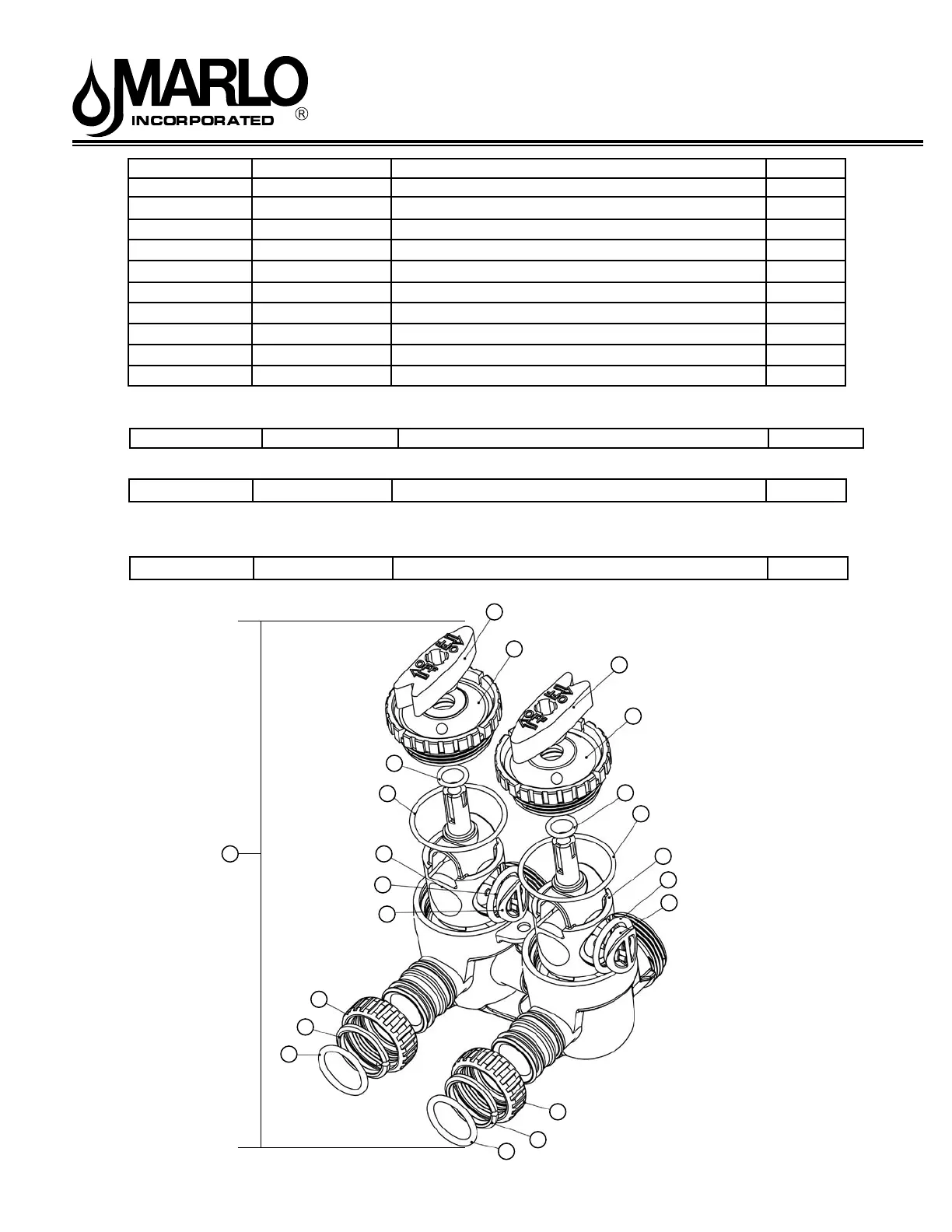

Marlo Incorporated CMP Series - Complete Assembly

17
(Not Shown) Description Bypass Vertical Adapter Assembly
Item No. Part No. Description Quantity
41 V3151 Nut 1” Quick Connect 2
42 V3150 Split Ring 2
43 V3105 O-Ring 215 (Kit available - see Item #10) 2
44 V3145 Bypass 1” Rotor 2
45 V3146 Bypass Cap 2
46 V3147 Bypass Handle 2
47 V3148 Bypass Rotor Seal Retainer 2
48 V3152 O-Ring 135 (use Bypass Valve Kit) 2
49 V3155 O-Ring 112 (use Bypass Valve Kit) 2
50 V3156 O-Ring 214 (use Bypass Valve Kit) 2
52 KIT O-ring Bypass (Incl. 2 ea. of items 43,48,49,& 50) 1 per valve
Bypass Valve O-ring Kit






Part of Kit, O-ring By-Pass(Item 52)
51 KIT O-ring (contains 1 each of 3, 6, 15, 17, 26, & 33) 1 per valve
Valve O-ring Kit

8-198 R1
53 A23540231 Bypass Valve Complete / Less Connectors 1 per valve
Complete Assembly
46
45
46
5
49
48
44
50
47
41
42
43
41
42
43
47
50
44
48
49








53
