37
INSTALLATION

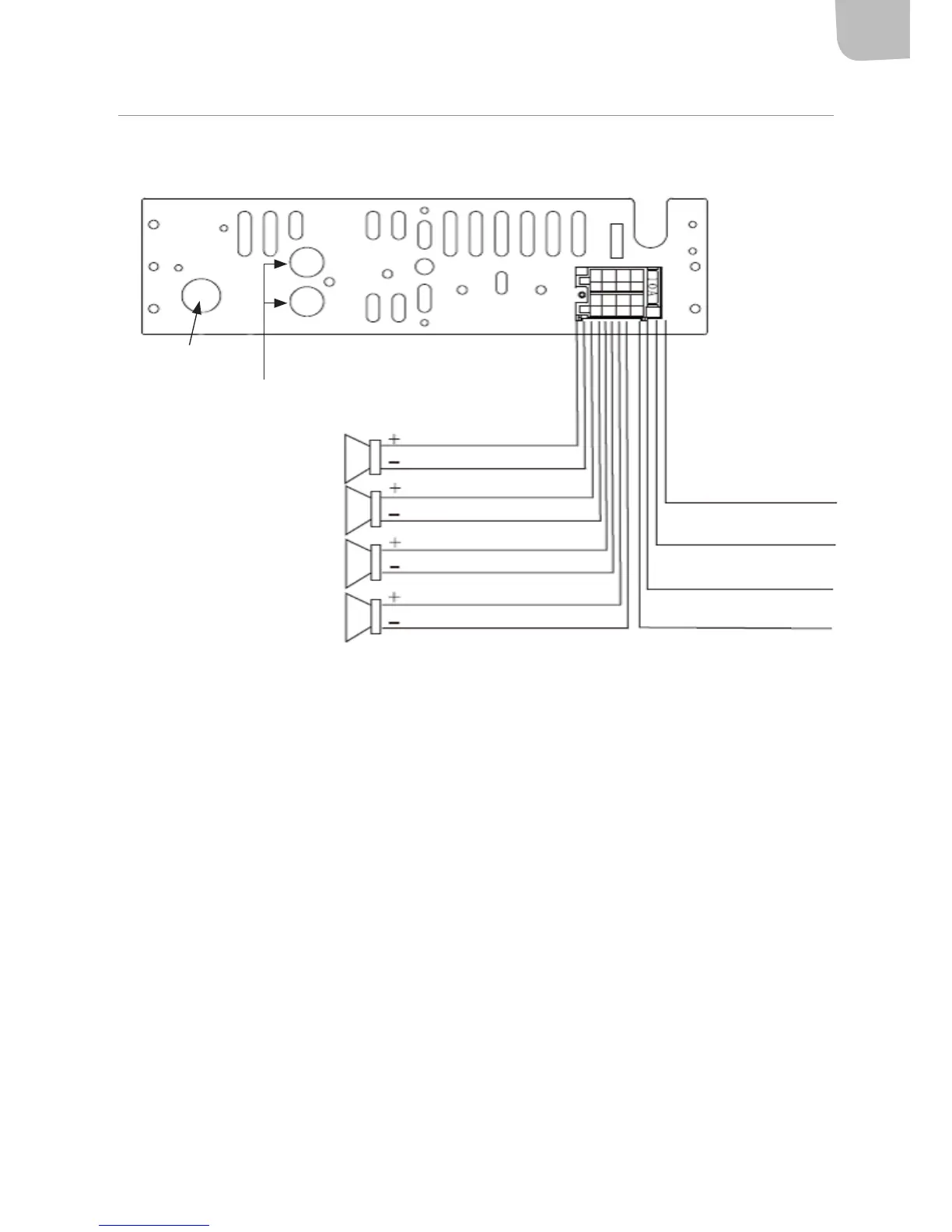

WIRING DIAGRAM
1. This car stereo may only be connected to a 12 V system with negative earth.
2. In order to avoid a short circuit, completely disconnect the car battery when tting the stereo.
3. Please note that the yellow cable must be connected to either the positive contact (+) or the
battery terminal (BAT).
4. Check the fuse. The car stereo and car must use the same type of fuses.
5. Good quality speakers (4-8 ohm) are required in order to achieve a good sound.
Speaker, right rear
Aerial socket
Sound output
Green
Earth (black)
Aerial lamp (blue/white)
Power cable, 12 V
(yellow)
ACC, 12 V (red)
Black/blue
Grey
Grey/black
White
White/black
Green
Green/black
White (L)
Red (R)
Speaker, right front
Speaker, left front
Speaker, left back
