Assembly Instructions
Step 1
Step 2

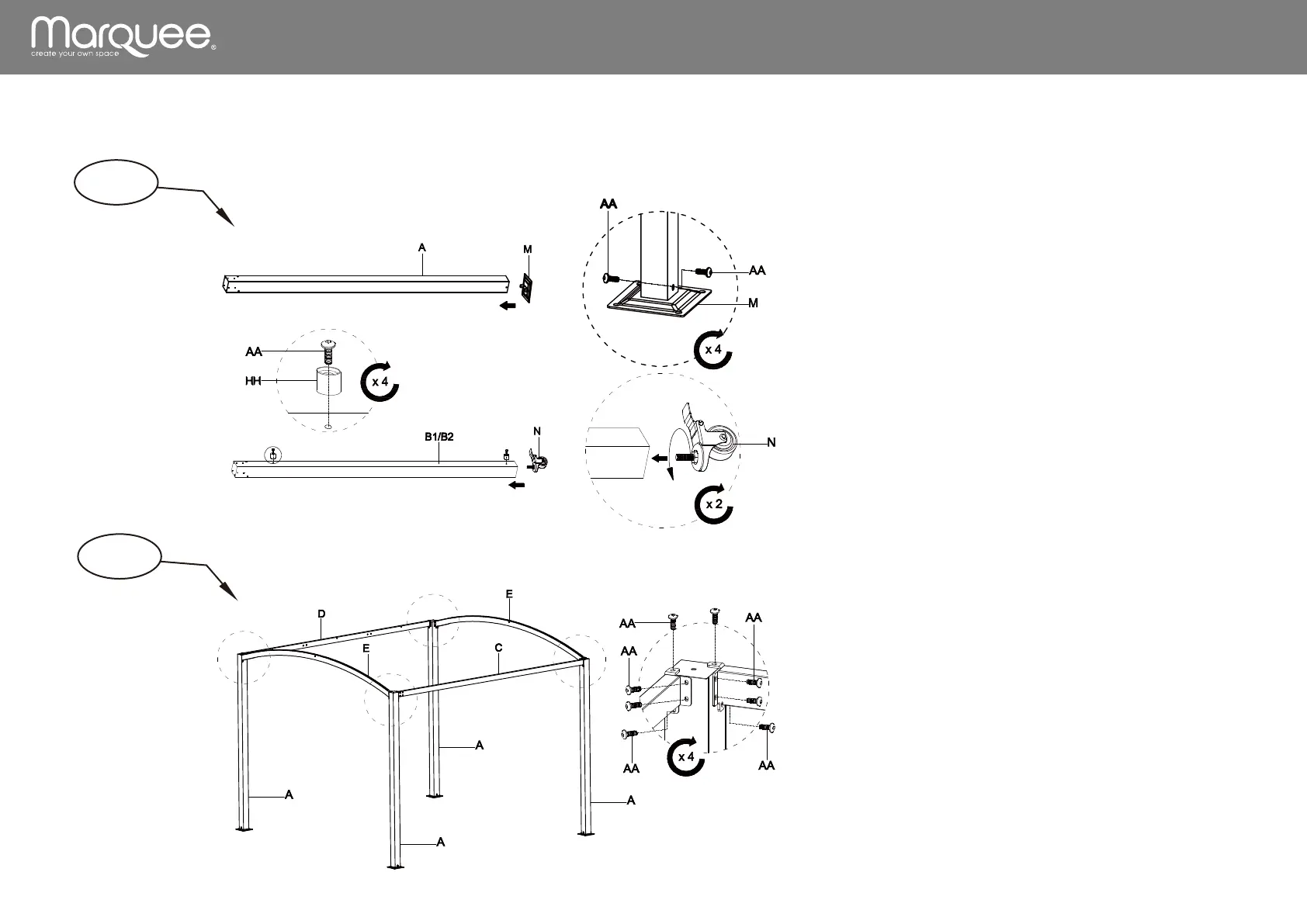

Step 1:
Attach the base plates (M) to the two leg
poles(A). Secure using screws (AA). Then
insert screws (AA) and plastic washer (HH)
into the leg pole (B1/B2) as pictured. The
wheels (N) can then be added to the base
of the leg poles (B1/B2).
Step 2:
Use screws (AA) to connect two leg poles
(A) with the top pole (D). Then connect
each top pole(E) to the assembled frame (D
& A), using screws (AA). You will now need
two people to hold the frame while you
attach the other leg poles (A) to the other
end of the top poles (E). Secure these
using screws (AA).Then connect the top
pole(C) to the assembled frame with
screws (AA).
4
