Installation Manual - A-VMH18DU,28TU,36QU,48PU-1

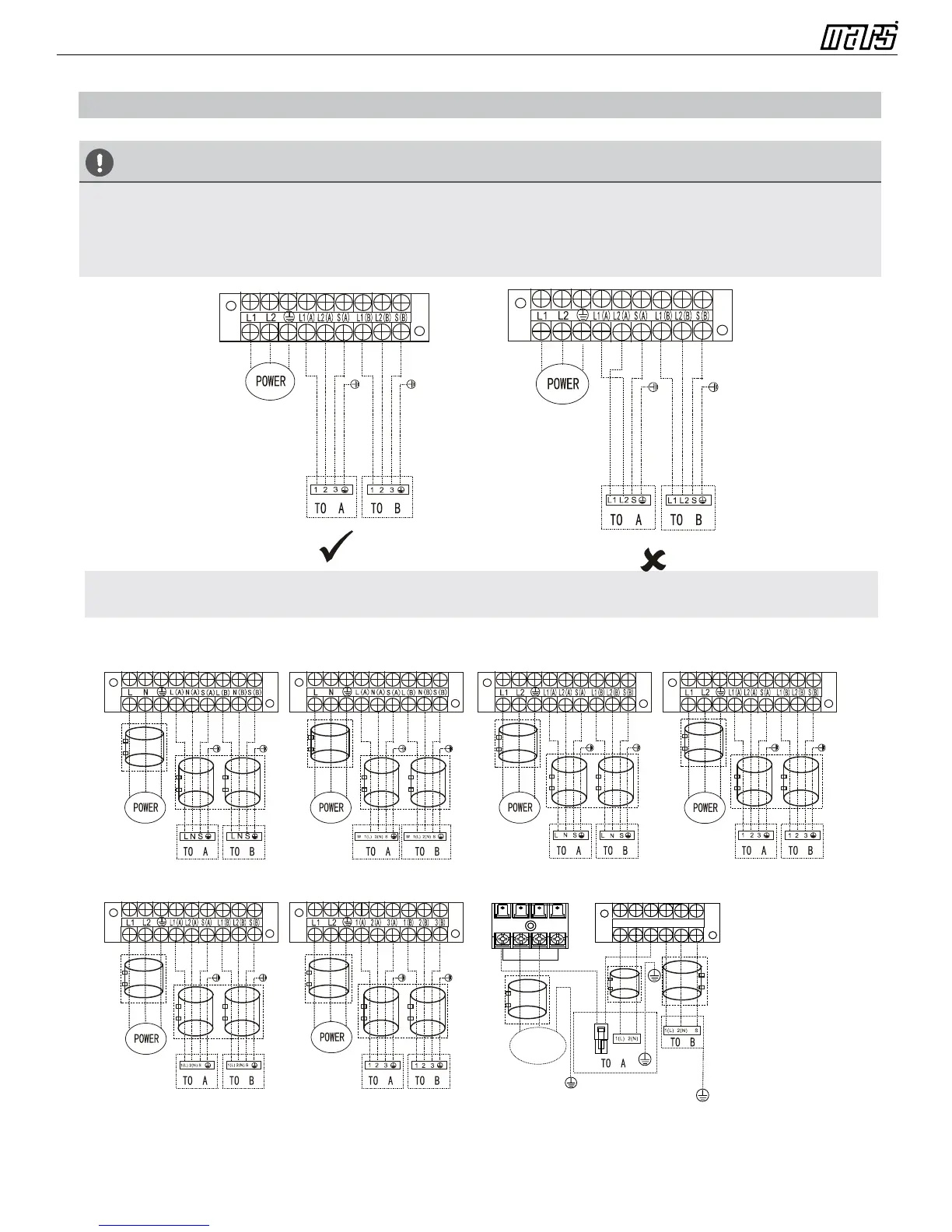

Wiring Figure

One-two models:

POWER

SUPPLY

L(A)

S(A)

N(A)

L(B)

N(B)

S(B)

Y/G

L(1)

NOTE: Refer to the following gures if end-users wish to perform their own wiring.

Run the main power cord through the lower line-outlet of the cord clamp.

CAUTION

Connect the connective cables to the terminals, as identied, with their matching numbers on the

terminal block of the indoor and outdoor units. For example, in the US models shown in the

following diagram, Terminal L1(A) of the outdoor unit must connect with terminal L1 on the

indoor unit.

Model A

Model E Model F Model G

Model B Model C Model D

OPTIONAL
