Owner’s Manual - CMA12-48SD
7
OUTDOOR UNIT INSTALLATION continued

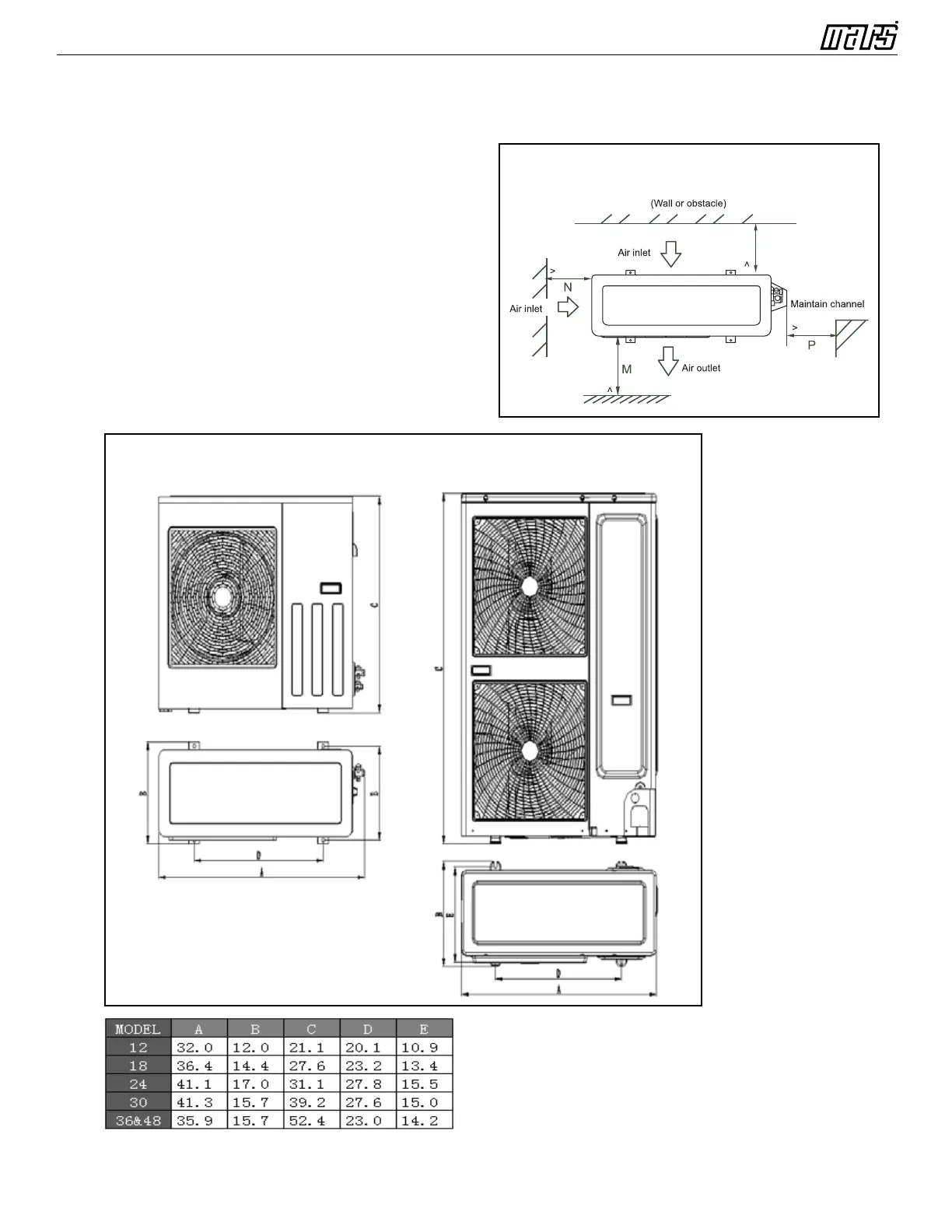

Clearances
1. Ensure that there is sufcient clearance
around the unit for installation and maintenance.
Clearance must be maintained to ensure that the
air inlets and outlets are not obstructed.
[See Fig. 4].
Anchor the outdoor unit with a 10mm (3/8 inch)
diameter bolt and nut tightly on a concrete or
rigid surface [See Fig. 5].
Anchoring is especially
recommended in seaside/high wind applications
and/or areas prone to earthquakes.
LQFK
LQFK
LQFK
LQFKHV
Fig. 4
Fig. 5
1. Split type outdoor unit clearances
1. Split type outdoor unit dimensions
Units in inches
Applicable for 12-30 Applicable for 36-48
To Next Page
