TD2100 PREMIUM Keypad
The Premium keypad offers all the same function as the STANDARD keypad plus it is possible
for you to dispense any length of tape from 5” to 99” in 1” increments. The exception from the
STANDARD keypad is there are 10 preset lengths versus 20. There are two versions of the
PREMIUM keypad, Short and Long. The Long version has longer pre-programmed lengths than
the Short.
To dispense a length of tape 5” to 99” press the NUM LOCK key. The NUM LOCK light is lit
and the 0-9 keys are activated. Just press any two keys to get the desired length. For example,
press 07 for 7” piece of tape or 77 for a 77” piece of tape. These “custom” lengths can be
programmed in the REPEAT SHORT or REPEAT LONG keys by turning on the NUM LOCK,
press PROGRAM, press two keys of desired length and then desired REPEAT key to store
value. You must turn off the NUM LOCK mode to verify the length is stored and
displayed.
Num Lock Key: When pressed this key will
activate the red numbers.
Num Lock Key Indicator: When lit, the NUM
LOCK is activated and the red numbers are used,
when not lit, black number are used.
Number Keys: When pressed will dispense the
length of tape in black, when num lock is on will
give the red numbers for dispensing or programming,
requires 2 key strokes for custom lengths.
Program Key: When pressed will begin the
programming sequence, follow by pressing the
desired length and the location to store it, press the
num lock followed by the corresponding red
numbers to achieve a custom length.
Repeat Long Key: When pressed, this key will
repeat the length that is stored in the long display.
You will use this key for programming.
Repeat Short Key: When pressed, this key will
repeat the length that is stored in the short display.
You will use this key for programming.
Random Key: When pressed will dispense tape until
released.

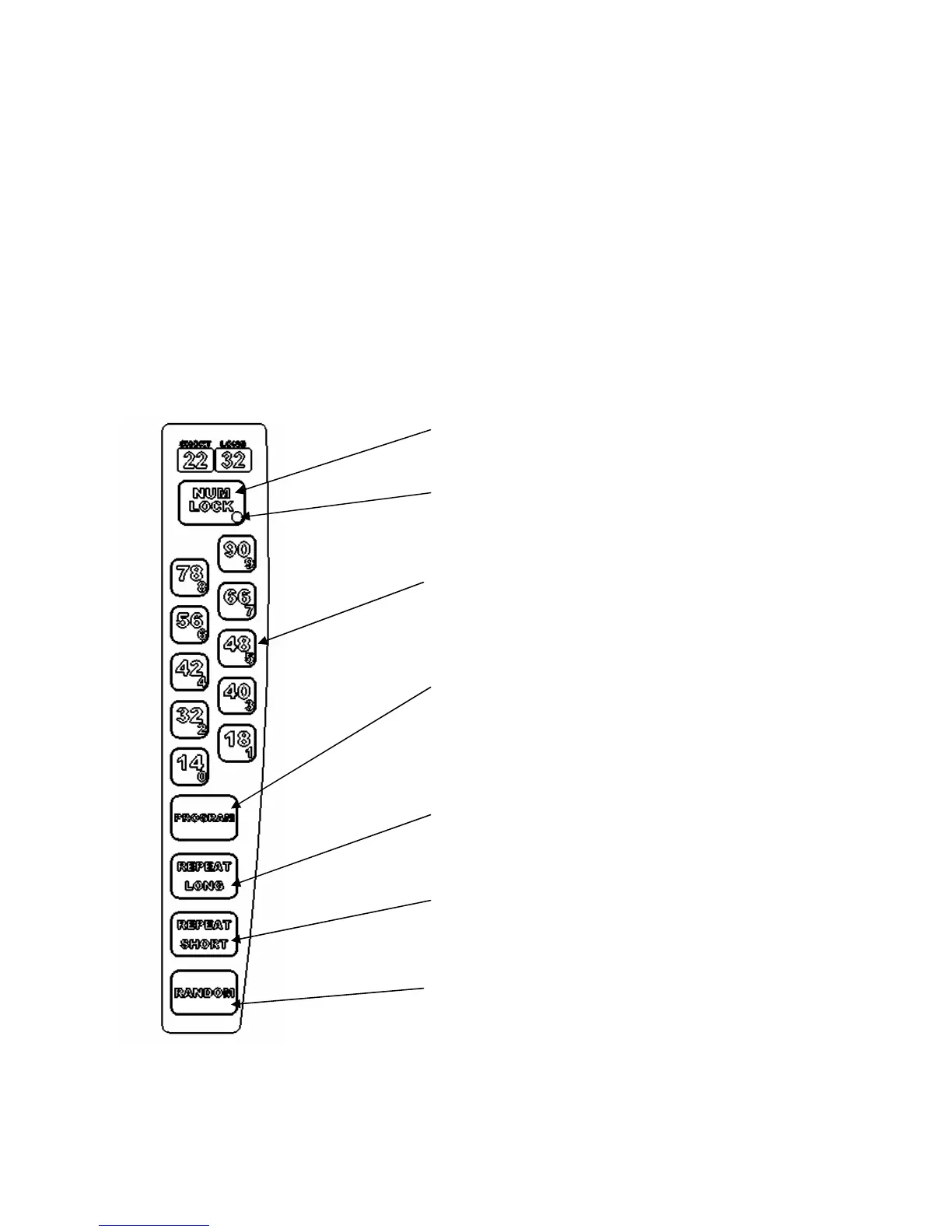

Figure 8 – Premium Long Keypad
