Operating Instructions
Standard Keypad
Pre-Programmed Lengths and SHIFT – There are 20 common lengths of tape pre-
programmed into the memory of your TD2100 automatic tape dispenser. Simply press
one of the ten length keys and the length in black is dispensed. To dispense the lengths
in red press the SHIFT key then press the corresponding length key.
REPEAT SHORT and REPEAT LONG – It is possible to store any of the 20 pre-
programmed lengths into the convenient REPEAT SHORT or REPEAT LONG keys.
To do so, press PROGRAM, the desired length (red lengths require SHIFT key to be
pressed first) and then the REPEAT SHORT or REPEAT LONG your preference.
While in PROGRAM MODE no tape is dispensed, display flashes, and flashing stops
when programming is completed or PROGRAM is pressed to cancel mode.
RANDOM – The RANDOM key allows the user to dispense tape while pressed and the
machine will cut the tape when the RANDOM key is released.
Shift Key: When pressed followed by Number Key a
red length is dispensed.
Number Keys: When pressed will dispense the
length in black, after the shift key has been pressed
will dispense the length in red.
Program Key: When pressed will activate the
program sequence, display will flash, follow this by
the desired length to be stored and the location to
store it in.
Repeat Long Key: When pressed, this key will
repeat the length that is stored in the long display.
You will use this button during programming.
Repeat Short Key: When pressed, this key will
repeat the length that is stored in the short display.
You will use this button during programming.
Random Key: When pressed will dispense tape until
released.

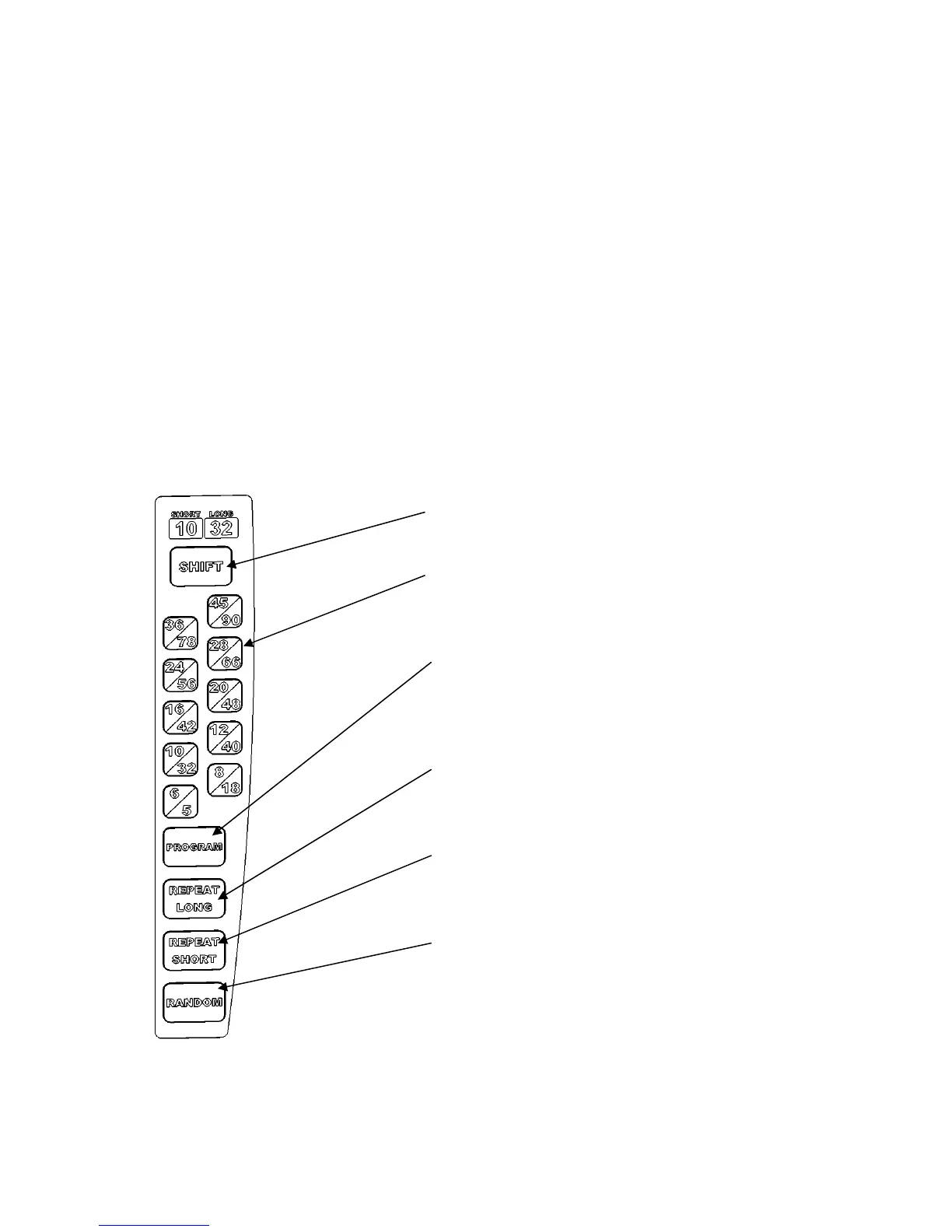

Figure 6 – Standard Keypad
