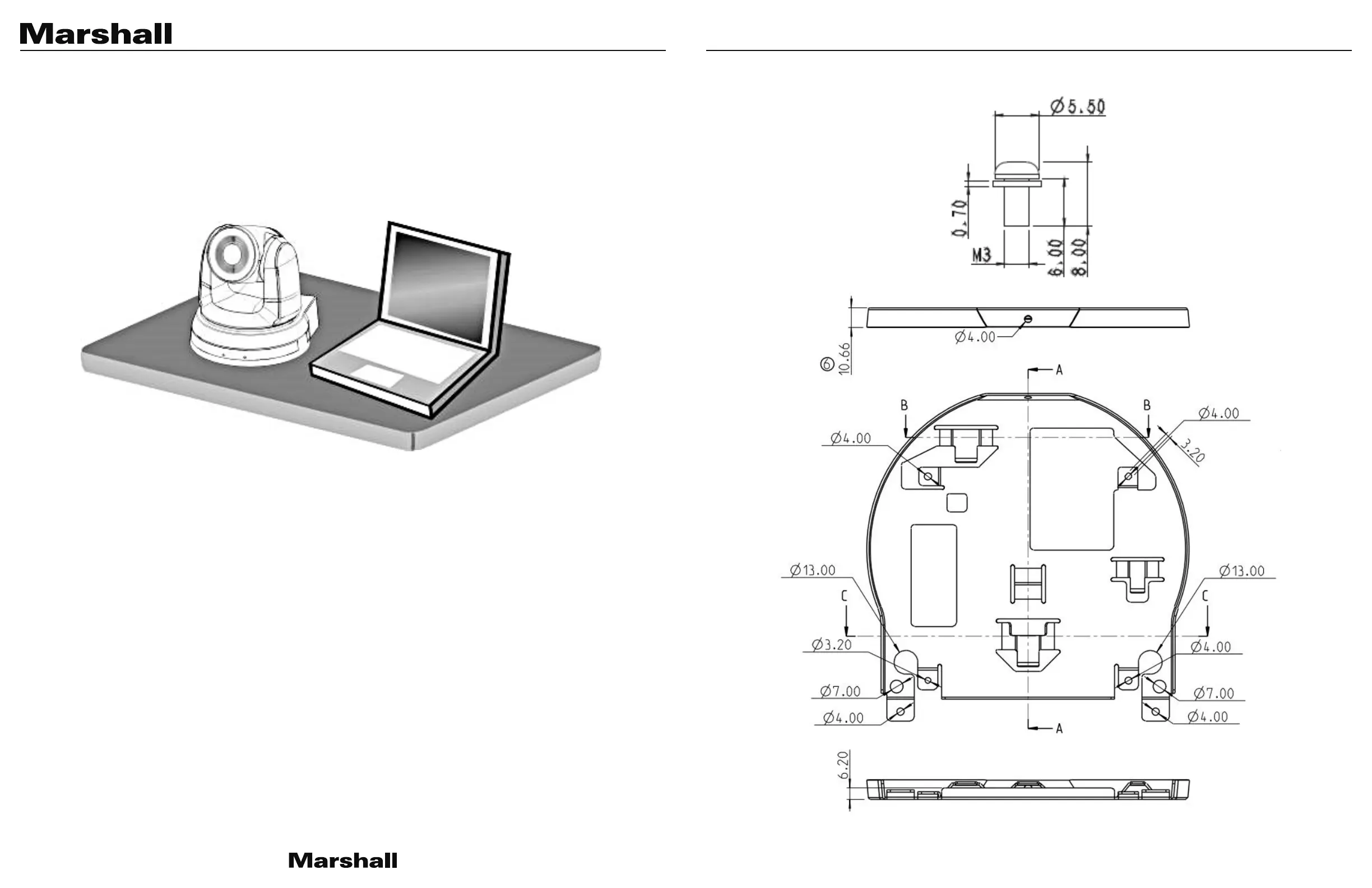

3.4.1.1 Installation Steps
a Adjust DIP switches to the desired settings before installation.
• Refer to Chapter 6 DIP Switch Setting for the relevant descriptions on DIP switches.
a Place the camera on a flat desk directly to ensure the normal vertical and horizontal
operation of the machine.
3.4.2 Installing the camera on the ceiling
3.4.2.1 Prepare for the Ceiling Mount parts and equipment (included in box)
• Accessories included in the box (metal plates A, B, M3 screw silver x 8, black x 2)
• Screws for locking on ceiling mounted hanger x 4
• Drill, screw driver, ladder
3.4.2.2 Metal Plate Size Diagram
• Metal plate A - machine side
Metal plate A locking screw
Metal plate A machine side
