Marshall Amplification CV630-IP User Manual

English - 33

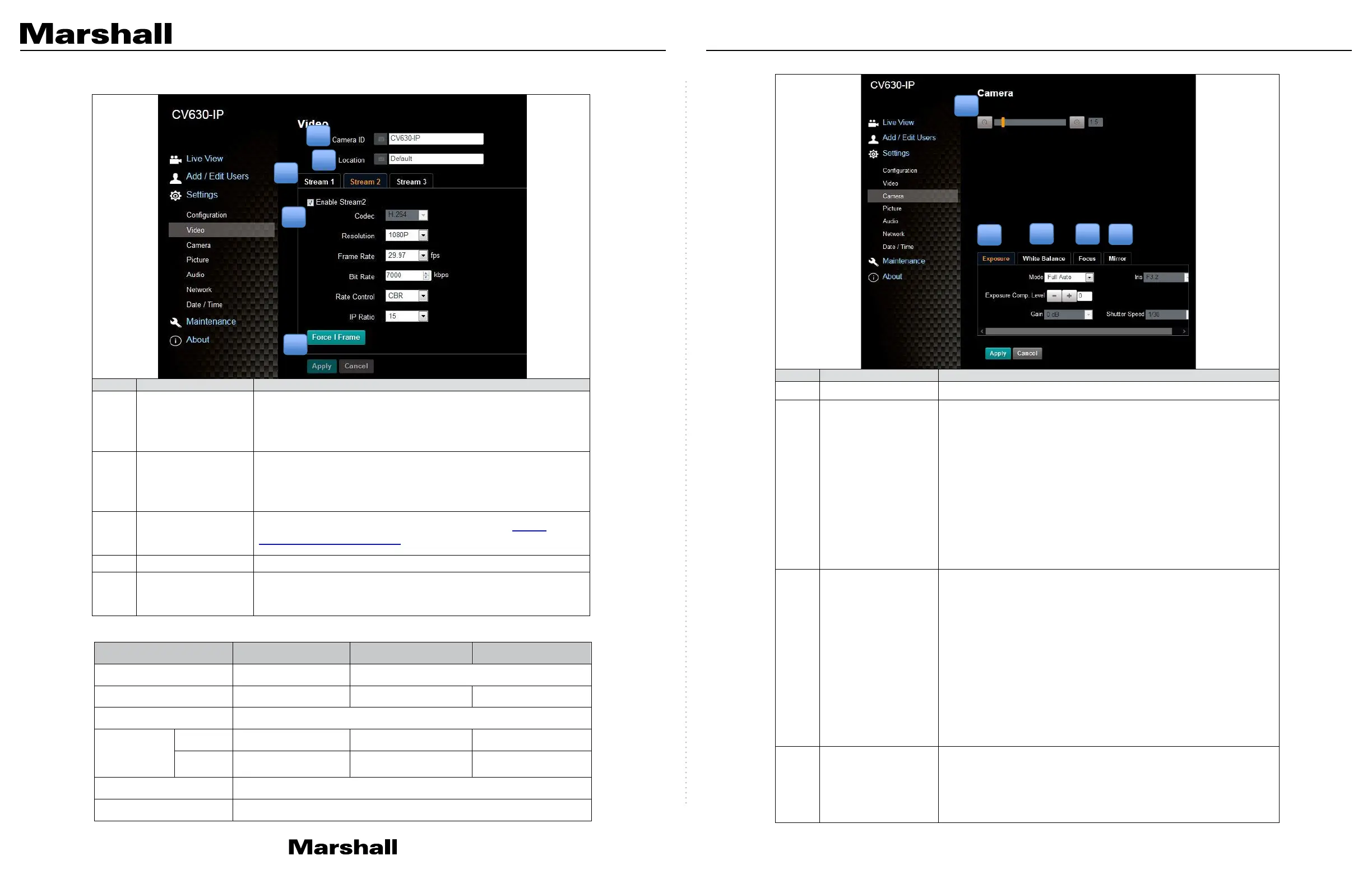

6.2.5 Setting - Video
No
Item
Function Descriptions
1
Camera name
Modify the camera name
■ Camera names are limited to 1 - 12 characters
■ Please use a camera name by mixing uppercase and lowercase
letters or numbers. Do not use “/” and “space” or special symbols
2
Camera Location
Modify the location of the camera, such as Meeting Room 1
■ Camera location is limited to 1 - 12 characters
■ Please use a camera name by mixing uppercase and lowercase
letters or numbers. Do not use “/” and “space” or special symbols
3
Streaming 1/
Streaming 2/
Streaming 3
CV630-IP supports 3 streaming outputs. Please refer to 6.2.5.1
Streaming Parameter Setting for relevant settings
4
Open Streaming
Confirm whether or not the streaming function is opened
5
Force I Frame
Check this item to insert IDR frame into specified series flow and apply
its setting. User’s setting will be reserved and displayed in GUI
interface
6.2.5.1 Streaming parameter setting
Function Streaming 1 Streaming 2 Streaming 3
Encode Format H.265 H.264
Resolution 4K /1080P / 720P 1080P/720P 640 x 360
Frame Rate Setting according to the supported resolution
Bit Rate (kbps)
Range 2,000 ~ 20,000 2,000 ~ 20,000 512 ~ 5,000
Factory
Default
7,000 7,000 1,000
Rate Control CBR/VBR
IP Ratio Setting according to the supported resolution
1
2
3
4
5
English - 34
6.2.6 Setting - Camera
No
Item
Function Descriptions
1 Zoom ratio
Adjust the zoom-in or zoom-out ratio via scroll bar
2 Exposure
■ Mode: Select exposure mode (Automatic/Shutter Priority/Aperture
Priority/Manual)
■ Exposure Comp. Level: Select exposure compensation level
■ Gain: The gain limit is adjustable when the exposure mode is set to
“Manual”
■ Iris: The size of aperture is adjustable when the exposure mode is
set to “Manual” or “Aperture Priority”
■ WDR: Set the level of wide dynamic range (WDR) in order to
obtain better images
■ Shutter Speed: The shutter speed is adjustable when the
exposure mode is set to “Manual” or “Shutter
Priority”
3 White Balance
■ Mode: Select the color temperature mode
⮚ Auto
⮚ Indoor
⮚ Outdoor
⮚ One Push WB
⮚ ATW
⮚ Manual
⮚ Sodium Lamp
■ One Push WB: One push color temperature is adjustable when
the white balance mode is set to “One Push WB”
■ Manual Red/Blue: Manually adjust blue/red color temperature
4 Focus
■ Mode: Select manual/automatic focus
■ Focus Range: The focusing range is adjustable when the focus
mode is set to “Manual”
■ AF Sensitivity: Set automatic focus sensitivity
■ AF Frame: Set automatic focus range
1
2
3
4
5
CV630-IP Manual
www.marshall-usa.com33 34
