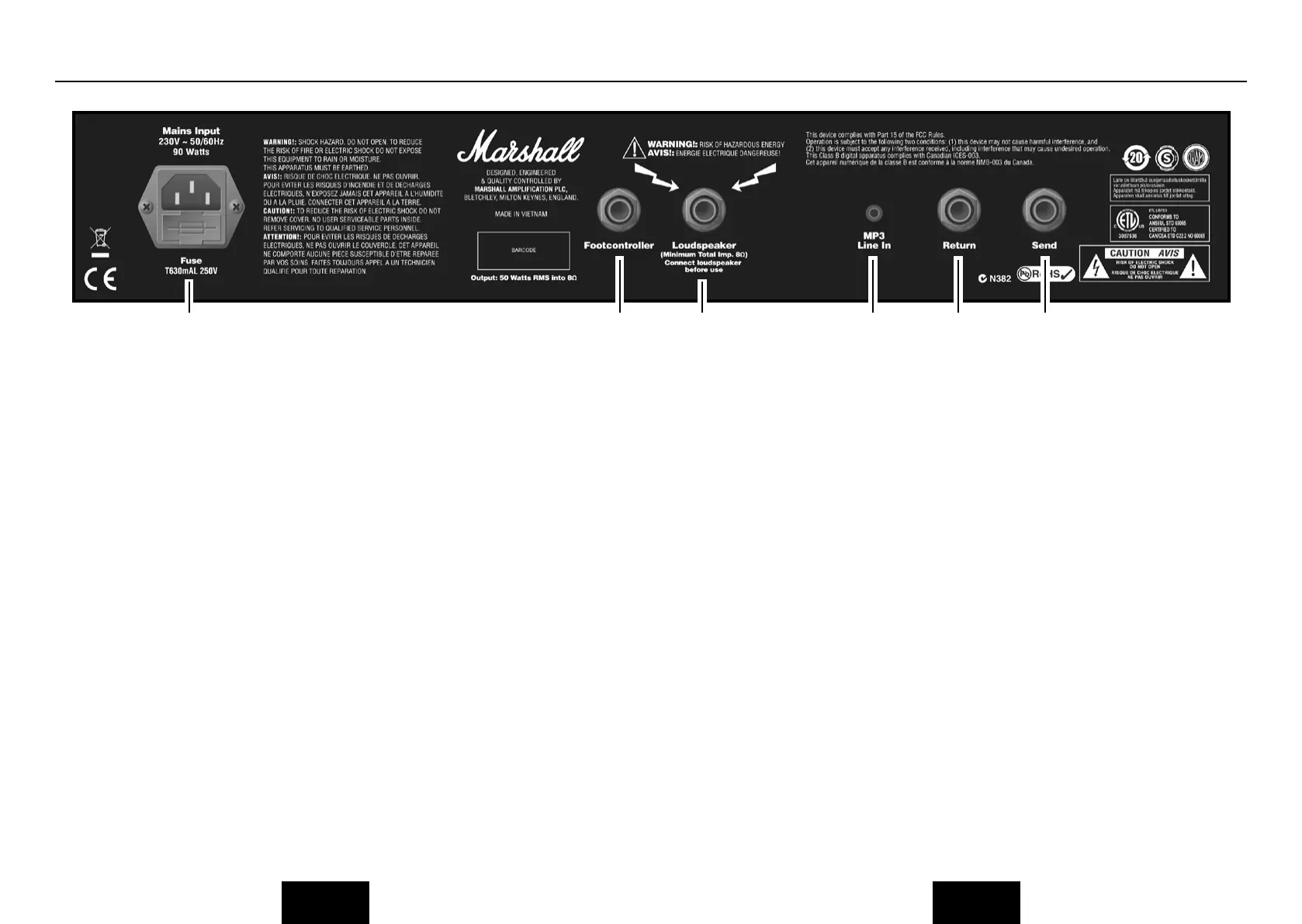

MG50FX REAR PANEL FUNCTIONS
1. MAINS INPUT CONNECTOR
Your amp is provided with a detachable
mains (power) lead, which is connected
here. The specific mains input voltage
rating that your amplifier has been built
for is indicated on the back panel. Before
connecting for the first time, please
ensure that your amplifier is compatible
with your electricity supply. If you have
any doubt, please get advice from a
qualified technician. Your Marshall dealer
will help you in this respect.
The correct value of mains fuse located
in the small drawer at the bottom of the
mains socket is specified on the rear panel
of the amplifier. The drawer contains a
space for a spare fuse. NEVER attempt to
bypass the fuse or fit one of the incorrect
value!
2. FOOTCONTROLLER SOCKET
Jack socket for the connection of the
footcontroller.
3. LOUDSPEAKER OUTPUT(S) SOCKET
The MG50CFX combo has 1 loudspeaker
output.
Always use a non-screened Marshall
approved speaker lead when connecting
an extension cabinet to these amplifiers.
4. MP3 LINE IN SOCKET
Jam to your favourite track by connecting
the line out or headphone output of your
player here. Adjust the volume of your
player to match that of your guitar and
you’ve got the perfect ‘play-along’ practice
system.
5. RETURN SOCKET
Connect to the output of an external
effects processor or pedal here.
6. SEND SOCKET
Connect to the input of an external effects
processor or pedal here.
ENGLISH ENGLISH
1
3
42 5
6
