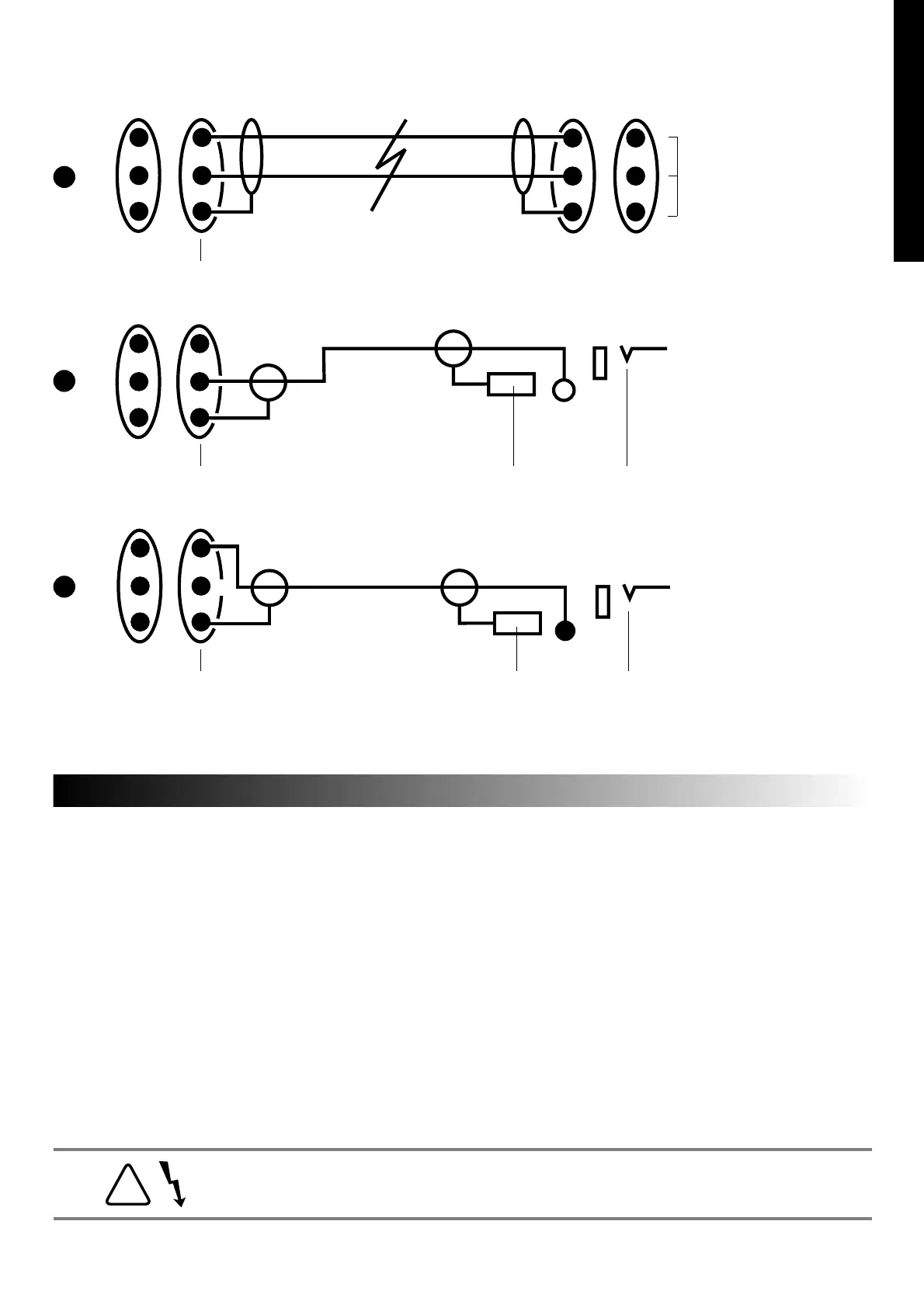

XLR Channel Input On Mixer
(Note: Line Level-Approx OdBV)
2 Core Screened Balanced Mic Lead
Unbalanced XLR to Jack Screened Lead
Unbalanced XLR to Jack Screened Lead
Jack Plug Line Level Jack Input On Mixer Etc.
Jack Plug
NC
NC
Low Level Jack Input On Mixer (ie Mic Input)
Output power (typical) 120 watts at 5% THD into 4/8/16 ohms.
Mains input 117V ~ 60Hz or 230V ~ 50Hz (standard) - others to special order.
(To alter amplifier for different mains voltage specification to that delivered (i.e. 120V to 230V etc), please
contact your country’s Marshall distributor or main service centre.)
Mains power input 375 watts.
Mains fuse T4A - 117V or T2A - 230V
HT fuse T1A
Valve (Tube) complement 4 x ECC83 (12AX7) - preamp and phase splitter (inverter).
4 x EL34 - output. Marshall - Svetlana fitted as standard.
WARNING : RISK OF HAZARDOUS ENERGY!
AVIS : ENERGIE ELECTRIQUE DANGEREUSE!
If the loudspeaker is disconnected a high voltage can be present at these
output terminals. Operation in this manner can damage your amplifier,
therefore ensure that the loudspeaker is properly connected.
