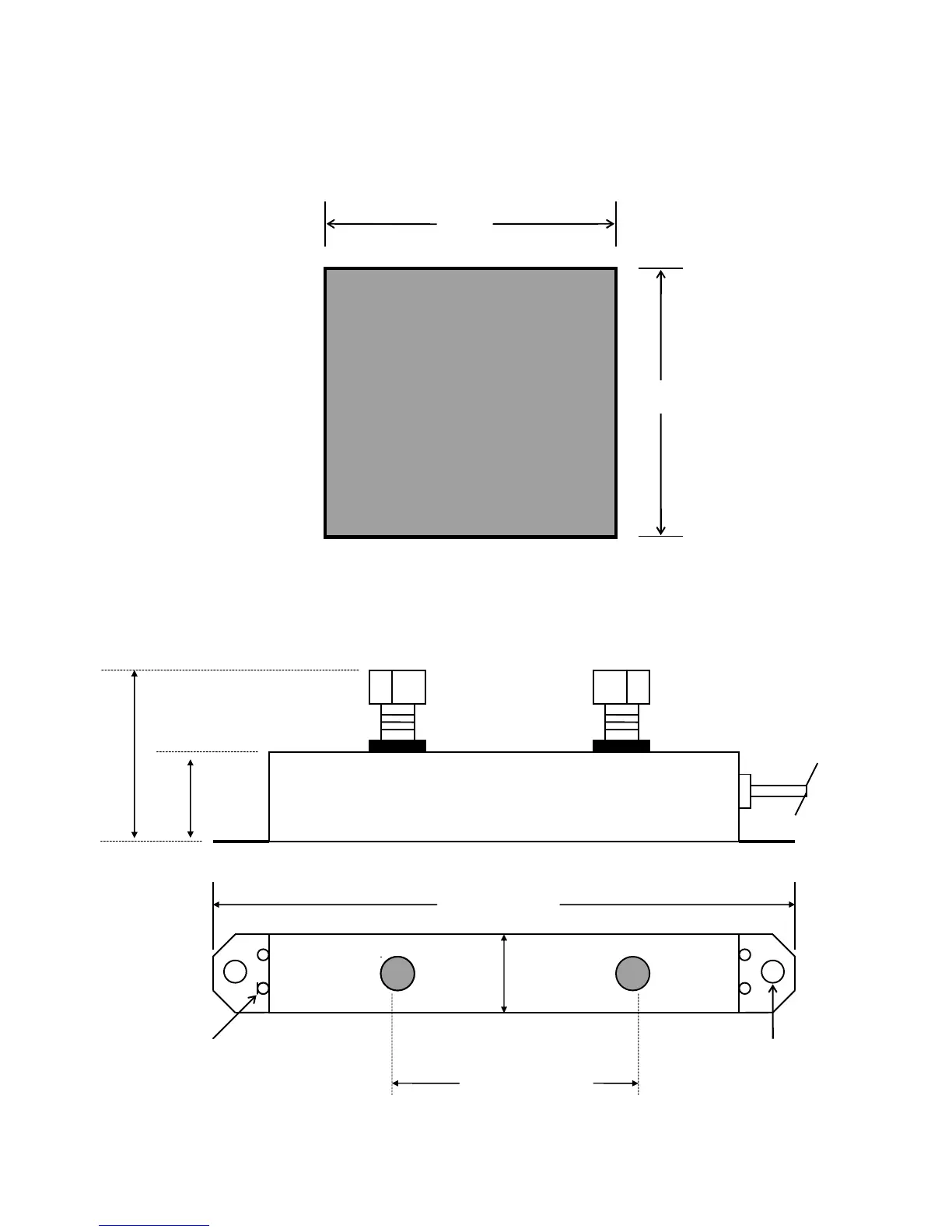

2. Installation
2.1 Panel Cutout for Monitor
3.60”
3.60”
Panel Cut-out
2.2 Sensor Dimensions
2.75”
(6.98 cm)
1.75”
(4.44 cm)
Side View
8.00” (20.32 cm)
1.12”
(2.84 cm)
Top View
.125” (.31 cm) .196” (.49 cm)
2 places
4.125” (10.47 cm)
