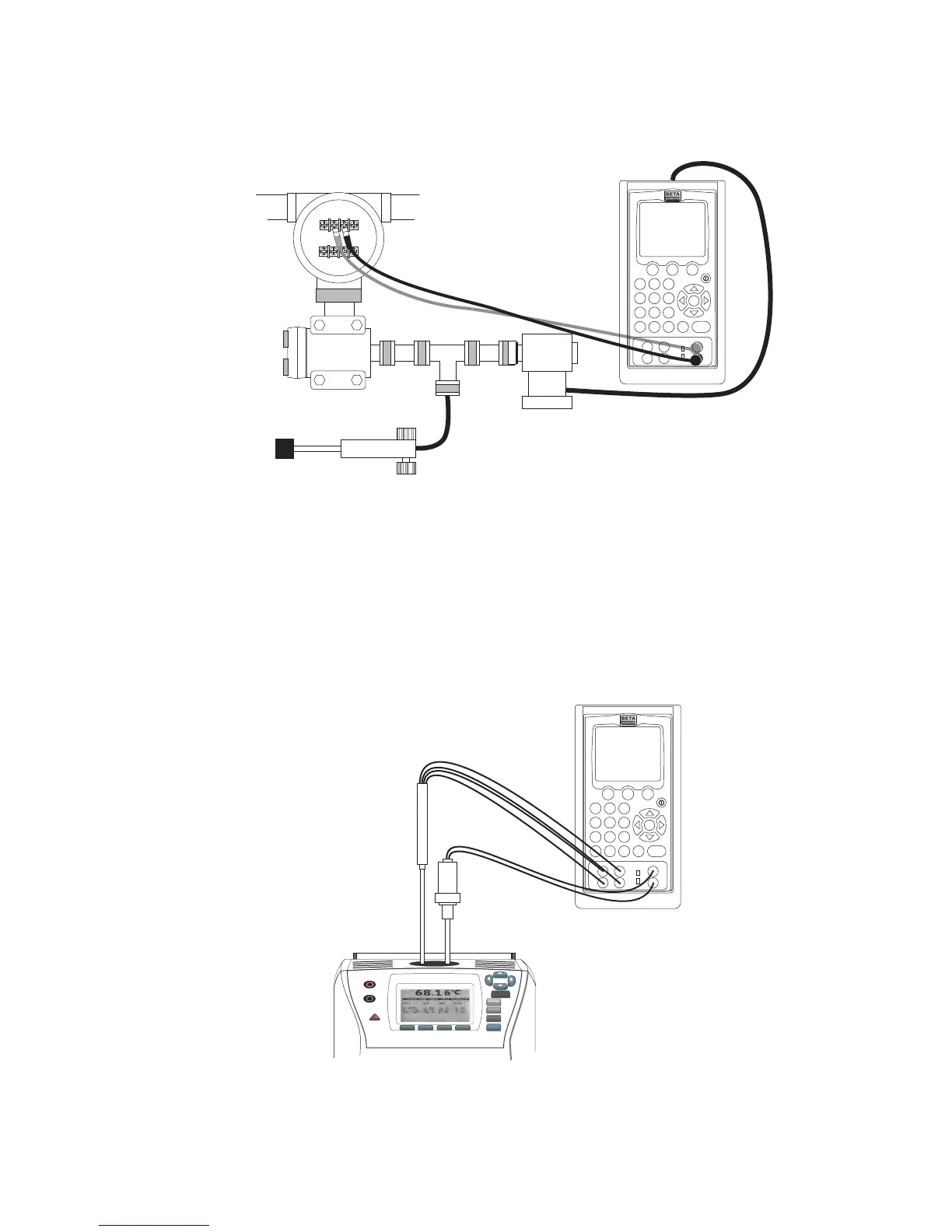

Figure 22. Calibrating a Pressure Transmitter
7. Performing a Switch Test
The calibrator can stimulate a switch and capture the results in any source/simulate mode
(except pulse) and the calibrator can also monitor a switch and capture the results in any
read mode based on the input requirements of the switch. Examples are given below for a
temperature switch with an external temperature source and a pressure switch.
7.1 Performing an Temperature Switch Test:
Figure 23. Temperature Switch Test
