2. Calibrator Interface

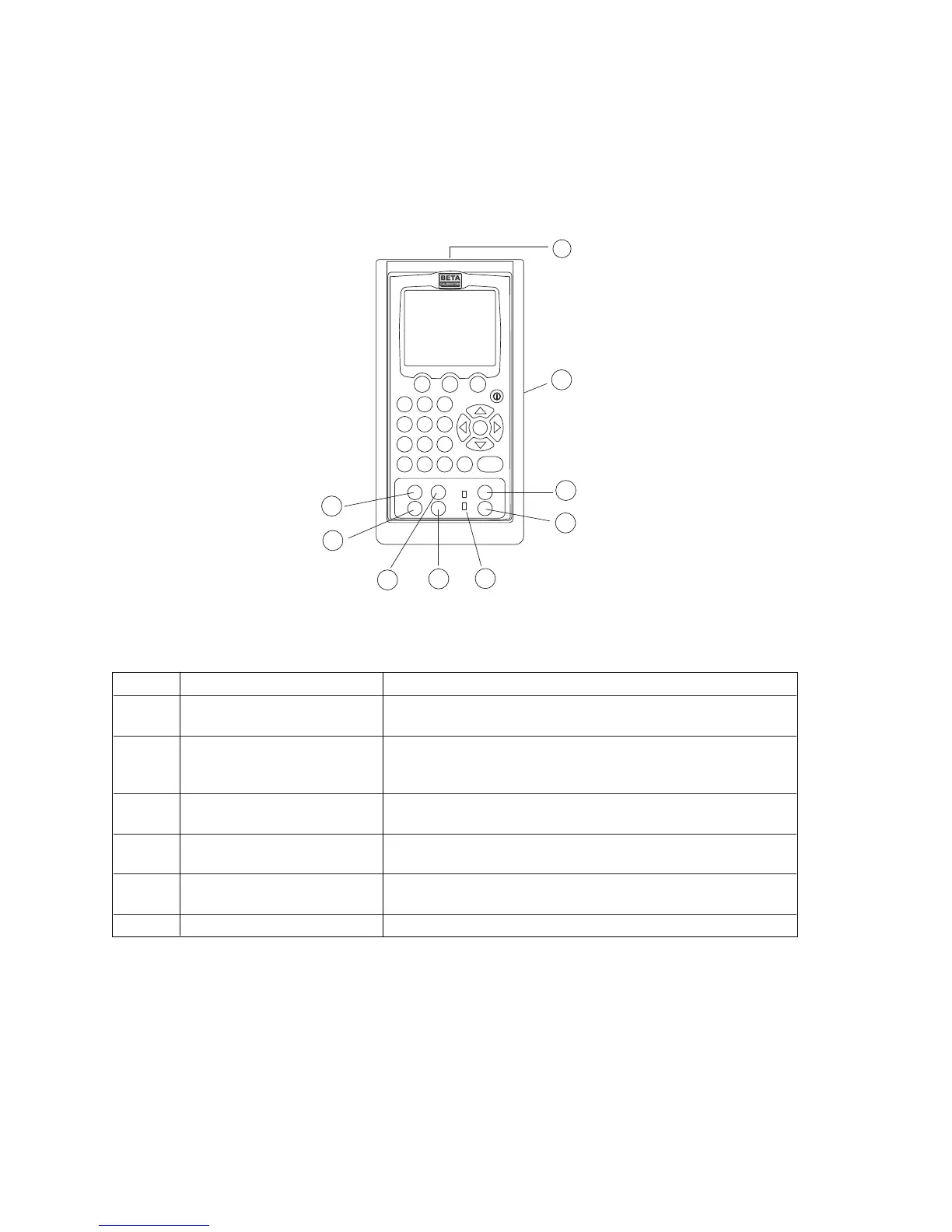

Figure 1 shows the location of the input and output connections on the calibrator, while Table
1 describes their use.
Table 1: Input and Output Terminals
No. Name Description
1, 2 Measure Isolated V, Input terminals for measuring current, voltage, switchtest,
mA terminals, switchtest and supplying loop power.
3 TC input/output Terminal for measuring, or simulating thermocouples. Accepts
miniature polarized thermocouple plugs with flat in-line blades
spaced 7.9 mm (0.312 in) center to center.
4,5 Source/Measure Terminals for sourcing and measuring voltage, frequency,
V,RTD 2W, Hz, pulse train, and RTDs
6,7 Source/Measure Terminals for sourcing and measuring current, and performing
mA terminals, 3W 4W RTD measurements with 3-wire or 4-wire setups.
8 Pressure module connector Connects calibrator to a pressure module for pressure meas-
urements.
9 Serial port Connects calibrator to a PC for remote control.
6
