BLACKLINEX POWERED USER GUIDE V1.0
BLACKLINEX POWERED USER GUIDE
Wiring Diagrams
System Congurations
There are several ways that BlacklineX Powered systems can be configured so we will now look at some practical wiring examples for the
most common system configurations. We have shown a limited range of loudspeaker types but the same wiring can be used for other models
which will be listed with an indication of the appropriate BlacklineX Powered preset to select.

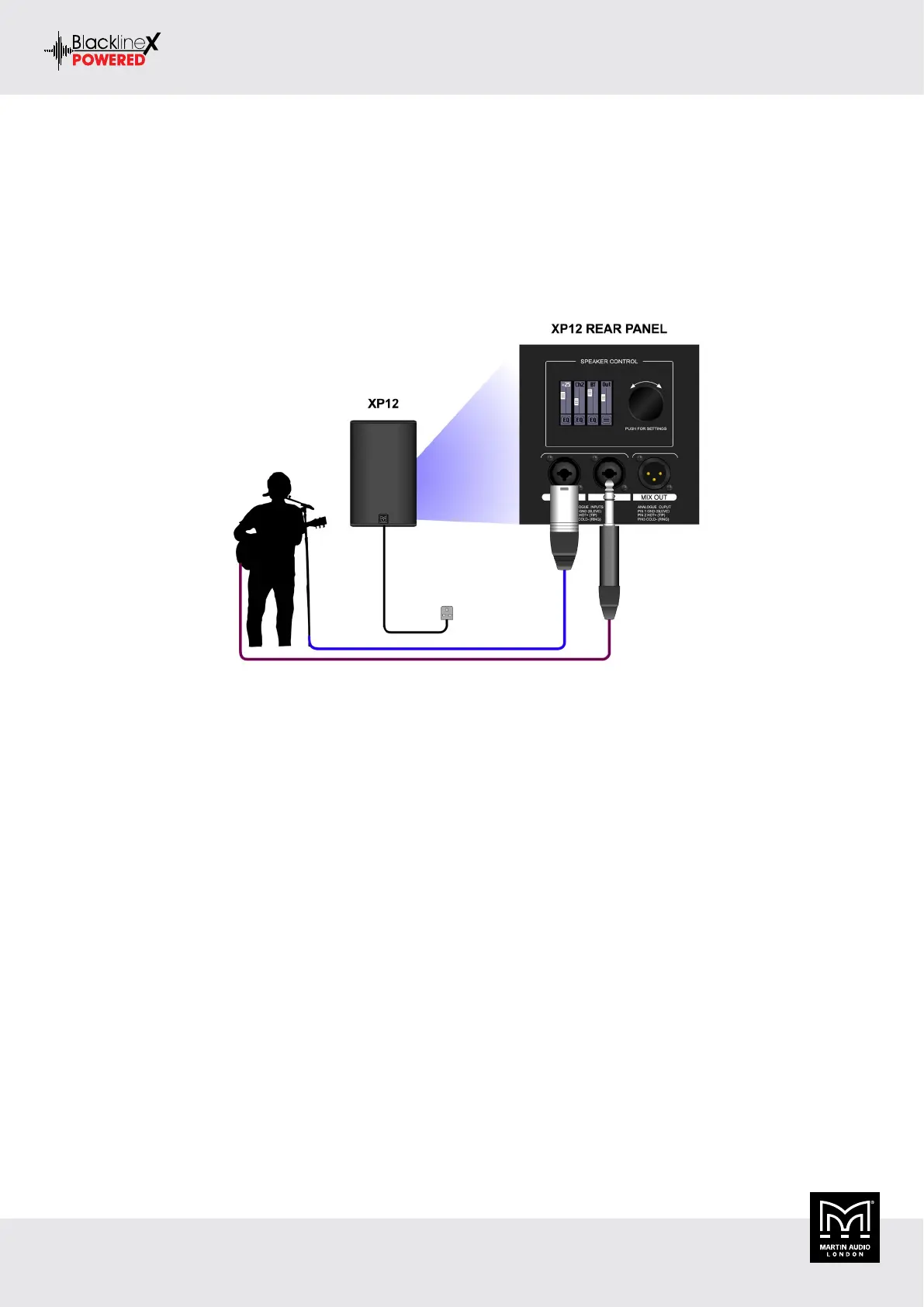

System A – Basic set-up
Products that may be used with this wiring:
• XP12
• XP15
This is the simplest system set up, connecting from your source which could be a microphone and an instrument directly to the BlacklineX
Powered using a balanced XLR for the microphone and a standard ¼” jack cable for the instrument. Level and EQ for the two inputs can
be individually adjusted and a good balance between them achieved.
The loudspeaker should have the FULL RANGE preset selected.
