FINAL INSTALLATION
FI NAL INST ALLAT ION
Log Placement for fiber VDY24/18D3R:
Step 1: Line up pins on bottom of Rear Log #1 with pins on
grate bar and place on grate.
Step 2: Place Front Left Log #2 on left front of grate bar lining
up cutout in bottom of log with grate bar.
Step 3: Place Front Right Log #3 on right front of grate bar
lining up cutout in bottom of log with grate bar. Make sure Log
#3 touches Log #1.
Step 4: Place back end Top Middle Log #4 on Log #1. Press the
side of Log #4 up against raised area of Log #1. Line up notch in
front end of #4 with grate bar.
Step 5: Rest Top Right Log #5 on Log #3.
Step 6: Line up Top Left Log #6 with notches on Log #2 and
Log #4

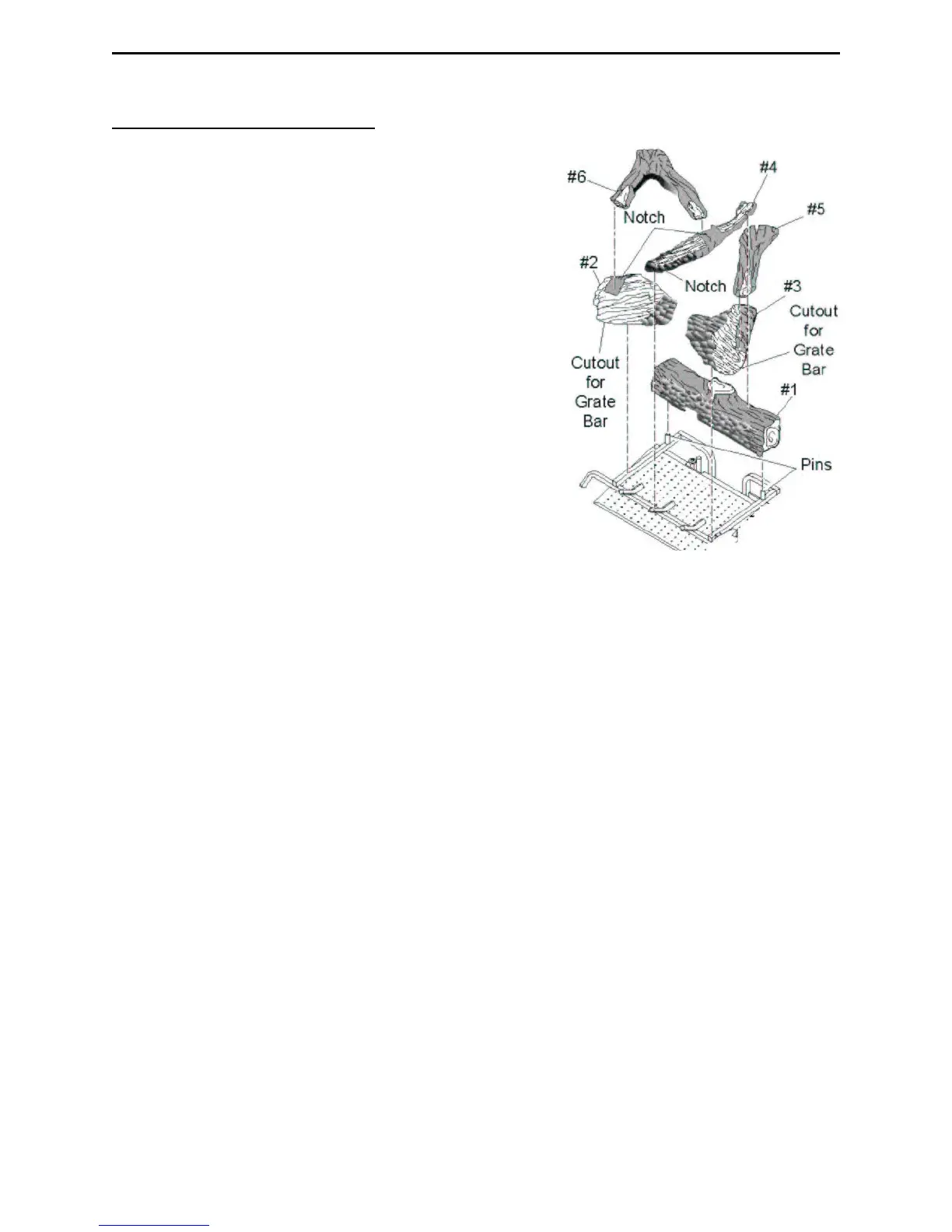

Figure 19: Log Placement
