PARTS LIST / ILLUSTRATIONS
PARTS LIST / ILLUSTRATIONS
29
PARTS LIST / ILLUSTRATION
B

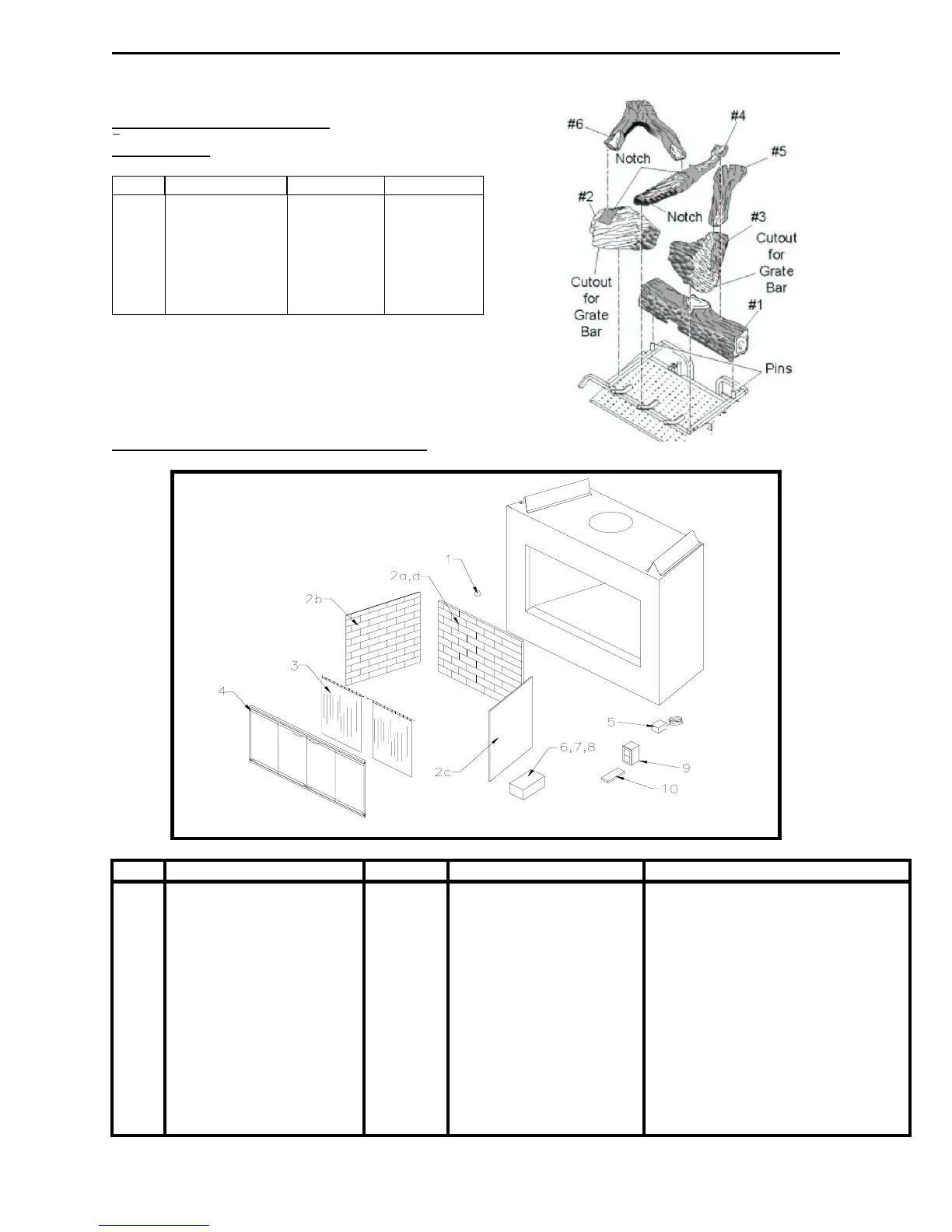

Firebox Components: Standard and Accessories
Item Description Qty 4536 5142
1Hi Temperature limit switch 1 41D0202 41D0202
2Firebrick walls (T Brown) 1 FB4536W9TB FB5142W9TB
2a Firebrick center 36” 1 41D2015 -
2b Firebrick left side 1 41D2013 41D2013
2c Firebrick right side 1 41D2014 41D2014
2d Firebrick center 42” 1 - 41D2016
3Pull Screen 1 MS MS
4Bi-Fold Brass/Black Doors 1 BBD4536/BLD4536 BBD5142/BLD5142
5Manual Remote Control 1 RCM/RCB RCM/RCB
6 Embers 1 EMBERS EMBERS
7Cinders 1 CINDERS CINDERS
8 Lava Rock 1 VR1000A VR1000A
9 Wall Switch Kit 1 MVWS MVWS
VDY24/18D3R
Item Description 4536 5142
1Rear Log 32D2118 32D2118
2Front Left Log 32D2117 32D2117
3Front Right Log 32D2116 32D2116
4
5
6
Top Middle Log
Top Right Log
Top Left Log
32D2114
32D2113
32D2115
32D2114
32D2113
32D2115
