GLASS DOOR INSTALLATION AND FAN ACCESSORY
F
AN ACCESSORY
The model SCF36A and SCF36AI Fireplaces may be equipped with a Model FA2 fan accessory. If the fireplace
is to be equipped with the FA2 fan at anytime, the JB1 junction box assembly must be installed on the fireplace
as shown by Figures 32 and 33 during the installation of the fireplace. Unless the JB1 junction box is installed
at this time, wall finishing materials must be removed to gain access to the side of the fireplace to install the
JB1 junction box at a later date. Complete Installation and Operation Instructions are included with the FA2
Fan.
Note: A rectangular switch knockout is provided on the lower right hand face of the fireplace.
28
GLASS DOOR INSTALLATION
This fireplace has been tested and listed for use with optional Model GD36P or GD36PB glass doors. For
installation of the Models GD36P or GD36PB glass doors, see the instructions provided with the doors.
NOTE: THE THREE PRONG RECEPTACLE
AND ITS COVER MUST BE EXPOSED AND
THE COVER PLATE MUST BE REMOVABLE
FOR INSPECTION OF WIRING CONNECTION
ONCE THE FIREPLACE IS INSTALLED.
FASTEN MODEL JBI JUNCTION
BOX TO THE SIDE OF THE
FIREPLACE WITH THE TWO
SHEET METAL SCREWS REMOVED
FROM JUNCTION BOX
OPENING COVER.
JUNCTION BOX
OF FIREPLACE
TO FUSE OR
CIRCIUT BREAKER
GROUND
WHITE
BLACK
NOTE: THE JBI-JUNCTION BOX SHOULD BE INSTALLED AND THE RECEPTACLE WIRED TO THE E
NOTE: THE JBI-JUNCTION BOX SHOULD BE INSTALLED AND THE RECEPTACLE WIRED TO THE E
LECTRICAL SYSTEM OF
THE STRUCTURE AT THE TIME OF INSTALLATION OF THE FIREPLACE OF THE FA
THE STRUCTURE AT THE TIME OF INSTALLATION OF THE FIREPLACE OF THE FA
2 FAN ASSEMBLY IS TO BE USED.
2 FAN ASSEMBLY IS TO BE USED.
SWITCH
(SPST)
CORDSET
120V, 60HZ
(FAN ASSEMBLIES)
M2
GAS APPLIANCE
OPENING COVER
JUNCTION BOX
OPENING COVER
MODEL JBI JUNCTION BOX INSTALLATION
REMOVE JUNCTION BOX
COVER FROM FIREPLACE.
BELK LOUVER KIT

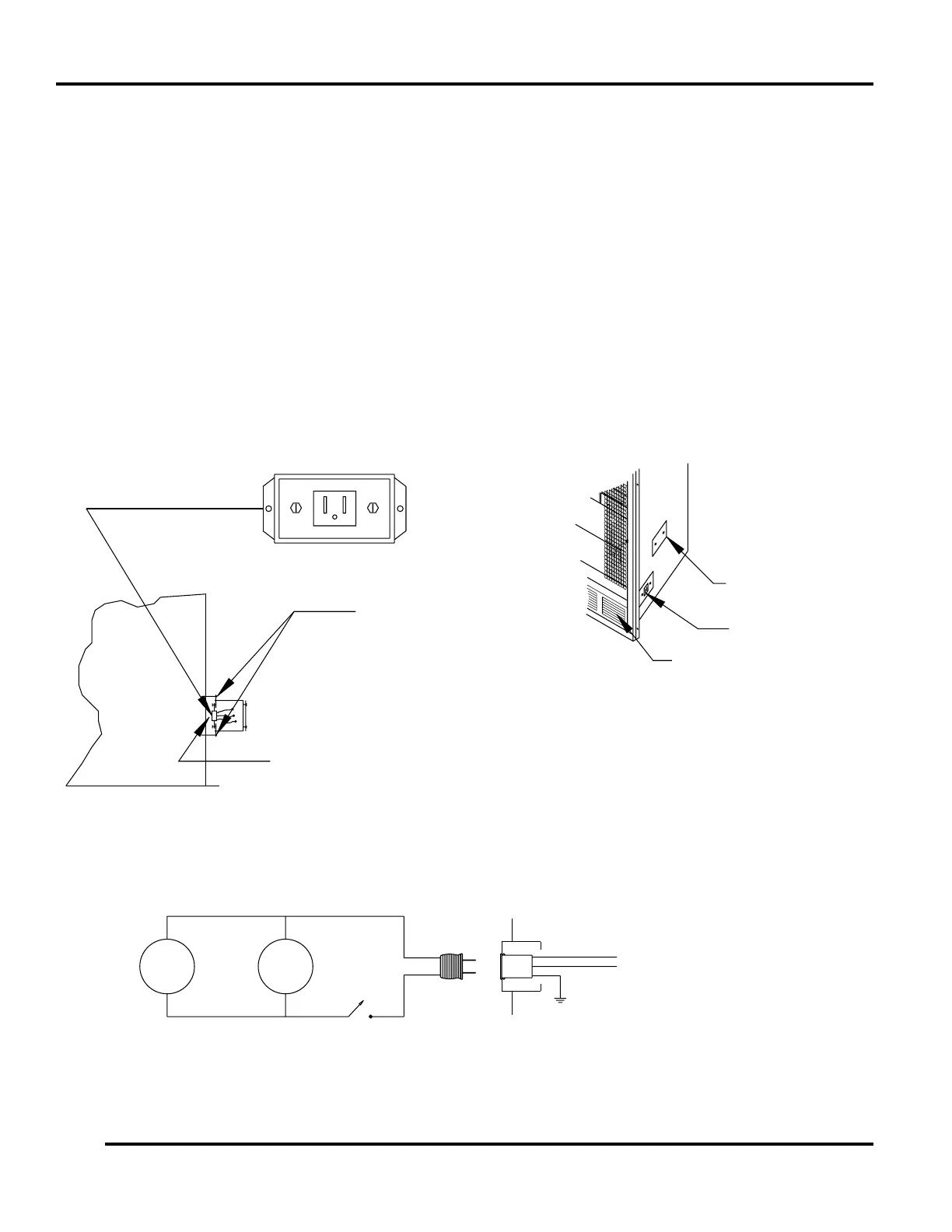

FIGURE 32
FIGURE 33
53D9021. Rev 1 03/03
