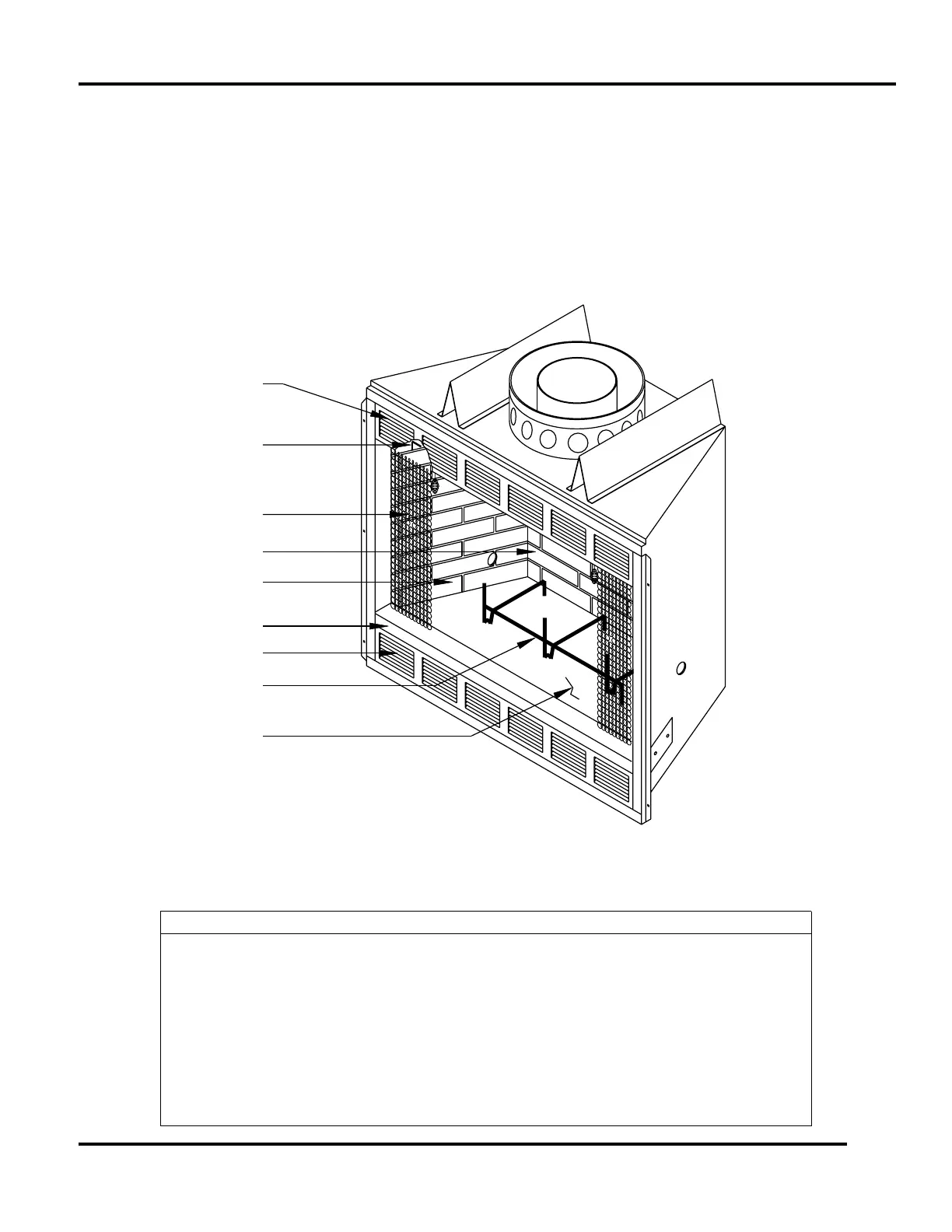

PARTS DIAGRAM AND LIST
All repair part orders should be placed through your local dealer. To ensure prompt and accurate service,
please provide the following information when placing a repair part order: Model number of your Appliance,
Part Name, Part Number, and Quantity of parts needed.
1
2
6
5
4
9
8
7
3
PART NAME
UPPER GRILLE PNTD. ASSY.
WELDMENT AIR DOOR ROD
FIRESCREEN PANELS
FIREBRICK BACK ASSY.
FIREBRICK SIDE ASSY.
LEDGE HEARTH PNTD. ASSY.
LOWER GRILLE PNTD. ASSY.
GRATE PNTD. ASSY.
HEARTH REFRACTORY ASSY.
KEY NO.
1
2
3
4
5
6
7
8
9
QTY.
1
2
1
1
2
1
1
1
1
PART NUMBER 
077000
031867
070940
031871
031872
077151
020362
055119
031873
SCF36A/SCF36AI
MODEL FIREPLACE
Technical Service Department
2813 W. Mall Drive, Unit B.
Florence, Alabama 35630.
Tel. - 1-866-500-5671
www.martinhearthandheating.com
53D9021. Rev 1 03/03
