35

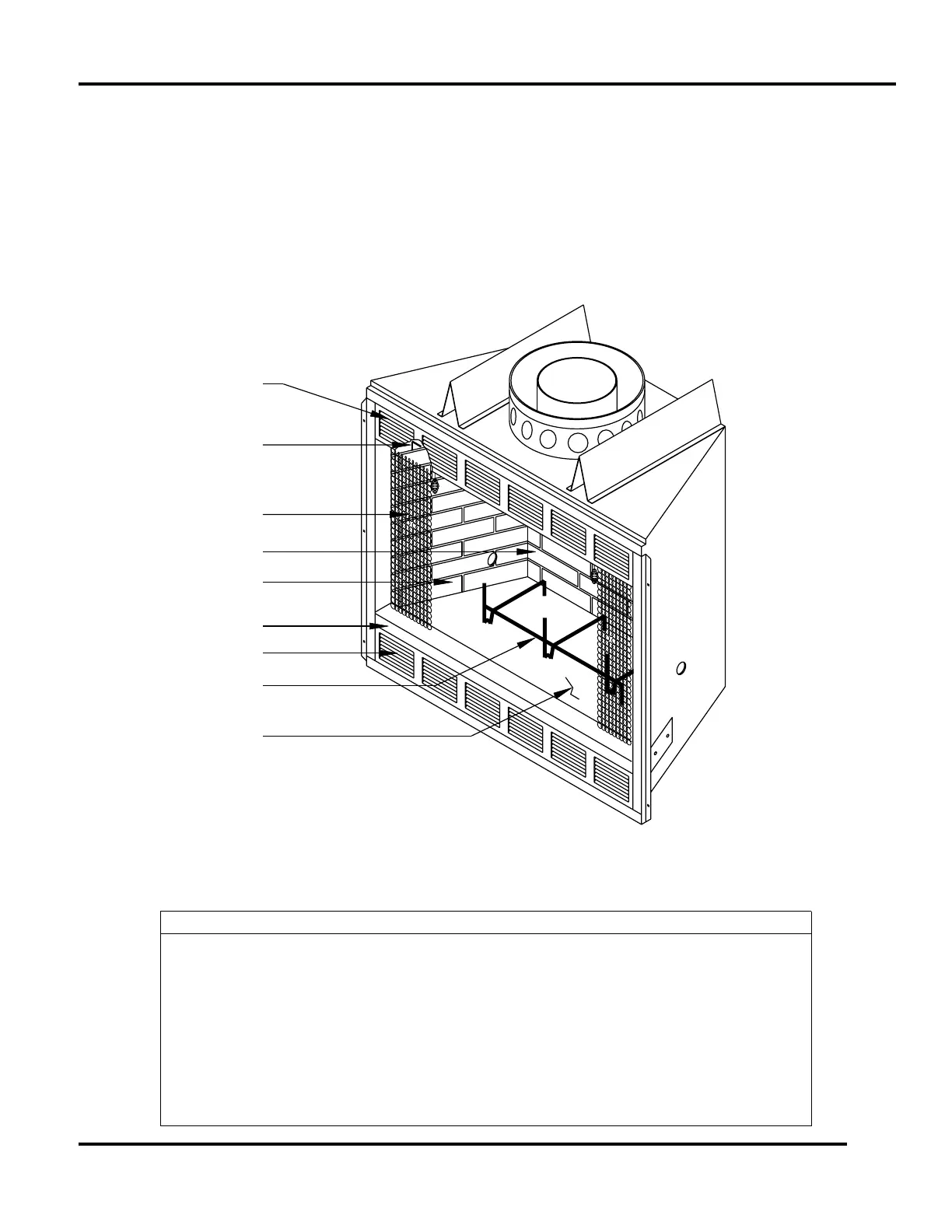

PARTS DIAGRAM AND LIST
All repair part orders should be placed through your local dealer. To ensure prompt and accurate service,
please provide the following information when placing a repair part order: Model number of your Appliance,
Part Name, Part Number, and Quantity of parts needed.
1
2
6
5
4
9
8
7
3
PART NAME
UPPER GRILLE PNTD. ASSY.
WELDMENT AIR DOOR ROD
FIRESCREEN PANELS
FIREBRICK BACK ASSY.
FIREBRICK SIDE ASSY.
LEDGE HEARTH PNTD. ASSY.
LOWER GRILLE PNTD. ASSY.
GRATE PNTD. ASSY.
HEARTH REFRACTORY ASSY.
KEY NO.
1
2
3
4
5
6
7
8
9
QTY.
1
2
1
1
2
1
1
1
1
PART NUMBER
077000
031867
070940
031871
031872
077151
020362
055119
031873
SCF36A/SCF36AI
MODEL FIREPLACE
Technical Service Department
2813 W. Mall Drive, Unit B.
Florence, Alabama 35630.
Tel. - 1-866-500-5671
www.martinhearthandheating.com
53D9021. Rev 1 03/03
