NOTE: COMBUSTIBLE MATERIALS SHOULD NOT BE INSTALLED BELOW TOP SPACER. NON-COMBUSTIBLE MATERIALS
SUCH AS BRICK OR TILE MAY BE USED TO TRIM FACE OF THE FIREPLACE BUT SHOULD NOT COVER ANY PORTION OF THE
LOUVERED PANEL OR COOL AIR INLET. COMBUSTIBLES MUST NOT OVERLAP THE BLACK PAINTED FACE OF FIREPLACE.
CAUTION: DO NOT BLOCK AIR INLETS OR OUTLETS.

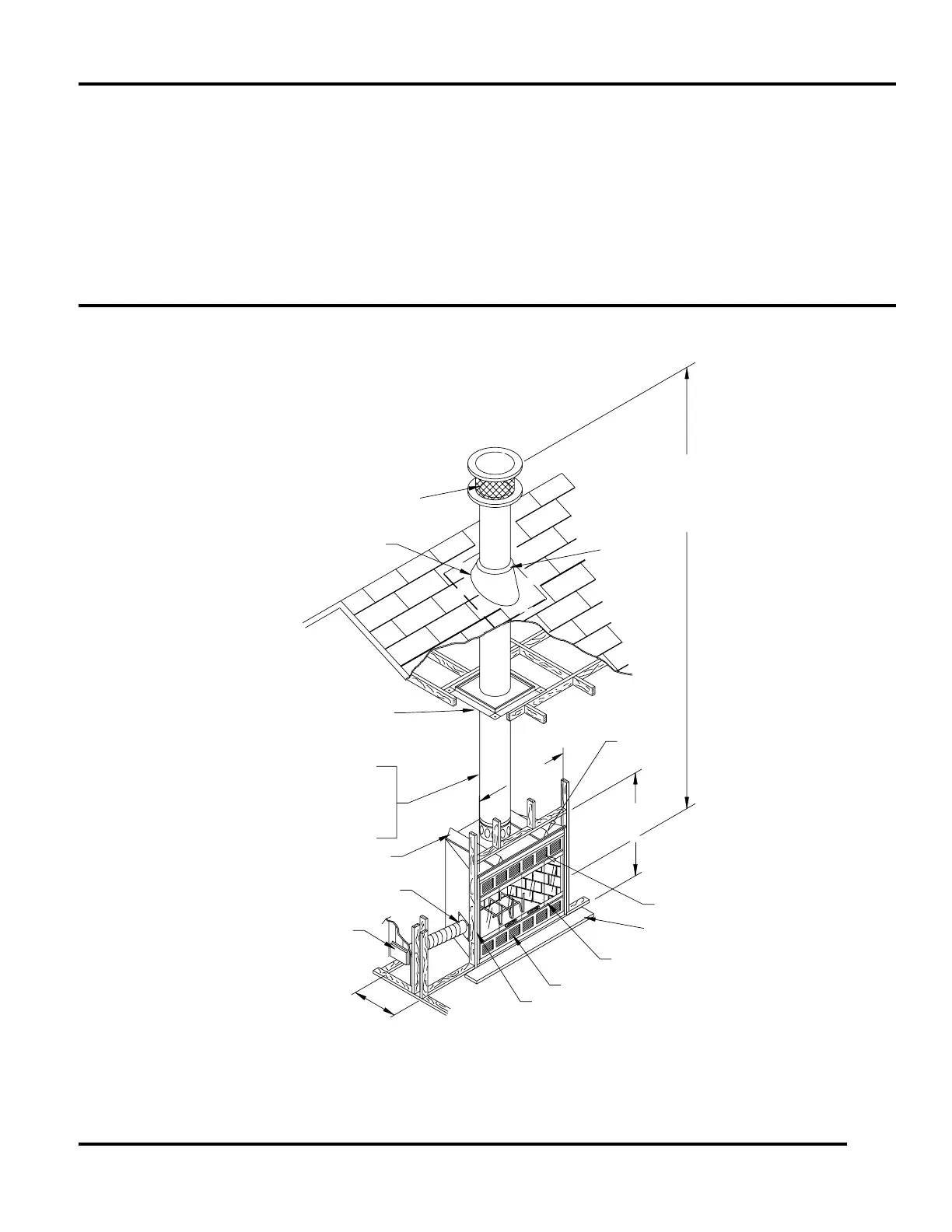

FIREPLACE - MODEL SCF36A SHOWN
RESIDENTIAL INSTALLATION
TO COMBUSTIBLES MODEL:
CHIMNEY (2" MIN. AIR SPACE
38 1/2"
FRAMING
DIMENSION
FRAMING DIMENSIONS
FRONT - TO BACK
21 1/2"
COMBUSTION AIR
ASSEMBLY MODEL AK4
FLEXIBLE DUCT
TYPE FP-4-U
NAIL TO FRAMING MEMBERS
COOL AIR INLET (SEE CAUTION)
GD36B/GD36PB GLASS
DOOR ACCESSORY
WARM AIR OUTLET
(SEE CAUTION)
GALVANIZED METAL STRIP
TOP SPACER
S12 (1 FT. PIPE)
S18 (18 IN. PIPE)
S36 (3 FT. PIPE)
S48 (4 FT. PIPE)
SEE NOTE
FIRESTOP-MODEL SF
(REQUIRES 14 1/2 X 14 1/2 OPENING)
1 3/4" MIN. AIR SPACE TO COMBUSTIBLES)
STORM
COLLAR
ROOF FLASHING
MODEL 612
ROUND CHIMNEY CAP
MODEL SC
(BOTTOM OF FIREPLACE)
(FLUE OUTLET HEIGHT)
37 3/4"
FRAMING
DIMENSION
14 FT. = MIN. HEIGHT (NO OFFSETS)
14 FT. = MIN. HEIGHT (2-30˚ ELBOWS)
21 FT. = MIN. HEIGHT (4-30˚ ELBOWS)
86 FT. = MAX. HEIGHT (CHIMNEY
SUPPORT EVERY 30 FT.)
6
5
CLEARANCES
FIGURE 1
OPERATION GUIDELINES
supplied, this can cause a negative pressure in the home. When this happens, the house will draw in outside
air from the cracks in the windows, down the fireplace flue or other locations of air leakage in the home.
Because cold air infiltration may be unavoidable in some structures, Martin Hearth & Heating is not responsible
for heat loss or air infiltration through or around the fireplace.
53D9021. Rev 1 03/03
