cally shielded and therefore should not be placed
directly beside or atop a CRT television.
INSTALLING ON A WALL
Note: These instructions assume the mounting
surface is standard wood frame and sheet rock
construction. If you wish to mount to another type
of surface, consult a bonded contractor.
Required.hardware.(included):
• (1) Installation template
• (1) Wall bracket
• (1) Shoulder bolt
Required.hardware.(not.supplied):
• (2) 1.5-inch Phillips sheet metal screws
• (2) Sheet rock anchors
Required.tools.(not.supplied):
• Ruler
• Level
• Electric drill and 1/4” and 1/8” drill bits
• Phillips screwdriver

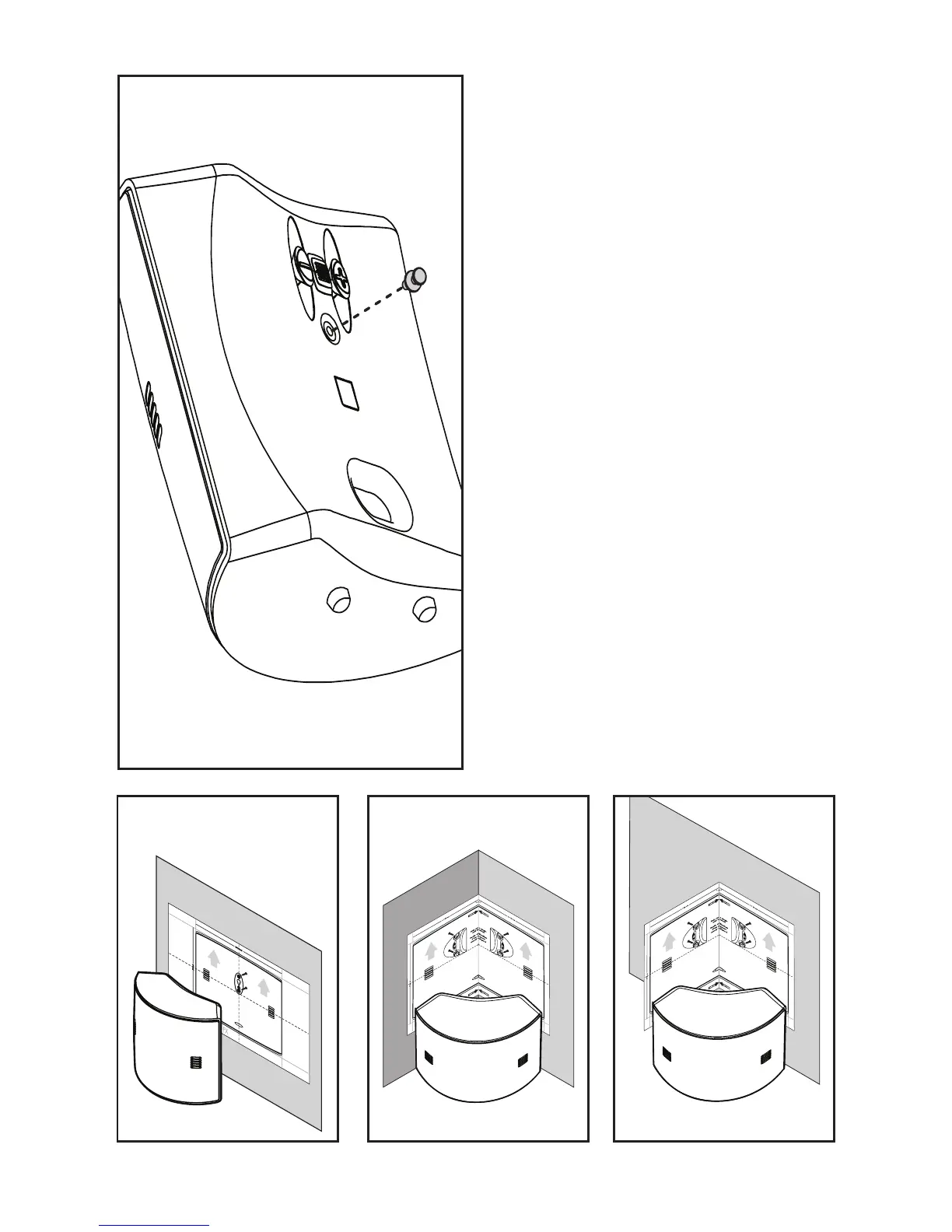

1 Screw the shoulder bolt into the back (fig. 5).
2 Locate mounting location using a level and the
installation template (fig. 6A–6C).
Fig. 5
Fig. 6A Fig. 6CFig. 6B
