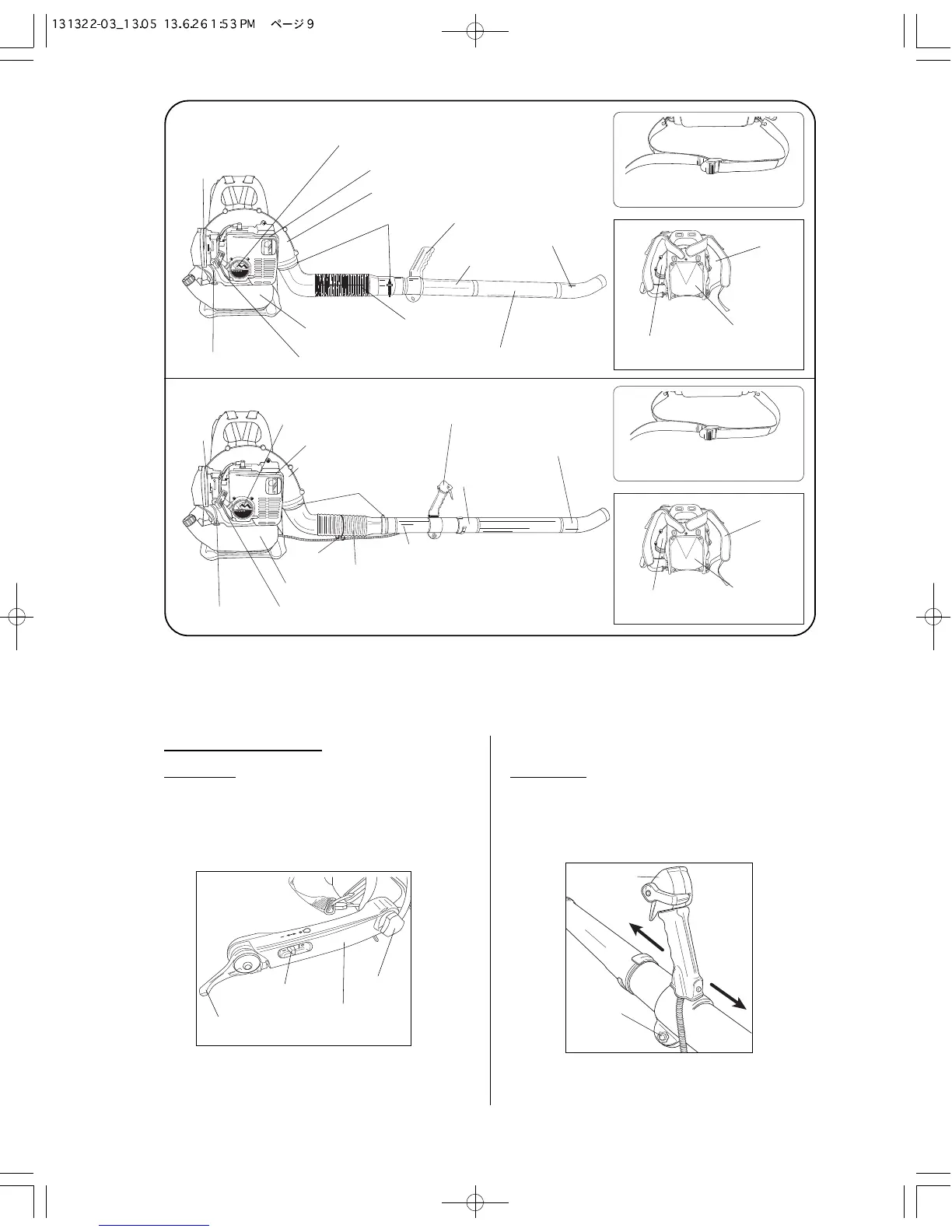

RECOIL STARTER
ENGINE
BLOWER HOUSING
BAND
AIR
CLEANER
PRIMER BULB
RETURN PIPE
FUEL TANK
FLEXIBLE PIPE
STRAIGHT PIPE
BENT PIPE
SWIVEL PIPE
HANDLE
SHOULDER
STRAPS
SERIAL NUMBER
(BLOWER HOUSING)
BACK PAD
HA Type
Standard
BEFORE OPERATION
Be sure the power blower is correctly assembled and all fasteners and fittings are properly secured.
THROTTLE LEVER
HA T
ype
Before operating the power blower, release
the knob, rotate the throttle arm to the position
in the illustration, and tighten knob to secure in
place.
When the power blower is strapped to the
back of the operator, the throttle lever of the
"Standard" is located on the left side.
THROTTLE
LEVER
THROTTLE
ARM
KNOB
STOP SWITCH
Standar
d
Before operating the power blower, release
the knob, knove the throttle grip to the position
in the illustration, and tighten knob to secure in
place.
When the power blower is strapped to the
back of the operator, the throttle lever of is
located on the tube.
THROTTLE
LEVER
KNOB
HIP BELT
Accessories
SHOULDER
STRAPS
SERIAL NUMBER
(BLOWER HOUSING)
BACK PAD
HIP BELT
Accessories
RECOIL STARTER
ENGINE
BLOWER HOUSING
BAND
AIR
CLEANER
PRIMER BULB
RETURN PIPE
FUEL TANK
FLEXIBLE PIPE
SWIVEL PIPE
BENT PIPE
STRAIGHT PIPE
THROTTLE LEVER
CLAMP
