8
STEP #1)

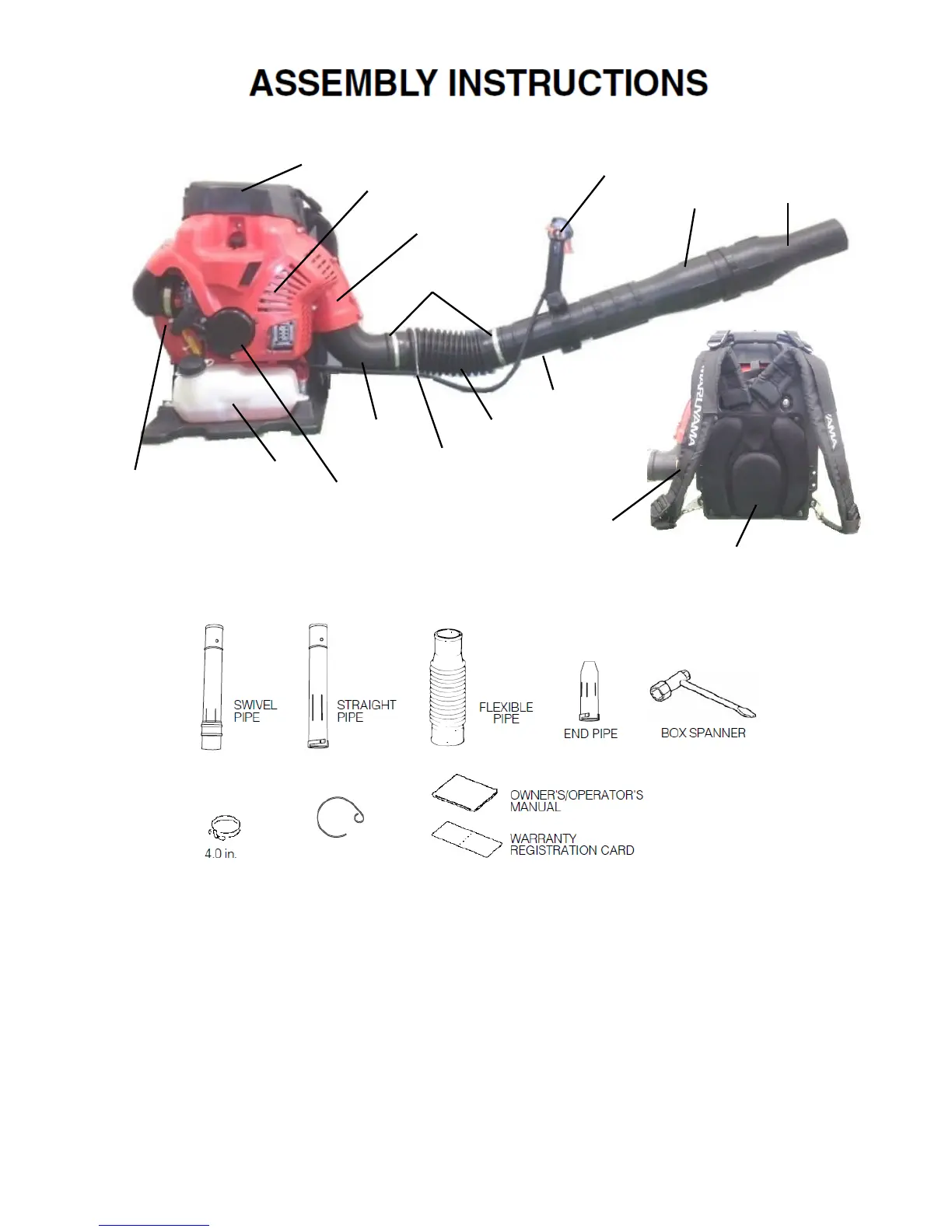

Locate and identify all the components (see sketch).
STEP #2)
Prepare the flat head screwdriver, Using the BAND, connect the BENT PIPE and FLEXIBLE PIPE to the blower,
and the SWIVEL PIPE to the FLEXIBLE PIPE (see sketch).
STEP #3)
Assemble the STRAIGHT PIPE, BENT PIPE, and END PIPE, then connect them to the SWIVEL PIPE (see
sketch).
STEP #4)
Slides THROTTLE LEVER over SWIVEL PIPE and tighten retainer knob (see page 9).
CLAMP
STRAIGHT PIPE
END PIPE
THROTTLE LEVER
BAND
SWIVEL PIPE
FLEXIBLE PIPE
BENT PIPE
