Checking Standard Accessories, Functions of Standard Accessories and
Operating Parts, and
k
Warning Label
Checking Standard Accessories
Functions of Operating Parts/ Warning Label
After the package is opened, make sure that all accessories are provided first. If any accessory is
missing or broken, please contact MARUYAMA service dealer immediately. Sizes and quantities of
accessories are listed in the Table of Specifications on Page 20.
Product Features
・
Since the chemical solution always flows in one direction, the water intake mechanism is a
reasonable one.
・
The cylinder is durable because it is treated with the MAC process (ceramic).
・
The piston packing uses a special rubber and it is resistant to chemicals.
(1) Oil refill port lid:
Before starting operation, open this lid and be sure to refill the gasoline
engine oil (SAE 10W-30 or equivalent).
(2) Warning label
・
Always remove dirt and must so that contents will be clearly legible.
・
If the warning label is damaged, replace is with a new one.
・
If the part with a warning label is replaced, be sure to attach the label to
the same position on the new label.
(3) Pushrod oil port:
Before starting, refill about 3 to 5 drops of oil (SAE 10W-30 or equivalent).
(4) Regulator knob:
Dial for pressure adjustment.
・
Turning clockwise increases the pressure.
・
Turning counterclockwise decreases the pressure.
(5)
Discharge ball valve
:
Used to connect the spraying hose. If the lever on the valve is turned by 90
degrees, the valve is "opened".
(6) Plug:
Remove this plug to use to supply water.
(7) Drain plug:
Loosen this plug to drain water. Water in the pump can be removed.
(8) Label:
Indicates the serial number.

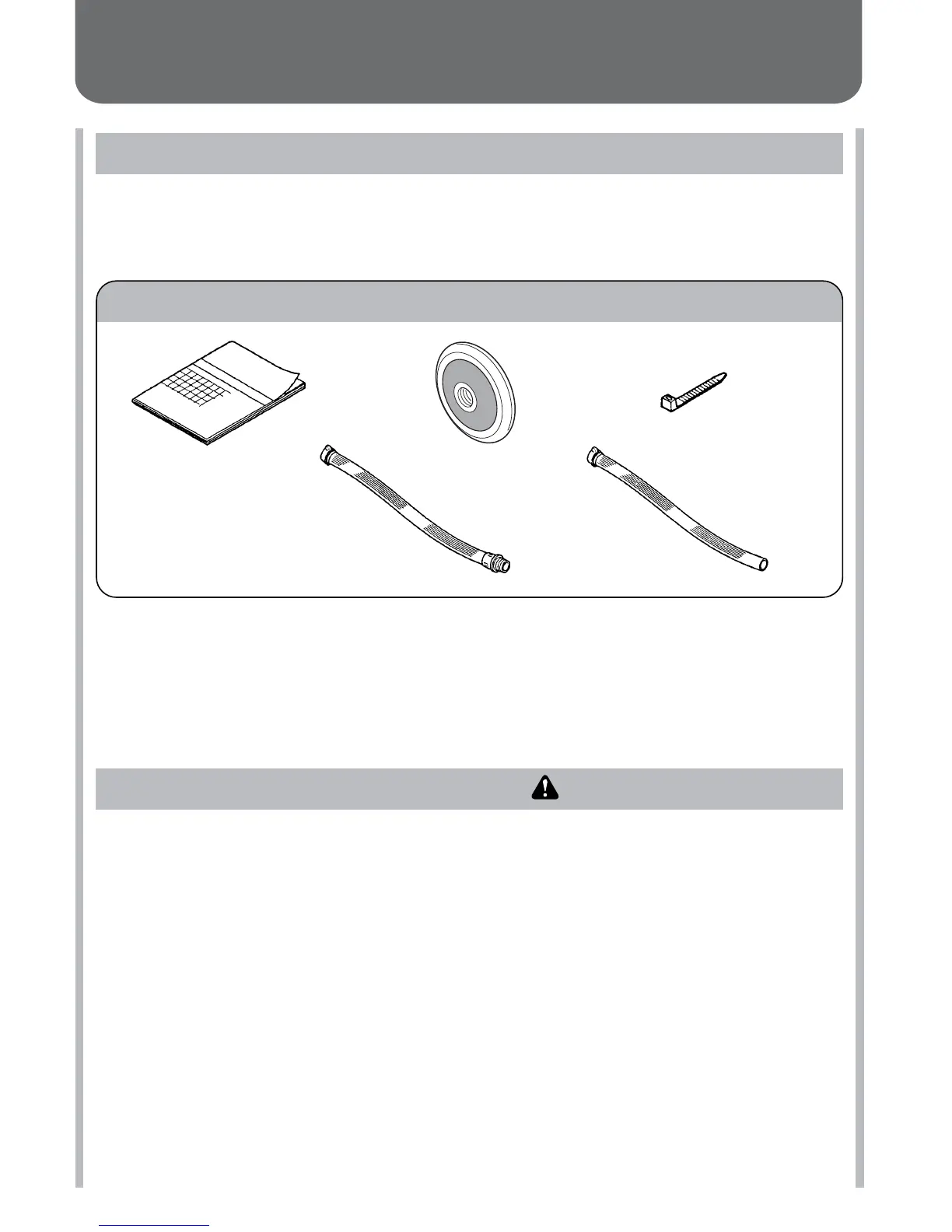

Standard Accessories
Instruction manual
Suction hose Bypass hose
Water intake
strainer
Band
