Marvel 6BARM - Dimensions for 3 BARM Glass Door; Rough In Opening Dimensions, for 3 BARM Glass Door

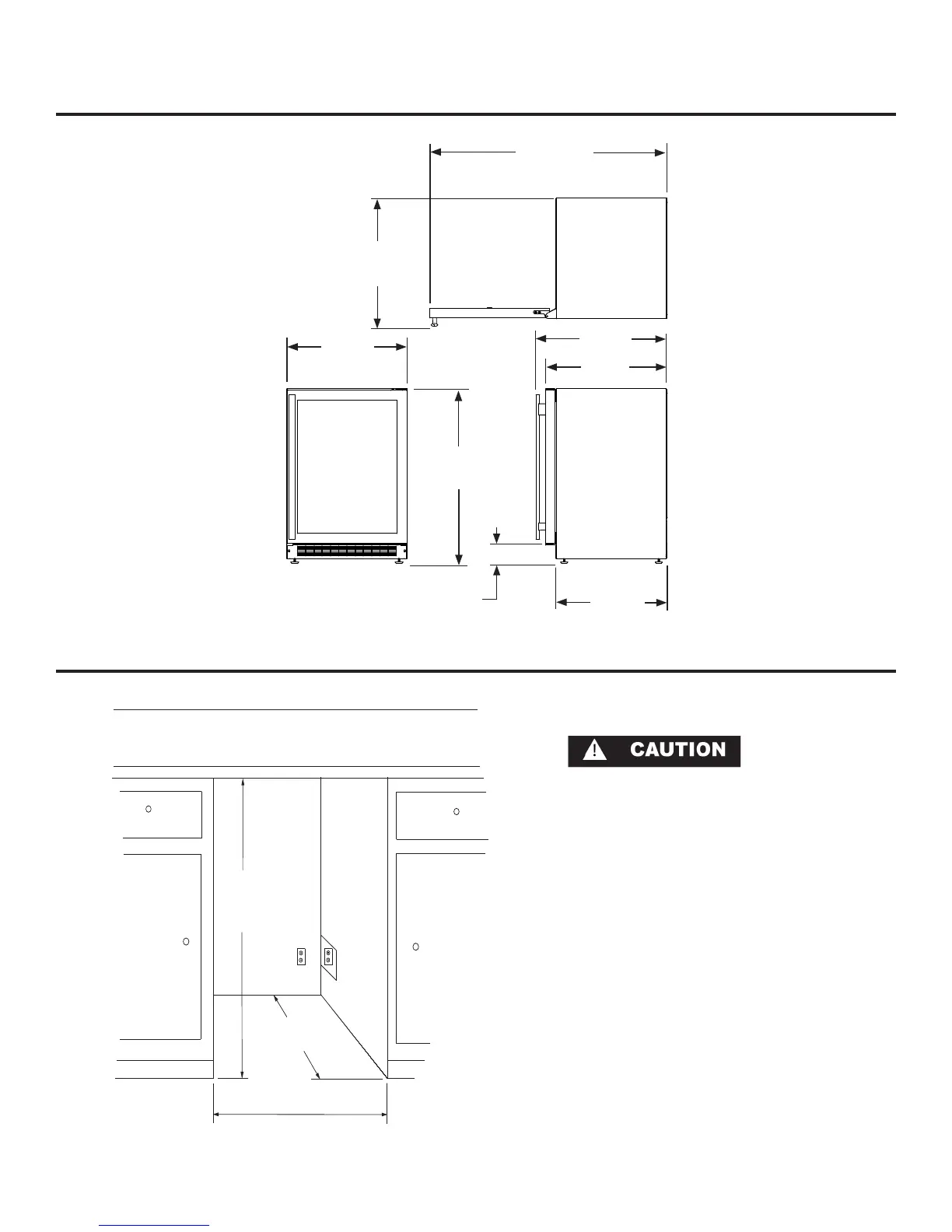

DIMENSIONS FOR 6BARM GLASS DOOR
ROUGH IN OPENING DIMENSIONS FOR 6BARM GLASS DOOR
24” (61 cm)
*24” (61 cm)
standard cabinet
depth
* Depth dimension may vary depending on
each individual installaon.
34-1/2”
(87.6 cm)
Electrical Requirements: 115 volts, 3.3 amps running max. A 15
amp dedicated circuit is required. A 3 prong grounded receptacle
is required.
Power outlet can be located in the back wall behind unit. Add 1”
to depth for thickness of plug, or recess outlet 1” into the wall.
Power outlet can also be installed in adjacent cabinetry with a
cutout for roung of power cord. Follow all local building codes
when installing electrical and unit.
Product weight = 130 lbs. (59.1 kg.)
23-7/8”
(60.66cm)
3” to 3-1/4”
(7.62 to 8.26cm)
6
22”
(55.88cm)
34-1/4” to 34-1/2”
(87 to 87.6cm)
24-1/16”
(61.1cm)
47”
(119.38cm)
25-27/32”
(65.6cm)
25-1/2”
(64.8cm)
