DOOR ALIGNMENT
8
Door Alignment Procedure
The door should be parallel to the sides and top of the refrig-
erator. If alignment is necessary the door may be adjusted by
loosening the 2 screws which secure the hinge adapter brackets
to the door and adjusng the door side to side. Use a 5/32” allen
wrench for this procedure. (See Figure 7 below).

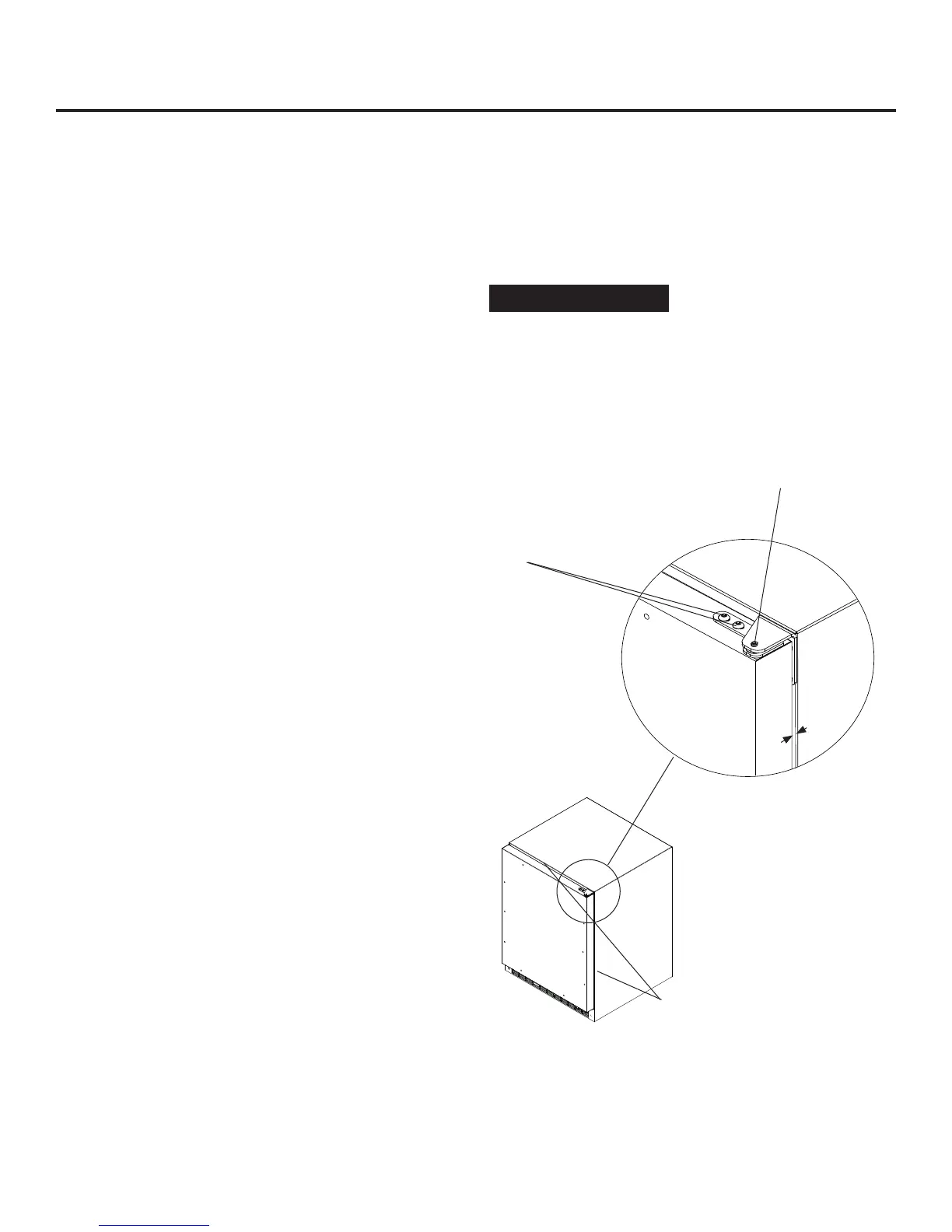

Figure 7
Hinge adapter screws loosen
these to adjust door, on the
top and boom of the door
Top hinge pin re-
move to remove
the door.
Door must be
parallel to top
and sides of
refrigerator
9/32”
(7.1mm)
NOTE: For door closer to work properly it is necessary to main-
tain a minimum space of 9/32” (7.1mm) between door and
cabinet ange as shown. This space can be adjusted by adjusng
the top and boom hinge adapter.
