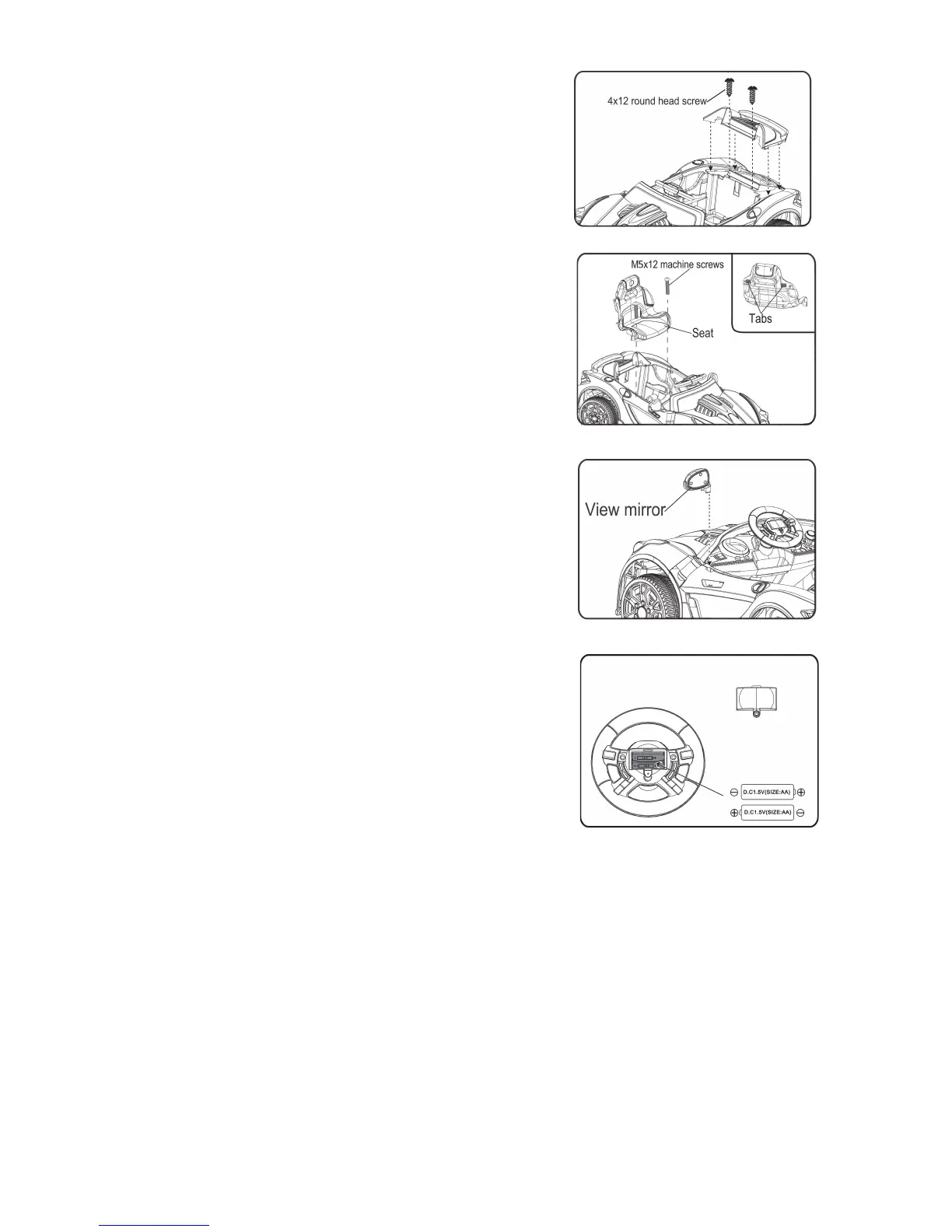

10. Seat Assembly
. Insert the tabs at the back of the seat into the slots
in the vehicle body.
. Tighten two M5x12 machine screws with a screwdriver.
. Fit the tabs at back of the tool box to the holes in
the vehicle body.
. Tighten two 4x12 round head screws with a
screwdriver.
9. Tool Box Assembly
. Insert the view mirror into the hole in front of the vehicle
body and push until you hear this click into place.
. Repeat for the other side.
11. View Mirrors Assembly
12. Install Steering Wheel Batteries
(Note: Batteries not included)
. Loosen the screw in the steering
wheel and remove the cover.
. Insert 2 x 1.5V size AA AM-3 or LR6
batteries as shown.
. Replace the cover and tighten the
screw to secure it in place.
