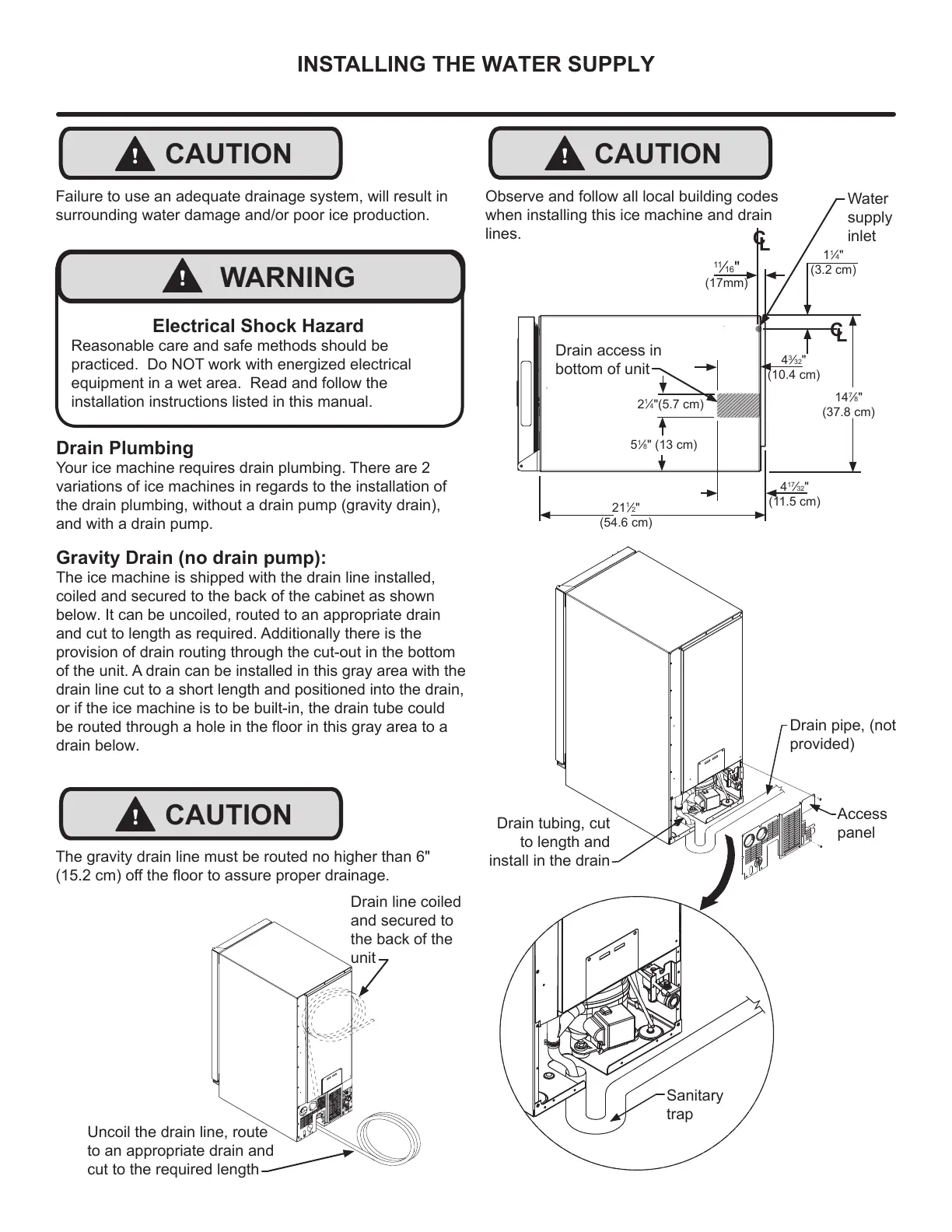

INSTALLING THE WATER SUPPLY
Access
panel
Drain pipe, (not
provided)
Drain tubing, cut
to length and
install in the drain
C
L
C
L
14
7
»8"
(37.8 cm)
11
»16"
(17mm)
1
1
»4"
(3.2 cm)
4
17
»32"
(11.5 cm)
21
1
»2"
(54.6 cm)
Drain line coiled
and secured to
the back of the
unit
Uncoil the drain line, route
to an appropriate drain and
FXWWRWKHUHTXLUHGOHQJWK
Electrical Shock Hazard
Reasonable care and safe methods should be
practiced. Do NOT work with energized electrical
HTXLSPHQWLQDZHWDUHD5HDGDQGIROORZWKH
installation instructions listed in this manual.
!
WARNING
!
CAUTION
)DLOXUHWRXVHDQDGHTXDWHGUDLQDJHV\VWHPZLOOUHVXOWLQ
surrounding water damage and/or poor ice production.
!
CAUTION
Observe and follow all local building codes
when installing this ice machine and drain
lines.
Water
supply
inlet
Drain access in
bottom of unit
4
3
»32"
(10.4 cm)
Sanitary
trap
2
1
»4"(5.7 cm)
5
1
»8" (13 cm)
Drain Plumbing
<RXULFHPDFKLQHUHTXLUHVGUDLQSOXPELQJ7KHUHDUH
variations of ice machines in regards to the installation of
the drain plumbing, without a drain pump (gravity drain),
and with a drain pump.
Gravity Drain (no drain pump):
The ice machine is shipped with the drain line installed,
coiled and secured to the back of the cabinet as shown
below. It can be uncoiled, routed to an appropriate GUDLQ
DQGFXWWROHQJWKDVUHTXLUHG$GGLWLRQDOO\WKHUHLVWKH
provision of drain routing through the cut-out in the bottom
of the unit. A drain can be installed in this gray area with the
drain line cut to a short length and positioned into the drain,
or if the ice machine is to be built-in, the drain tube could
be URXWHGWKURXJKDKROHLQWKHIORRULQWKLVJUD\DUHDWRD
GUDLQbelow.
The gravity drain line must be routed no higher than 6"
FPRIIWKHÀRRUWRDVVXUHSURSHUGUDLQDJH
!
CAUTION
7
