OVERLAY DOOR PANEL INSTALLATION - MA15C MODELS
Step 4: Cut overlay panel
Depending on the ice machine model cut the overlay panel
to the dimensions shown in Figure 41 for a right hand
hinged door or Figure 42 for a left hand hinged door. The
2 slots at the top and bottom are required for clearance of
the hinge pins and can be made with a router and 3/8" (9.5
mm) diameter router bit.
!
CAUTION
Weight of the overlay panel should not exceed 20 pounds
(9.1 kilograms).
14
5
⁄8"
(37.1 cm)
1
⁄4"
(6.4 mm)
deep
typical
1
⁄2" (12.7 mm)
to center of slot
typical
This side
to door
3
⁄8"
(9.5 mm)
typical
11
⁄16"
(17.5 mm)
long
typical
Bottom of door

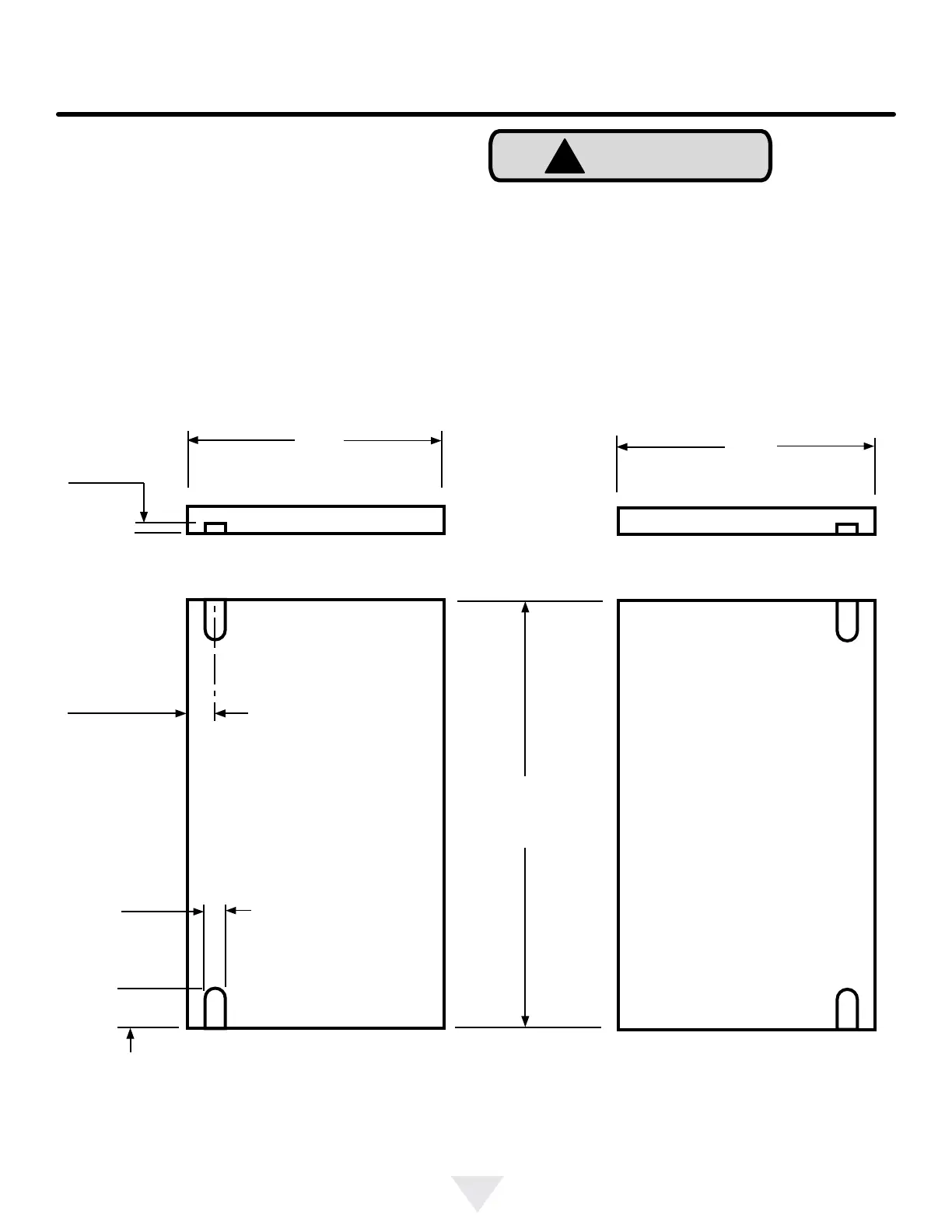

Figure 41
Panel dimensions for
a right hand hinged door
14
5
⁄8"
(37.1 cm)
This side to door
This side
to door
27
5
⁄16"
(69.4 cm)
Bottom of door
Figure 42
Panel dimensions for
a left hand hinged door
