Marvel MP15C Series - Drain Pump Removal

33

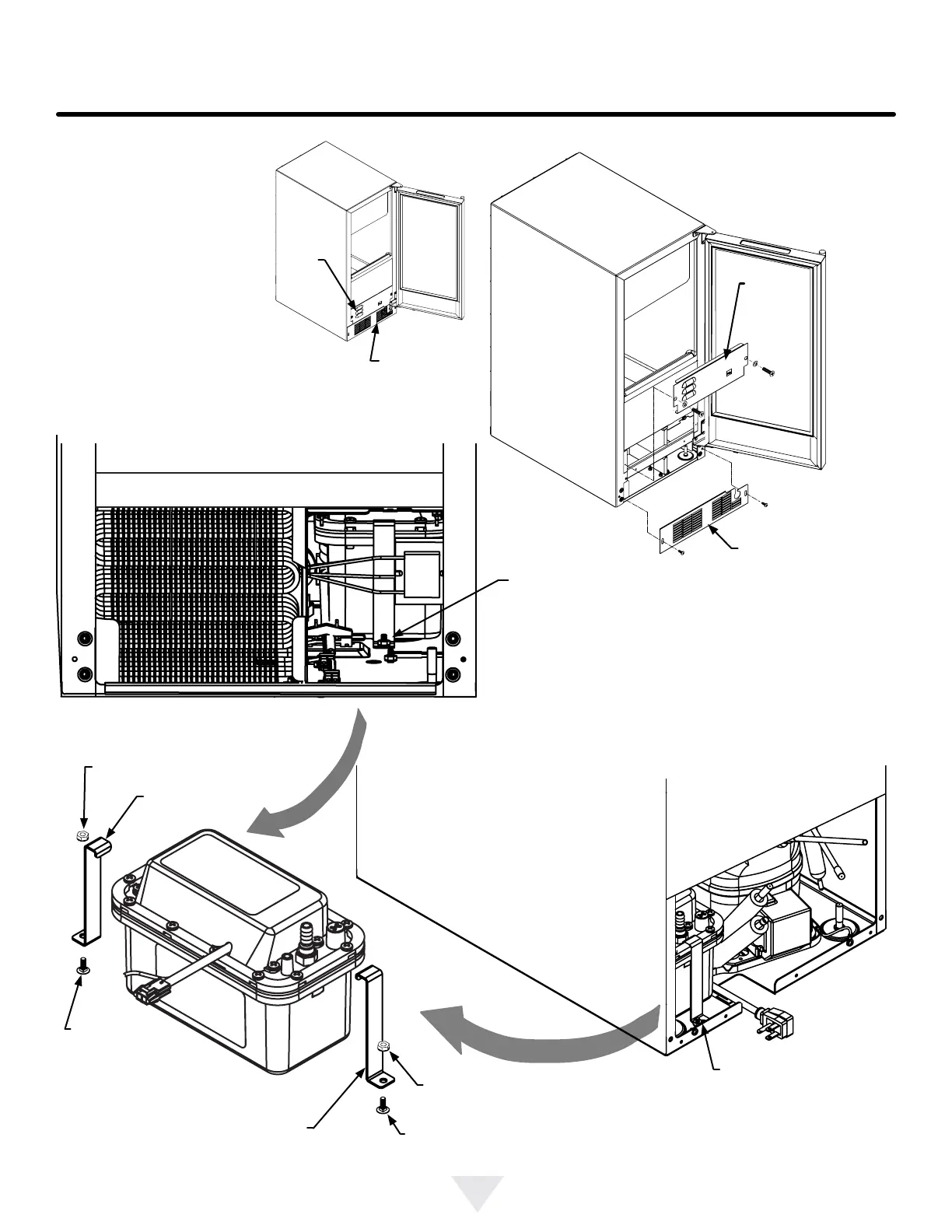

DRAIN PUMP REMOVAL INSTRUCTIONS
Rear of ice machine
Front of ice machine
Remove the
hex nut on
front drain
pump bracket
with the
3
⁄8"
socket then
remove the
bracket.
Remove the hex nut on
rear drain pump bracket
with the
3
⁄8" socket then
remove the bracket.
carriage bolt
carriage bolt
#10-24 hex nut
#10-24 hex nut
Rear drain
pump bracket
Front drain
pump bracket
Figure 53
Figure 53a
Figure 54
Figure 52
Figure 52a
Toe grille
Toe grille
Front
panel
Front
panel
