Masibus 408-M - Parameter Settings and Operation; Key Functions; Display and Input Settings; Calibration and Passwords

Doc.Ref. No. m61C/QG/501 Issue No.:00 Page 2 of 2
Decrement
Key
 Decrement the
Value of any
Parameter in edit
mode.
 Shuffle to previous
parameter in the
Sub Menu.
 Shows ambient
value for T/C
Input in RUN
mode.
Enter Key
(Menu Key)
 It is used to enter
in the sub menu.
 It’s used to enter
in the edit mode.
 It is also used to
save the
parameters to
nonvolatile
memory, when
user setting a
proper data by
Increment and
decrement key for
parameter
configuration.
PV(Process
Value)Display
PV
 4 digit 0.80 inch
RED Display
 Display process
value.
 Display parameter
name when user
set parameter.
 Display Parameter
Value when in Edit
mode.
 Display error
message when an
error occurs.
PARAMETER SETTINGS
Parameter
(PV display)
Setting Name
& Description
Default
Value
Symbol
Name
INPT
(inpt)
INPUT
Type
Set PV Input
Type
tC j / tC t / tC
K / tC r / tC s
/ rtd1 / rtd.1 /
0-5v / 1-5v / 0-
10
(ReferTable1.1)
RTD.1
ZERO
(zero)
Zero
Automatically
change to the
Input Lower
Range with
changing of
Input Type
(ReferTable1.1)
Can be set to
any value within
the Input Range
& less the SPAN
Value.
-199.9
SPAN
(spaN)
Span
Automatically
change to the
Input Higher
Range with
changing of
Input Type
(ReferTable1.1)
Can be set to
any value within
the Input Range
& greater the
ZERO Value.
850
*DP
(dp)
Decimal
Point
Set position of
Decimal Point
on Display.
0/ 0.0/ 0.00/
0.000
0:0
1:0.0
2:0.00
3:0.000
0
BRHT
(brHt)
Brightn-
ess
Adjust
Brightness of
the 7-segment
Display.
10 to 100
50
PASS
(pass)
Password
Set Device
Password
0 to 99
1
VERS
(vers)
Version
Shows the
Version of the
Current
Firmware
-
*parameter shows only if input type is linear.
Cal Mode
(PV display)
Setting Name &
Description
Symbol
Name
**AMB
(Amb)
Ambient
Ambient Adjustment
ZERO
(zero)
Calibration
Zero
Calibration Zero for PV
Input(PV/SV Display :
PV)
SPAN
(spaN)
Calibration
Span
Calibration Span for PV
Input(PV/SV Display :
PV)
**parameter showsonly if input type is TC.

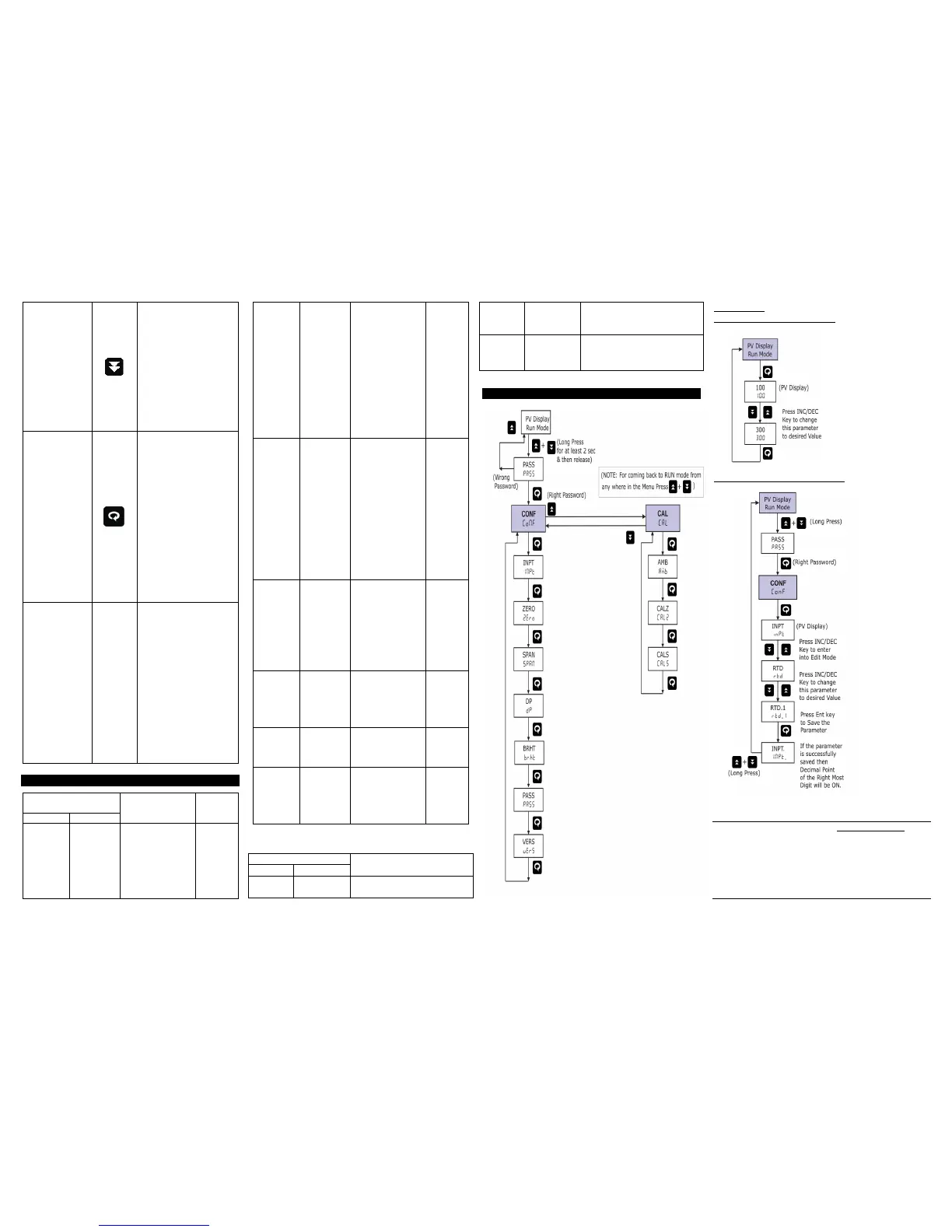

MENU LAYOUT FOR 408-M
Examples:
How to change Set Point
How to change Input Type
For operation manual please visit www.masibus.com
Specifications are subject to change without notice due to
Continuous improvements.
