Masport F43/F28 Freestanding Gas Heater
INSTALLATION
LOG INSTALLATION - F28
WARNING: Dangerous operating conditions may occur if
these logs are not positioned in their approved locations.
Read the instructions below carefully and refer to the
diagrams. If logs are broken do not use the unit until they
are replaced. Broken logs can interfere with the pilot and
burner operation.
The gas log kit contains the following:
a) Front Right Log - Part #902-209
b) Front Left Log - Part # 902-210
c) Rear log - Part # 902-211
d) Embers - Part # 902-151 (1 bag)
(Part # 560-933 for the set of three logs)
1) Remove the logs from the box and carefully unwrap
them. The logs are fragile, handle with care - DO NOT
FORCE into position.
2) Place the rear log , carefully sliding it down onto the pins,
with the flat side of the log facing the back of the unit. See
diagram 1.
Note: Do not force
logs down.
4) Place the right front log, carefully sliding it down onto the
right pins of the front burner. See diagram 3.
3) Place the left front log, carefully sliding it down onto the
left pins of the front burner. See diagram 2.

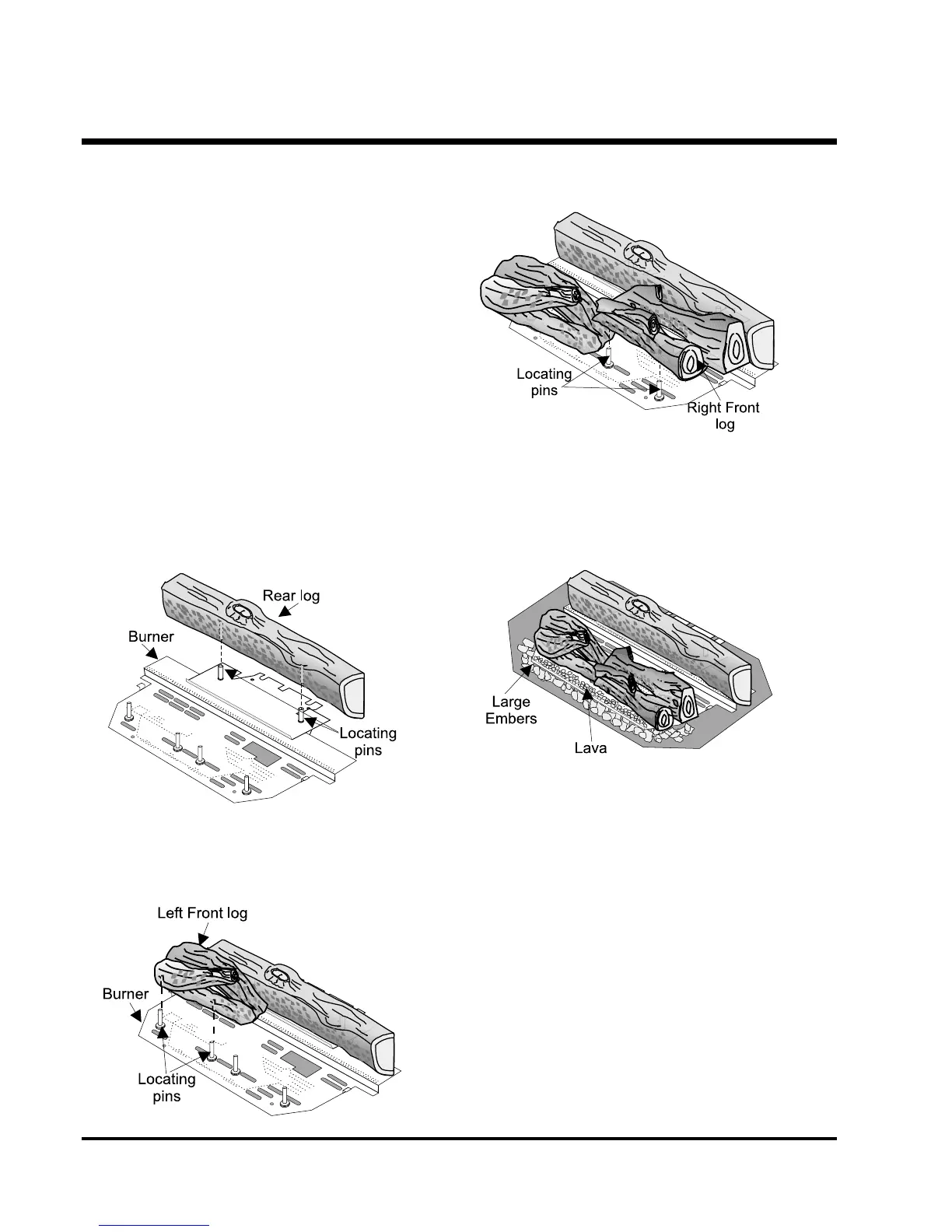

Diagram 3
Diagram 4
Diagram 1
Diagram 2
5) Distribute the embers on the base of the firebox on the left
and right side (see Diagram 4).
