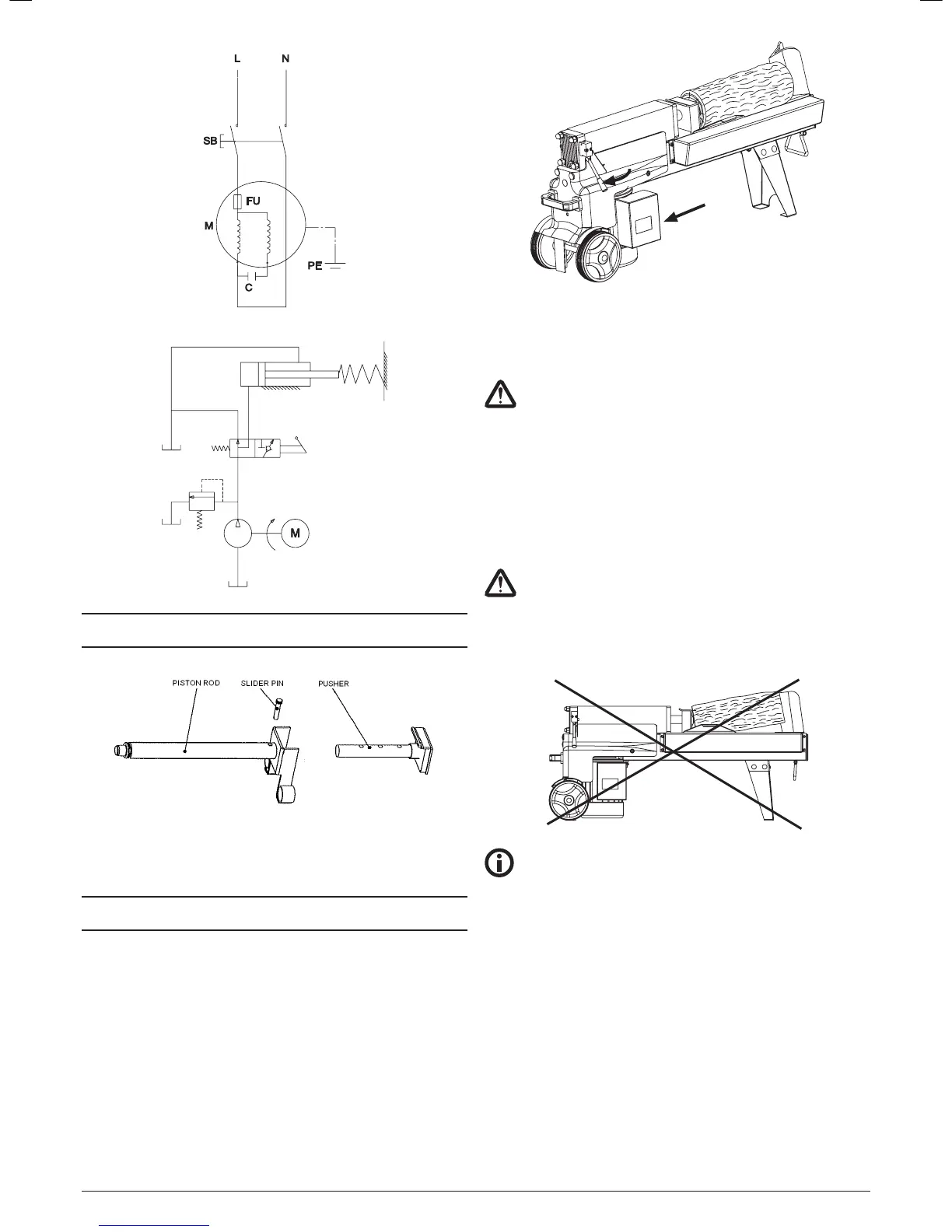

WIRING DIAGRAM
PLUMBING DIAGRAM
Pusher Adjustment
The pusher has three holes for adjustment. To extend or retract
the pusher, remove the slider pin and align the required hole on the
pusher with the hole in the piston rod and replace the slider pin.
Operation
This log splitter is equipped with “ZHB” control system that requires
to be operated by both hands of the user - Left hand controls the
hydraulic control lever while right hand controls the pushbutton
switch. The log splitter will freeze upon absence of either hand. Only
after both hands release the controls, the log pusher starts to return
backward to the starting position.
A trigger type lock-out device is adopted to avoid accidental
Hydraulic Control Lever pushdown. To operate the Hydraulic
Control Lever, draw the Trigger backward with the index finger
before pushing the Hydraulic Control Lever forward.
Warning!
Never force the log splitter for more than 5 seconds by keeping
pressure on it to split excessively hard wood.
After this time interval, the oil under pressure will be overheated
and the machine could be damaged. For such extremely hard log,
rotate it by 90° to see whether it can be split in a different direction.
In any case, if you are not able to split the log, this means that its
hardness exceeds the capacity of the machine and thus that log
should be discarded to protect the log splitter.
Warning!
Always set logs firmly on the log retaining plates and work table.
Make sure logs will not twist, rock or slip while being split. Do not
force the blade by splitting the log on the upper part. This will break
the blade or damage the machine.
Important!
Break log in the direction of its growing grain. Do not place log
across the log splitter for splitting. It may be dangerous and may
seriously damage the machine. Do not attempt to split two pieces
of logs at the same time. One of them may fly up and hit you.
