Masport Mackenzie R10000 User Manual

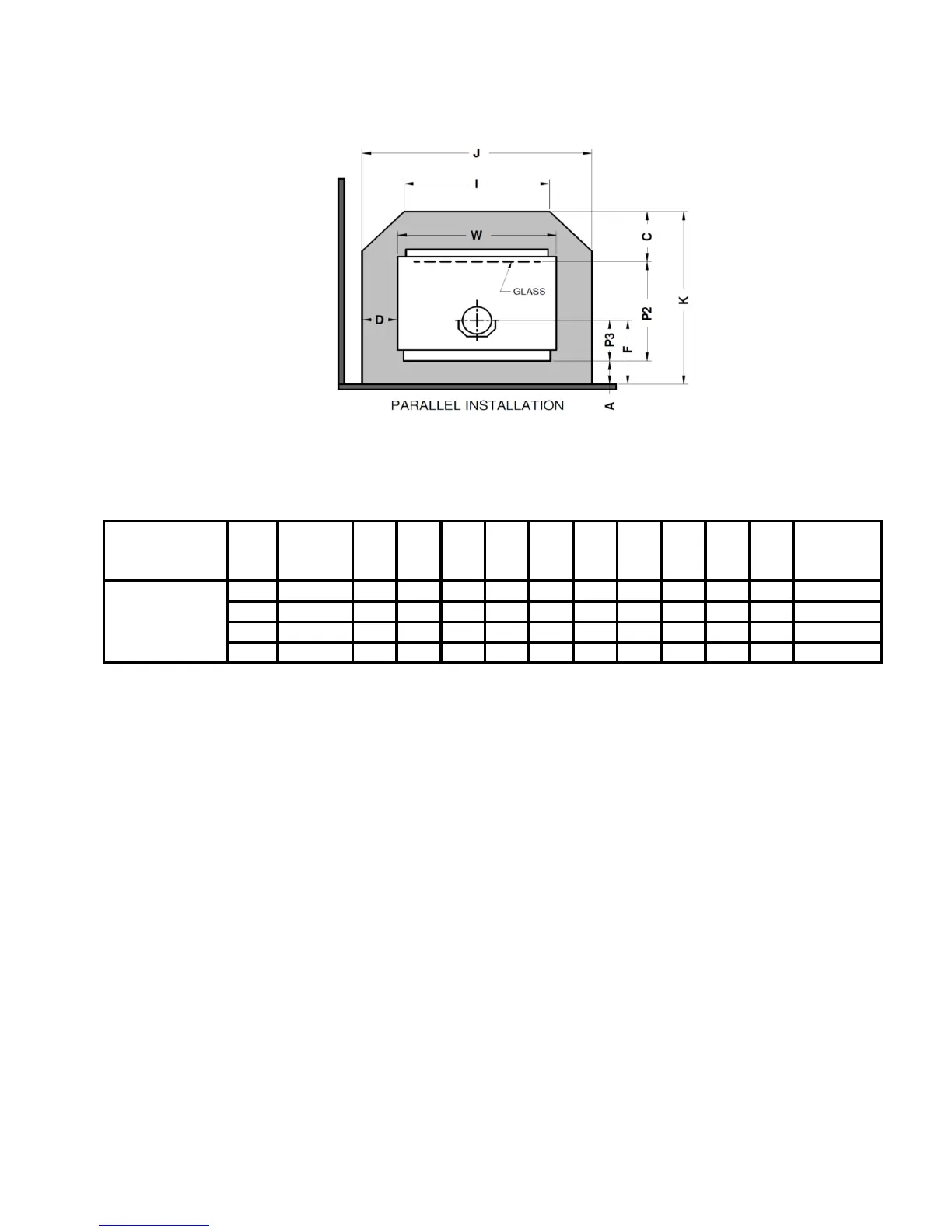

PARALLEL INSTALLATION
MINIMUM FLOOR PROTECTOR DIMENSIONS IN mm
# DIMENSIONS IN THE TABLE ARE VALID ONLY WHEN THE FIRE IS EXACTLY AT ITS MINIMUM
ALLOWABLE WALL CLEARANCE.
Flue
Shield
Floor
Protector
height
A# C# D F I J K# P2 P3 W
RDS ANY 150 300 87 350 664 964 1070 620 200 790
AFP = ASH FLOOR PROTECTOR
# Valid only when the fire is exactly at its minimum allowable wall clearance.
Ø for minimum constructional requirements see general installation instructions.
FLOOR PROTECTOR (Hearth) REQUIREMENTS
NEW ZEALAND
RDS = MASPORT DOUBLE SKIN SHIELD 900mm HIGH + TOP DIVERTER PLATE + 500x500 Ceiling Plate
MODEL
Mackenzie R10000
(SW)(Dry & Wet)
Floor Protector
Type Ø
AFP
Page 2 of 5
