IV. Troubleshoot 2--- Kneading/Tapping motor not work
▲ Analysis reasons why Kneading/Tapping motor not work
1. Motor failure
2. Wire harness not connect well
3. Main board failure
▲ Specific Troubleshoot Analysis and elimination
1. Motor failure Analysis and elimination
Because of motor coil open circuit led to even the driver Board under a DC24V power supply , the motor still not functioning ，Can use
form 1 as reference, measure the motor resistance if between 30～80Ω ，if not between 30～80Ω , need change motor.

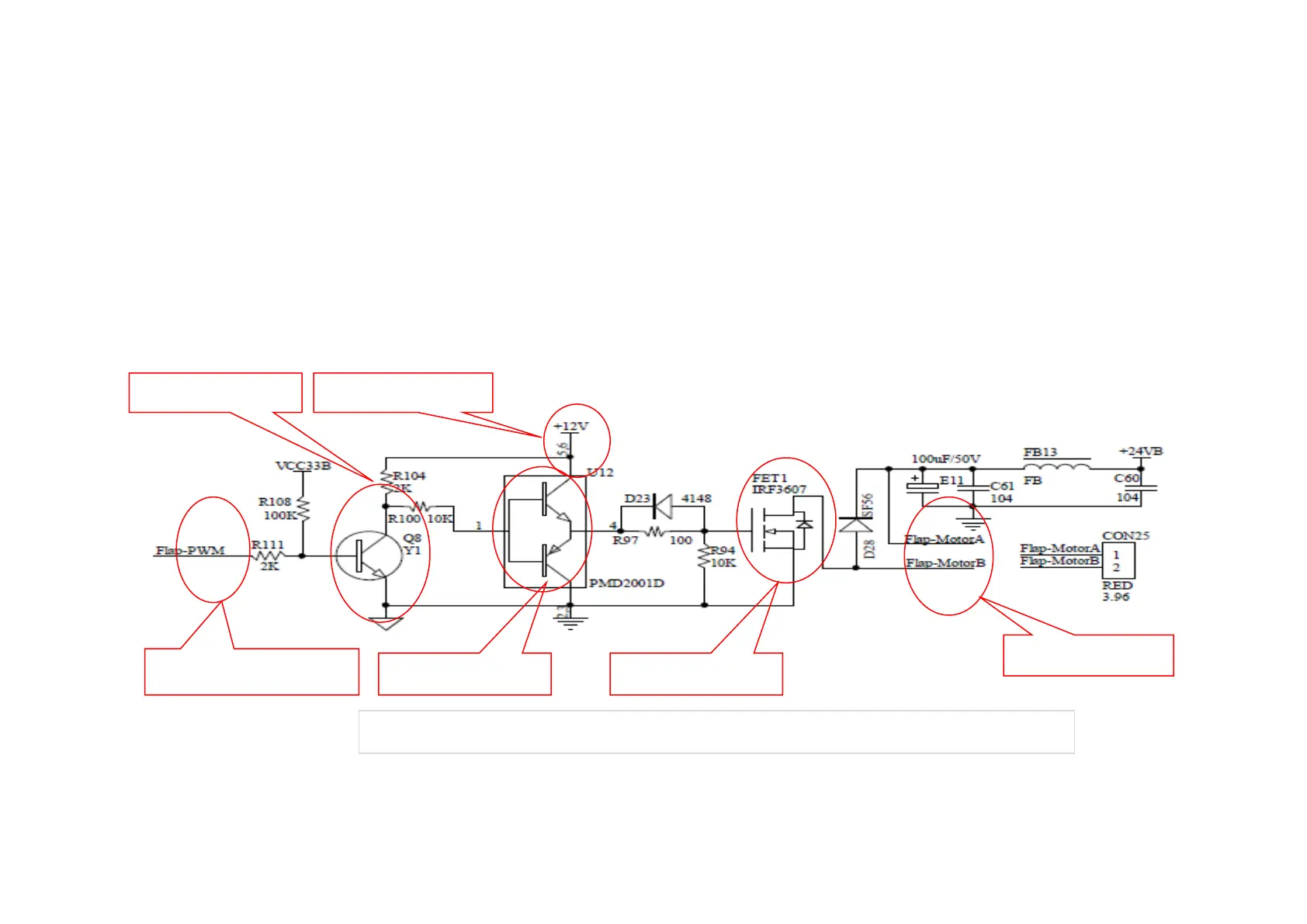

control signal of chip SMT132F103
Drive triode S8050
DC12V power of drive output
IRF3607 field-effect tube
drive power of DC24V motor
Drive PMD2001D
Picture 11 Circuit diagram of drive power on kneading/flapping motor
