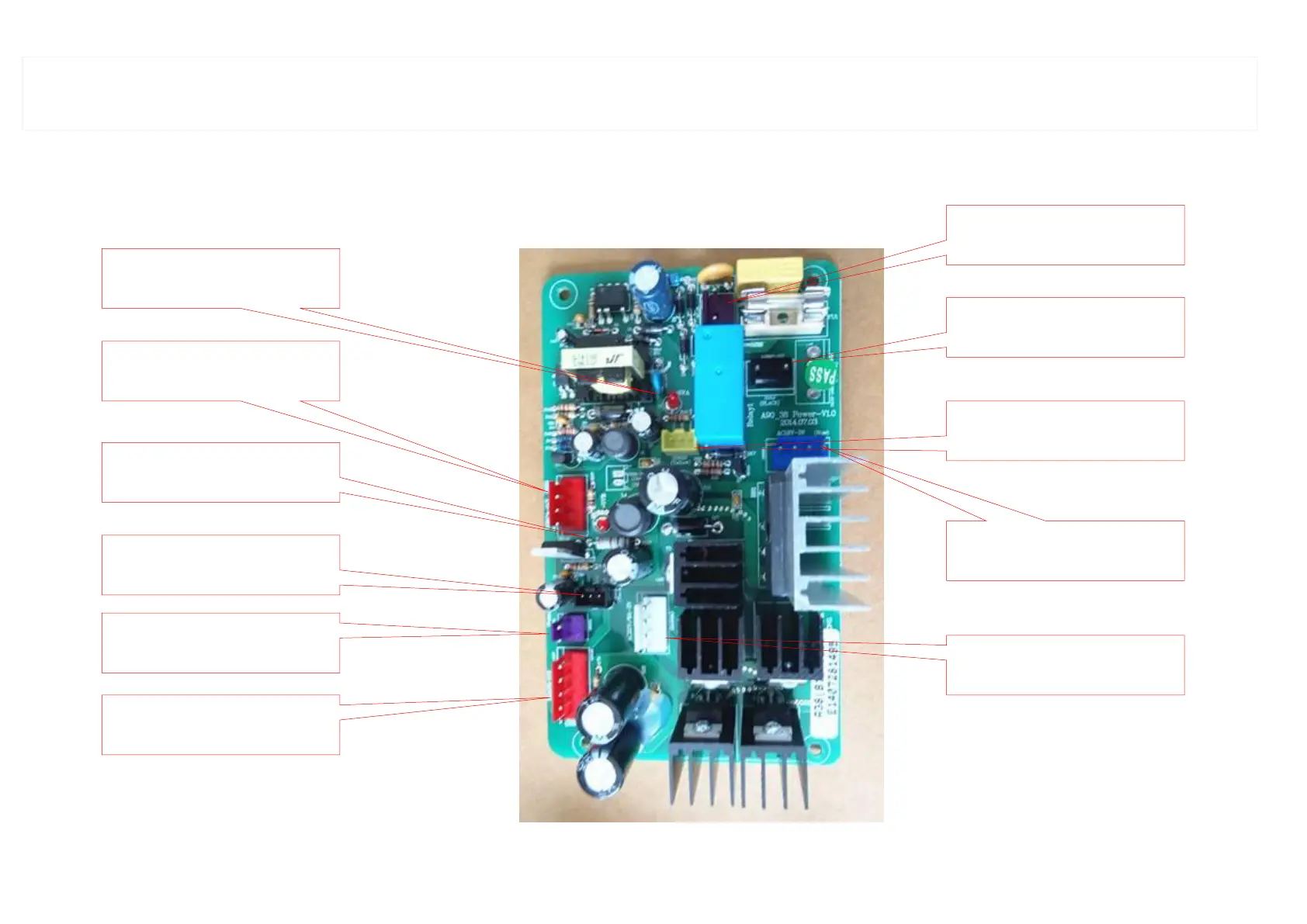

III. Distribution and functions of the Power board & Main board pluggable unit (Figure 4)
CON26：Transfer to main
PCB board 24VA/+5VB
CON28： Armrest LED light
12V/5V power
CON30：Transfer to main
PCB board AC22V
CON35：Transfer to main
PCB board 24A/12V
CON32: 2 groups of AC22V
input to transformer
CON23: Input AC19V to
transformer
CON22: +5VA and start signal switching
power supply to Main PCB board
CON11 ： AC220V power
input
CON16: AC220V transfer to
transformer
L 1 DC + 5VA Power
indicator
L 3 DC + 5VB Power
indicator
