CNC:
Index Service Part # File Name
Description
Qty
1 A00-0013 TEKT-0009 5MM Bushing 5
2 A00-0014 TEKT-0092 Thick Bushing 3
3 A00-0019 STEP-BOLT1-4X1 Step Bolt, 1/4" x 1", MB 1
4 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 1
5 A00-0033 315-080 Rear Wiper Shaft Grommet 1
6 A00-0043 WWF-MOTOR WWF Wiper Motor, 1" Shaft 1
7 A00-0076 TEKT-0026 1/4" Panel Nut 3
8 A00-0108 TEKT-ASM-037 WWF, Adjustable Radial Arm, 15" to 19" 1
9 A00-0109 302-1160_BLADE Wiper Blade, 16", Narrow Saddle 1
10 A00-0119 WASHER_1-4 Washer, Flat, 1/4" 3
11 A00-0385 TEKT-0190 Knob, Knurled, 1/4" x 1 7/16" 3
12 M04-0005 MFGC1720-050 Rear Window Glass 1
13 M04-0009 MFGC1720-066- Rear Window Seal 1

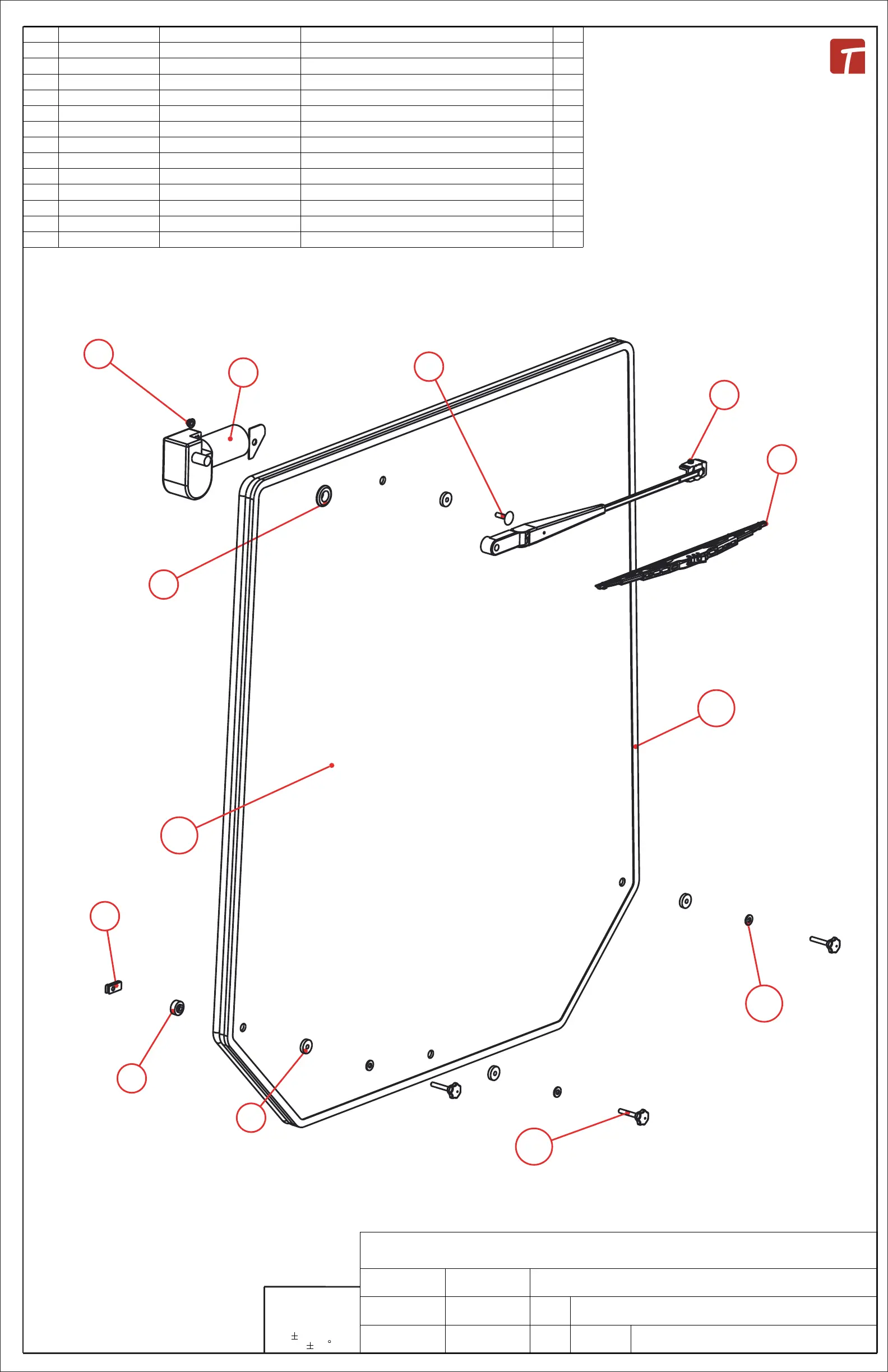

1 req Rear Window Assembly
Daryl Furkalo
2019-06-12 Imp.
MFGC1720-ASM-13_OP
B
SCALE 0.200
1
2
3
4
5
6
7
8
9
10
12
13
11
