Notice of Confidentiality
This material is property of Tektite Manufacturing
Inc and is not to be used by the recipient for any
purpose other than the purpose for which it was
transmitted. The material remains the property of
Tektite and shall be returned upon request. The
material may not be reproduced or disclosed to third
parties without the written consent of Tektite.
Tolerances:
Unless otherwise
specified
X.X =
1/16"
Angular =
1.0
Drawn By:
Checked By:
Size:
File Name:
Units:
Date:
Date:
Req'd:
Description:
Tektite Manufacturing Inc.
24157 Hwy 3, Box 639, Winkler MB, R6W 4A8, Canada
CNC:
Index Service Part # File Name
Description
Qty
1 A00-0001 DLP-HANDLE Outside Push Button Handle 1
2 A00-0003 RIGHT-LATCH Suicide Door Right Latch 1
3 A00-0013 TEKT-0009 5MM Bushing 15
4 A00-0018 STEP-BOLT1-4X1-1-2 Step Bolt, 1/4" x 1 1/2", MB 3
5 A00-0020 STEP-BOLT1-4X1-1-4 Step Bolt, 1/4" x 1 1/4", MB 4
6 A00-0021 FLANGE-NUT-1-4 Flange Nut, 1/4", YD 9
7 A00-0040 REID-RST-160-RST-163 Grab Handle 1
8 A00-0041 TEKTITE-DECAL Tektite Cab Decal - Solid White 1
9 A00-0042 TEKT-ASM-001R Right Cab Door Hinge Weldment, Upper 1
10 A00-0118 FLANGE_BOLT_1-4X1 Flange Bolt, 1/4" x 1", YD 2
11 A00-0177 TEKT-0068 Handle Washer Spacer 1
12 A00-0229 TEKT-ASM-029R Right Door Hinge Weldment, Lower 1
13 A00-0295 FLANGE_BOLT_M6X30 Flange Bolt, M6x30, YD 1
14 M04-0001 MFGC1720-026 Door Glass 1
15 M04-0006 MFGC1720-ASM-10R Right Door Frame Weldment 1
16 M04-0007 MFGC1720-063R Door Seal 1

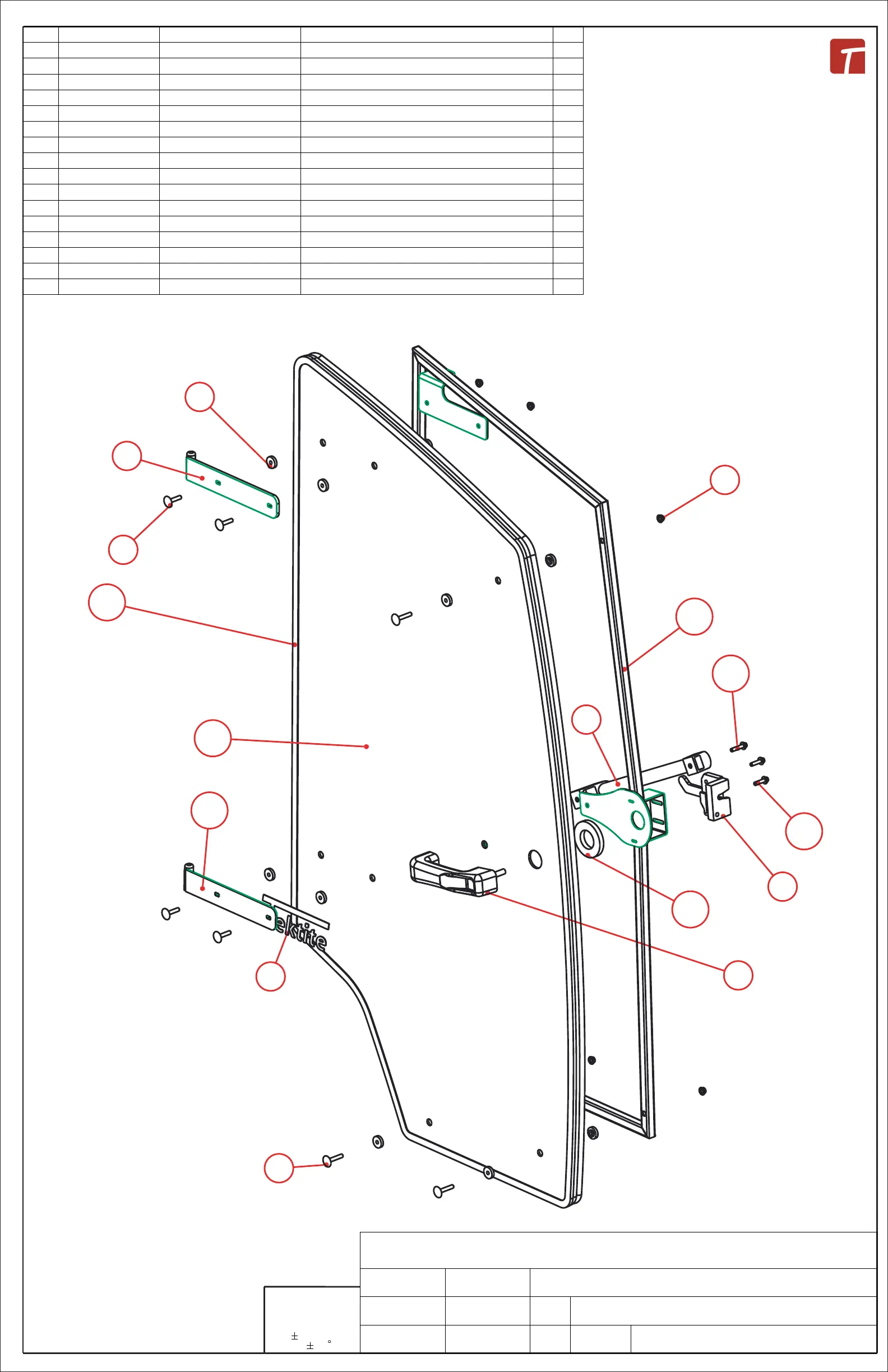

1 req Right Door Assembly
Daryl Furkalo
2017-11-07 Imp.
MFGC1720-ASM-07_RT_OP
B
M04-0014
SCALE 0.170
1
2
3
16
14
15
13
12
11
10
9
8
7
6
5
4
