58
MAINTENANCE
CVT System(1100cc)
Usage and maintenance
When assemble CVT and gearbox, if the CVT driving plate is not accord with the center of
driven plate will serious effect the operating life of belt and performance of vehicle.
So after pulley assembly, you should use exclusive check tool to check whether the CVT
driving plate is accord with the center of driven plate.（The distance between driving plate and
driven plate is 39.8±0.15 checked by exclusive check tool for CVT assembly）refer to
picture3-1-1:

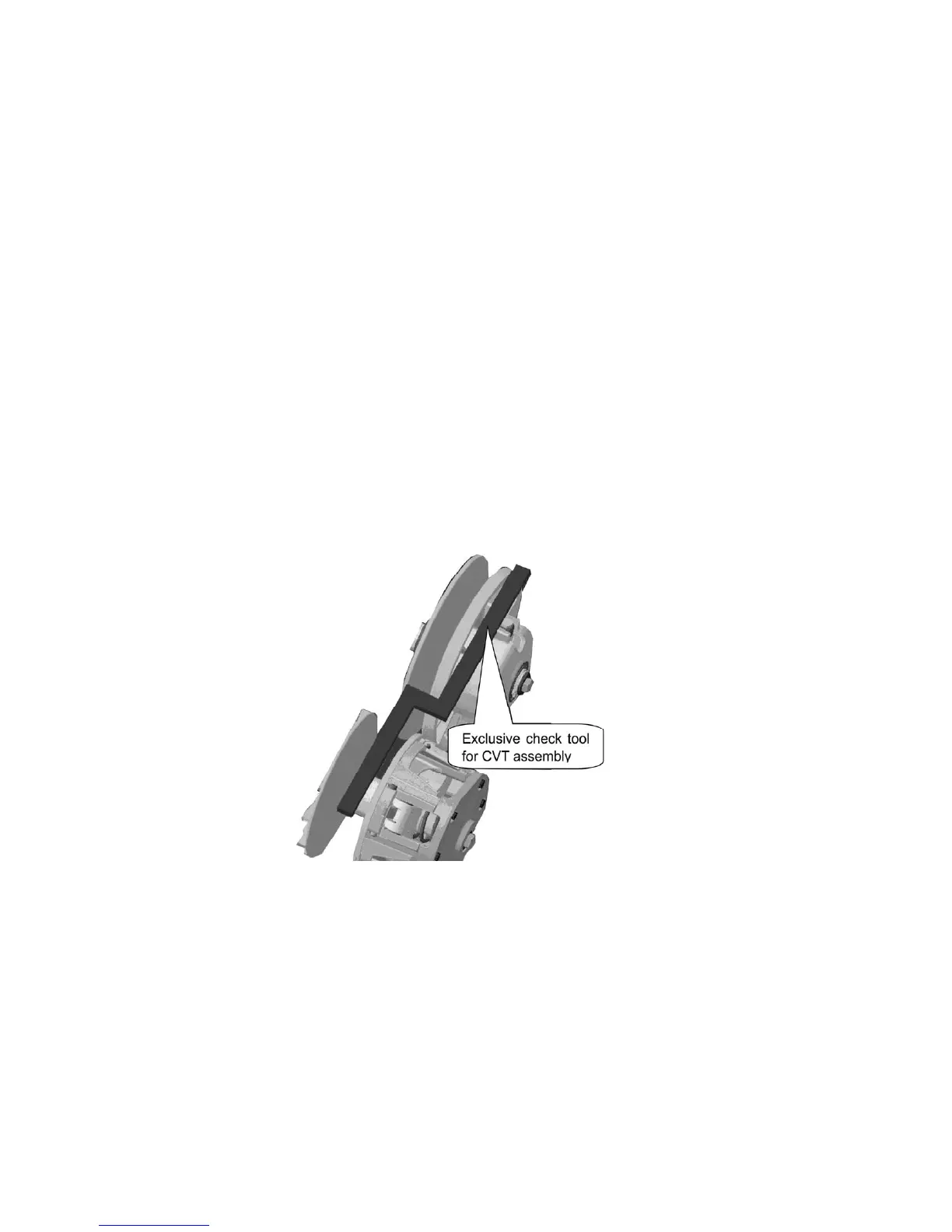

（Picture 3-1-1）
