66
MAINTENANCE

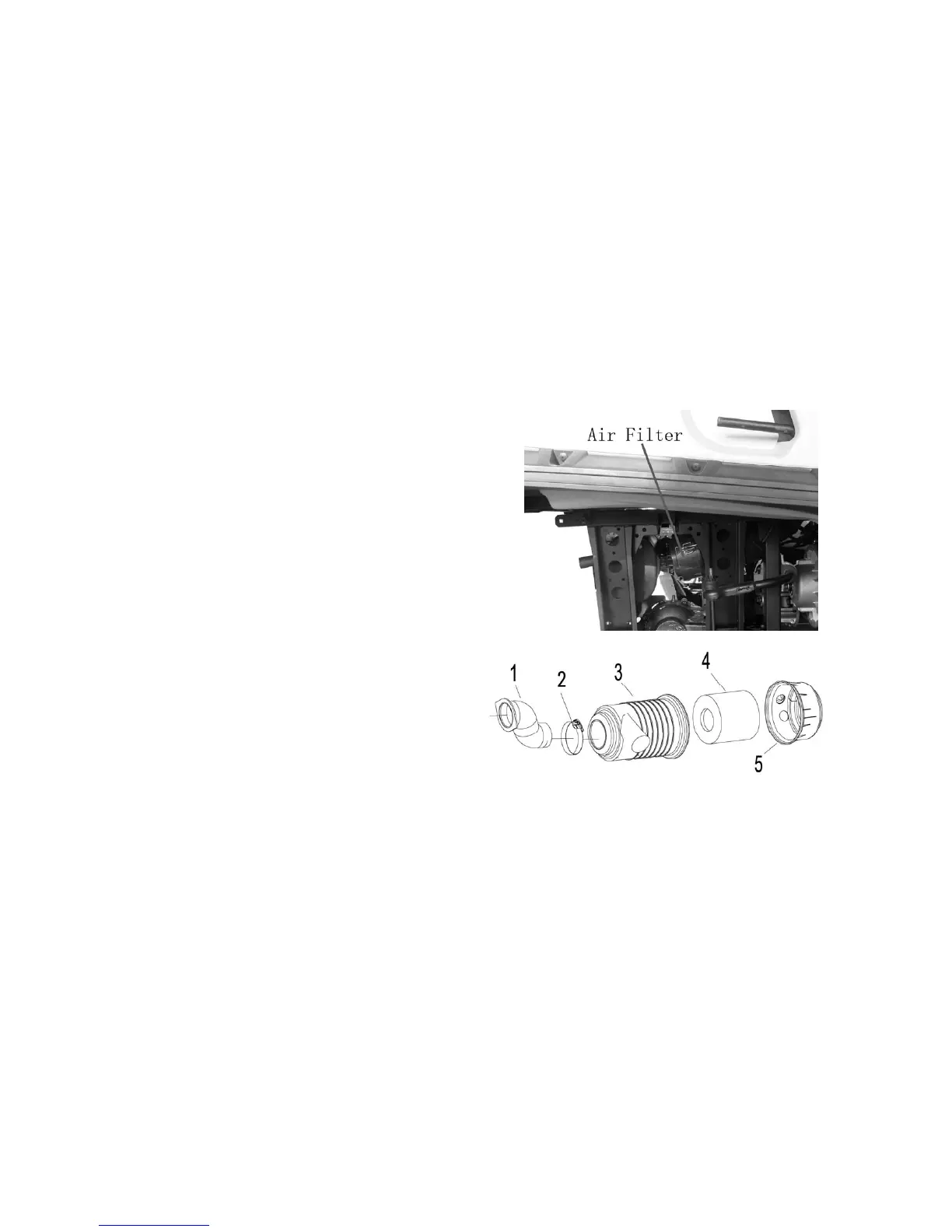

Filter Systems 1100cc:
Air Filter
Always change the air filter at the
intervals outlined in the Periodic
Maintenance Chart beginning on
page 49.
1. Loose the air filter fixed card
and remove the tail cover 5 .
2.Remove the filter element of the air filter 4
from the primary cover.
4.Wash the filter element in warm soapy
water, then rinse and let dry. If the filter
element is damaged, install a new filter.
1.
JOINT,AIR CLEANER 2. CIRCLIP
3.
PRIMARY COVER 4. FILTER ELEMENT
5. TAIL COVER
