Massimo MSU 1100 - Cooling System

60
MAINTENANCE
CVT System(1100cc)
Usage and maintenance
Belt Assembly：After the belt assembly is finished, the belt tension should be appropriate. Too
loose or too tight will obvious effect the operating life of belt. So the verticality of loose edge

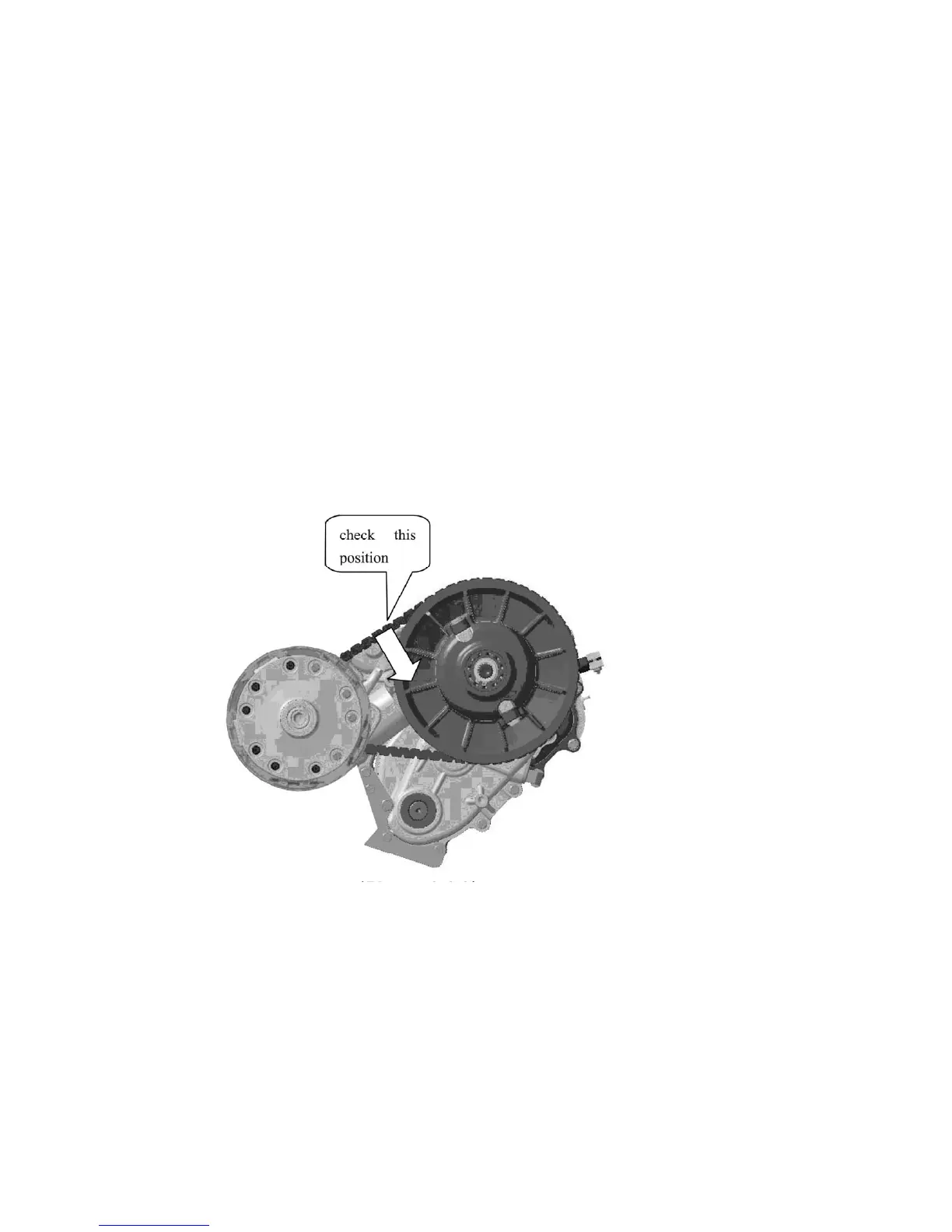

should be checked after the belt assembly is finished, the drooping height is 10~~15mm, refer
to picture 3-1-2
